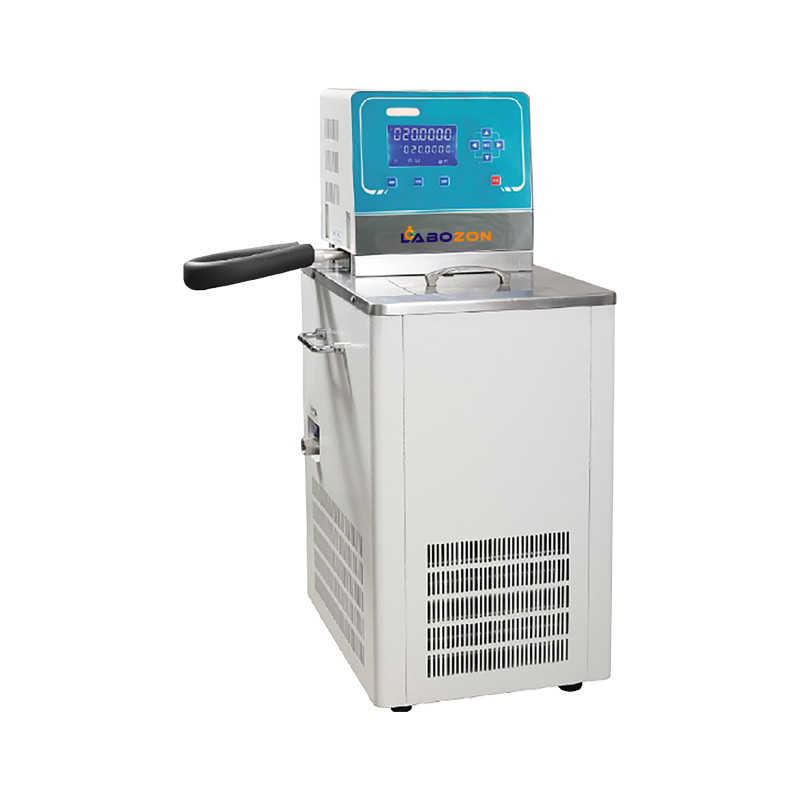

Constant Temperature Water Bath LZ-CWB-A805A Catalog

Constant Temperature Water Bath LZ-CWB-A805A digitally controlled constant temperature water baths offer consistent and reliable performance with 50 L capacity range. A choice of 3 different temperature range RT to 100 ° C (water), RT to 200 ° C (oil), RT to 300 ° C (oil) to provide accurate and precise thermostatic process. Equipped with non-heat centrifugal circulating pump. Provides precise & constant temperature control and allow for the applications in the metrology, electronics, chemical, environmental protection, research & medicine department.

Capacity	50 L
Temperature Range	RT~300
Tem Uniformity (Hori/Vertical)	±0.005 to ±0.01℃
Drain	Yes
Digital Resolution	0.0001°C
Temperature Fluctuation	±0.005 to ±0.01°C
Display	LCD
Sensor	PT100
Interface	RS232 or RS485

• Temperature range RT to 100 ° C (water), RT to 200 ° C (oil), RT to 300 ° C (oil)
• Built with PID automatic temperature control program along with PT100 temperature sensor AAA
• Intuitive large LCD screen and available capacity range 50 L
• Designed with non-heat centrifugal circulating pump to avoid the traditional water pump from affecting the temperature field
• Internal circulation system designed porous U-shaped recirculation
• Adopts anti-aging electrostatic spray technology for body shell with inner liner and the countertop made of anti-corrosion resistance S304 brushed stainless steel
• Safety features include power failure protection, upper and lower limit temperature alarm setting, Low water level protection and alarm, Temperature out of control protection and alarm, heating device has low water level anti-dry burning and explosion-proof function

Optional RS232 or RS485 with ModbusRTU communication
Magnetic stirring system
Body built-in cooling coil
Adjustable immersion platform
Horizontal shape

This thermostatic and high-quality water baths that facilitate regular temperature applications in the metrology, electronics, chemical, environmental protection, medicine, energy, oil refining, metallurgy, light industry, military and other research departments.
