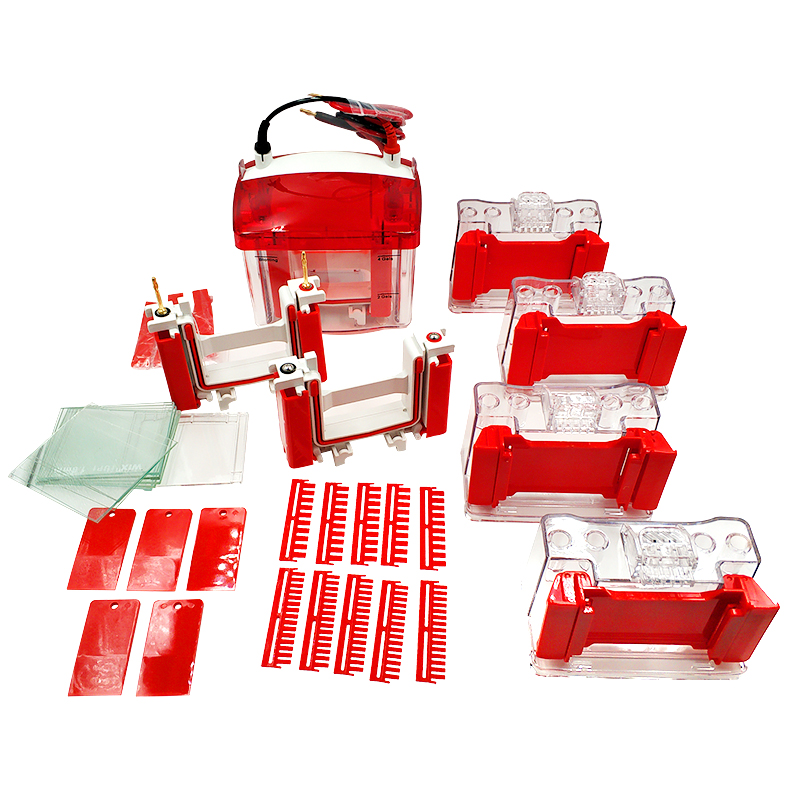

Mini Vertical Electrophoresis LZ-VES-A102 Catalog

Mini Vertical Electrophoresis LZ-VES-A102 versatile and simple, suitable for protein electrophoresis. Design with sliding wedge of side fastener of electrophoresis core presses the short glass onto the sealing gasket tightly to elude liquid leakage. Equipped with cam gel-making frame ensures the accurate aligning. Come with easy to read the gauged glass plate and comb for visible marks.

Gel Number	1-2 Gels
Gel Thickness	1.0 mm (standard); 0.75 mm and 1.5 mm
Glass Plate Size	100×83 mm
Gel Size	83×73 mm
Comb	1 mm: 10 and 15 wells (standard); 0.75 mm: 10 and 15 wells; 1.5 mm: 10 and 15 wells
Platinum Electrode	0.25 mm
Dimension	180×130×160 mm

• Suitable for bottom gel-casting frame held flat glass to stop the glass plate from sliding
• Introduced press-lock mechanism works better and contrasting design clearly reflects the making process of separated gel
• Equipped with press-to-lock design to neglect gel leakage due to aging
• Come with sliding wedge of side fastener of electrophoresis core presses the short glass onto the sealing gasket tightly to avoid liquid leakage caused by traditional rotary side fastener
• With cam gel-making frame ensures the accurate aligning
• Furnished with 4 independent gel-cast frame and casting 4 gels simultaneously
• Easy to read the gauged glass plate and clearly marked comb

Mini Vertical Electrophoresis is used for rapid separation and analysis of proteins in small-volume samples, making it ideal for SDS-PAGE and native PAGE. It supports quick protein purity checks, expression studies and Western blot sample preparation with reduced reagent use. Commonly used in research labs, teaching labs and proteomics studies.
