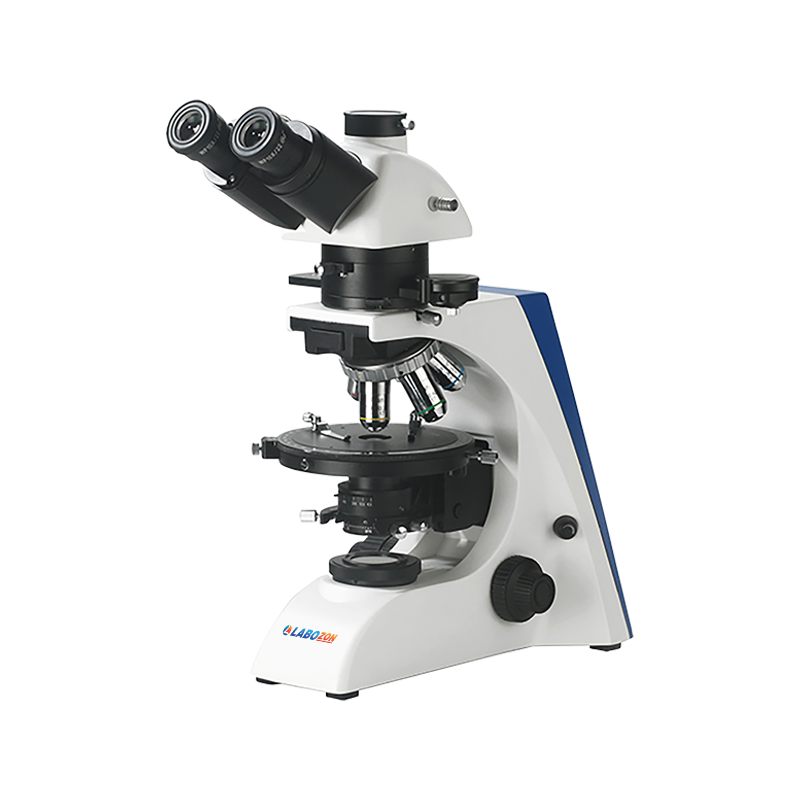

Polarizing Microscope LZ-PM-A110

Overview

Polarizing Microscope LZ-PM-A110 series provides a quality economical polarizing light microscope option. With offering Siedentopf Trinocular head , inclined at 30°, 360°, rotatable. The Trinocular head comes with an 10x/22mm eyepiece. Features Infinite Strain Free Plan Achromatic Objective (Transmitted). Microscope design offers Backward Quintuple nosepiece, polarizing unit with Scale, Rotatable 360°, Can Be Locked.

Specifications :

Optical System	Infinite Optical System
Viewing Head	Seidentopf Trinocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm, Light distribution (both) 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head and 20% for eyepiece)
Eyepiece	WF10×/22mm, WF10×/22 mm (Reticule 0.1mm)
Objective	Infinite Strain Free Plan Achromatic Objective (Transmitted): 4×/0.10 W.D=12.1mm, 10×/0.25 W.D=4.64mm, 20×/0.40(S) W.D=2.41mm, 40×/0.66(S) W.D=0.65mm
Nosepiece	Backward Quintuple nosepiece, center adjustable
Analyzer Unit	Rotatable 360°, module type, can be locked
Bertrand Lens	Built In, Center Adjustable
Optical Compensator	λ Slip(First Class Red), 1/4λ Slip, Quartz Wedge (Ⅰ- ⅣClass)
Stage	Diameter Φ156mm, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6’
Focusing	Coaxial Coarse & Fine Adjustment, Range 25mm, Fine Stroke 0.2mm, Fine Division 0.002mm
Condenser	N.A.0.9/0.13 swing out condenser
Polarizing unit	with Scale, Rotatable 360°, Can Be Locked
Illumination	5W LED lamp (Input voltage:100V～240V)
Filters	Blue
Packing Dimension	565 × 310 × 410 mm
Net Weight	10 kgs
Gross Weight	12.5 kgs

Features :

• Trinocular Head, inclined at 30°
• Designed withInfinite Strain Free Plan Achromatic Objective (Transmitted)
• 5W LED lamp, Brightness Adjustable
• Designed with Backward Quintuple nosepiece, center adjustable
• Diopter adjustable eyepiece WF10X/22 mm
• N.A.0.9/0.13 swing out condenser
• Excellent Infinite Optical System
• Single polarization, othorgonal polarization or conoscopic observation is available
• User-friendly operations

Optional Accessories :

C-mount
Filters-Amber, green, neutral
Koehler Illumination
Polarized mechanical stage
Binocular head

Applications :

Used to study polarized light effect on a specimen in the field of science, forensic analysis, geology, medicine, chemistry, biology & metallurgy.
