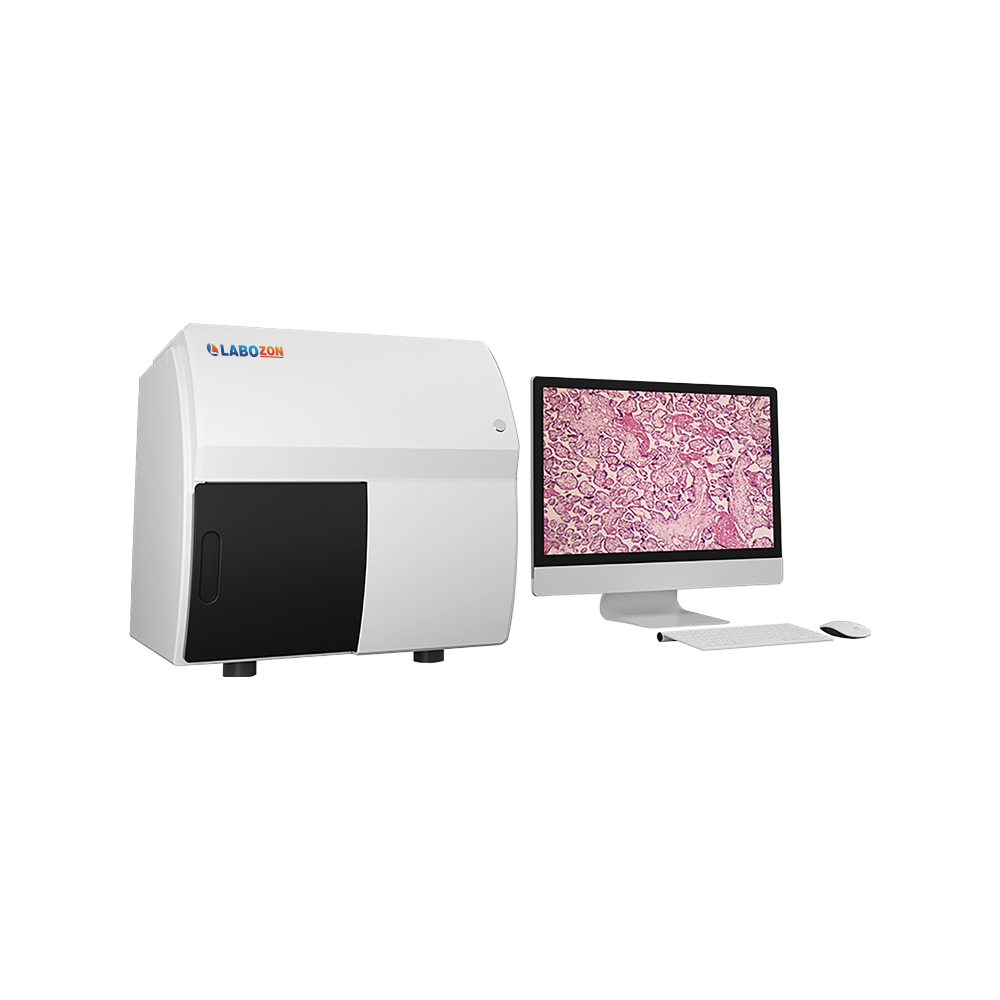

Digital Slide Scanner LZ-DSS-A110

Overview

Digital Slide Scanner LZ-DSS-A110 processes up to 50 slides simultaneously. It offers both automatic and manual focusing. The 4K line scanning camera provides detailed images at 20X and 40X magnification. Scans are completed in just 25 seconds, boosting workflow efficiency. Advanced features like barcode recognition and Z-Stack Flight Focus ensure precision and reliability

Specifications :

Slide capacity	50 slides
Objective lens	High-Precision 20X Plan Apochromatic Lens with NA 0.8
Scanning Image Resolution	0.38μm / pixel at 20X ≤ 0.19μm / pixel at 40X
Scan process	Bright field imaging: fully automated / manual area selection
Slide loading	Automatic slide loading
Magnification	20 X / 40 X
Scanning camera	High-resolution 4K line scan camera with up to 66kHz frequency
Scanning Zone	Auto and manual area detection and configuration
Specimen type	Bright field specimens, including HE-stained slides, immunohistochemical preparations, frozen section samples, specially stained specimens, and immunocytochemical images
Scan Method	Line scanning
System software	Operates on Windows 10
Imaging speed	20X scan time of ≤ 25 seconds for 15 mm x 15 mm area
Z-Stack Flight Focus	Focusing depth range of 0 to 1.6mm
Supported Slide Dimensions	1 inch
Display	23.8-inch 2K display
Focusing Adjustment	Automatic and manual focus adjustments
Memory	3 GB storage drive
Label Reading	Barcode reader
Workstation	Processor: Intel i7 or higher processor Hard disk: 3TB
Packing Dimension	880 × 640 × 900 mm
Gross Weight	120 Kgs

Features :

• Digital Slide Scanner with multi-layer scanning
• Flexible slide loading
• Provides a diverse range of bright field slides
• Autofocus and manual focus
• Digital images for review and measurement
• Integrates imaging and control systems
• Fast area coverage
• Operates on the latest operating system

Applications :

Digital Slide Scanner finds applications across various fields including medical diagnostics, research, education, and telemedicine, enhancing workflows and enabling precise analysis in each sector
