Horizontal Steam Autoclave LZ-HA-A30

Name: Horizontal Steam Autoclave LZ-HA-A30
Brand: Labozon
SKU: LZ-HA-A30
Availability: InStock
Rating: 4.0 (796 reviews)

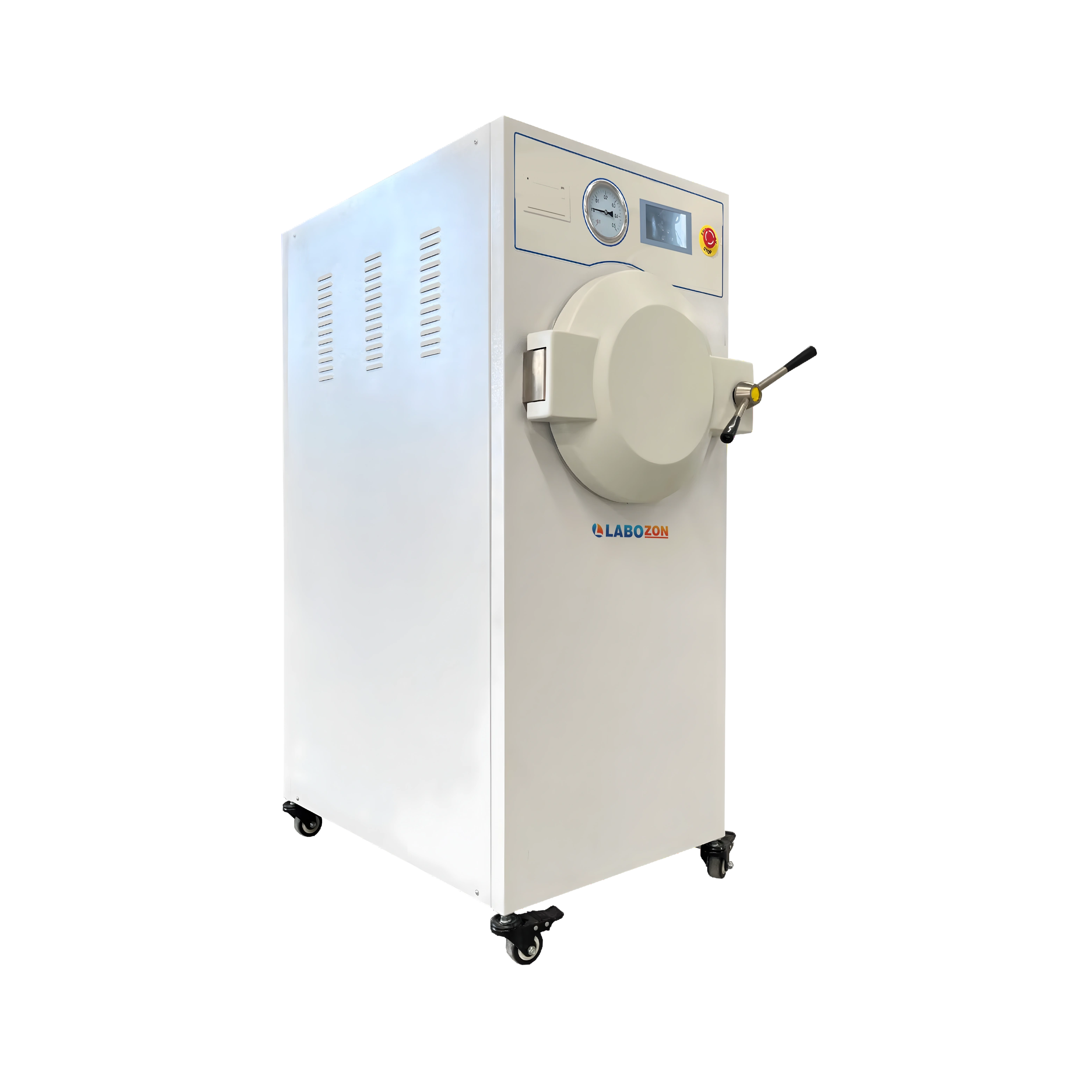

Horizontal Steam Autoclave LZ-HA-A30 is a pressure steam sterilizer equipped with fully stainless steel structure and is automatically controlled by computer it is easy to operate. It has a capacity of 100 L with a working pressure of 0.23 MPa and the working temperature ranges 138 ˚C, it can be adjustable from 105 ˚C to 138 ˚C. The beep alert system reminds the finishing of sterilization and turn off the device automatically, and having with the door locking safety system. It is set be widely used in hospital, pharmaceutical, lab, operation room to sterilize wrapped and unwrapped instruments, Textile, rubber, implant, food, glassware etc.,

Horizontal Steam Autoclave LZ-HA-A30 - Specifications

Sterilization Volume	100 L
Chamber Dimensions	Ø400×800 mm
Working Pressure	0.23 Mpa
Working Temperature	105°C- 138°C
Time Range	0-99 min
Temperature Accuracy	0.1°C
Heat deviation	≤ ± 1°C
Controller	Microprocessor
Door	Single
Display	5 inch LCD color touch screen
Drying Function	Yes
Printer	Built-in Printer
Power	6.0kw
Power Supply	220V/380/440V. 50-60Hz
Dimensions	1080 x 650 x 1450 mm
Packing Dimensions	1280 x 850 x 1450 mm
Net Weight	140 kg
Gross Weight	190 kg

Horizontal Steam Autoclave LZ-HA-A30 - Key Features

Horizontal cylindrical design structure with mineral glass wool insulation
5 inch LCD color touch screen display for viewing the sterilization running status
It has capability of rapid sterilization for 0-99 minutes
Built-in Steam generator
Automatic control of water adding, heating, sterilization, drying, exhaust printing process
stainless steel door with a radial lever can stop steam leakage and securely lock the door cover
Equipped with interlock safety device and shield
High quality silicone door gasket, temperature resistant, durable
Microprocessor control system, user-defined program, and pre-set professional and systematized sterilization programs
Machine are equipped with water-level cut-off sensors or indicators will cease to function when the water level is reached
An ideal defect warning system is created, and fault warnings are displayed in real time on a touch screen display
Once the sterilization cycle finishes, the beep will sound simultaneously with messages appearing on the touchscreen display
Separate boiler with steam generator is provided inside the main body
The chamber drain outlet is fitted with a filter to prevent blockages
Built-in USB port and printer, record the entire sterilization process
It has the safety switch of door cover
Comes with heat protection, Anti-dry heating, safety interlock device, auto release of safety valve, emergency stop button
Protection automatically over high pressure and high temperature

Horizontal Steam Autoclave LZ-HA-A30 - Applications

It used to sterilize the dental and optical instruments, glass ware, surgical instruments and forceps, culture medium and biological dressing, food etc
