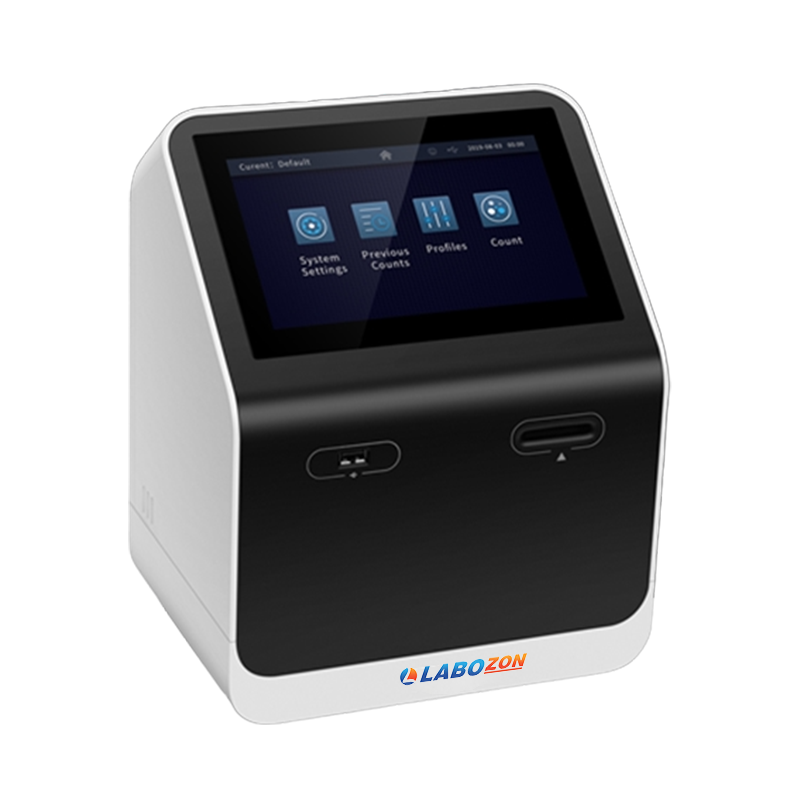

Automated Cell Counter LZ-ACE-A100 Catalog

Automated Cell Counter LZ-ACE-A100 is a laboratory instrument designed to enhance the precision of cell quantification in biological samples. An amplification factor of 2.5 × 5.0 megapixels that uses manual and autofocusing methods. It has a high-resolution camera, image analysis software, and a user-friendly interface. Designed with counting area to insert slide for counting cells in less than 9 seconds.

Amplification factor	2.5 × 5.0 Megapixel
Focusing Method	Manual focusing and autofocusing
Cell Counting area	2.15 mm × 1.62 mm
Cell Types determined	Cell lines, stem cells, primary cells, pollens, beer yeast
Cell size range	4 to 60 µm (Optimal: 7 to 60 µm)
Cell Concentration Range	104 to 107 cells/ml
Cell counting Time	< 9 sec
Data Storage capacity	1000 counting reports and images at most
Power supply	90 V to 264 V, 50/60Hz
Dimensions (W × D × H)	212 × 165 × 264 mm
Weight	3 kg

• Adopts trypan blue staining method to assess cell viability
• Smart image recognition and advanced optics enable automatic cell analysis
• BF channel clearly displays cell count and cell morphology
• Uses manual and autofocusing method for counting the cells
• Counts cells in less than 9 secs and reduces working time
• Take account of cells of different type with high precision
• Clear vision for swift and reliable cell counting
• Estimate cells in less than 9 secs and reduces working time
• Strong computing power ensures better efficiency

Automated Cell Counter is widely used in tumour research, immunological research, cell biology research, cell quality control and to detect cell expression level detection.

Accessories no	Name	Quantity
1	AC adapter	1
2	Cell count slide	50 pcs
