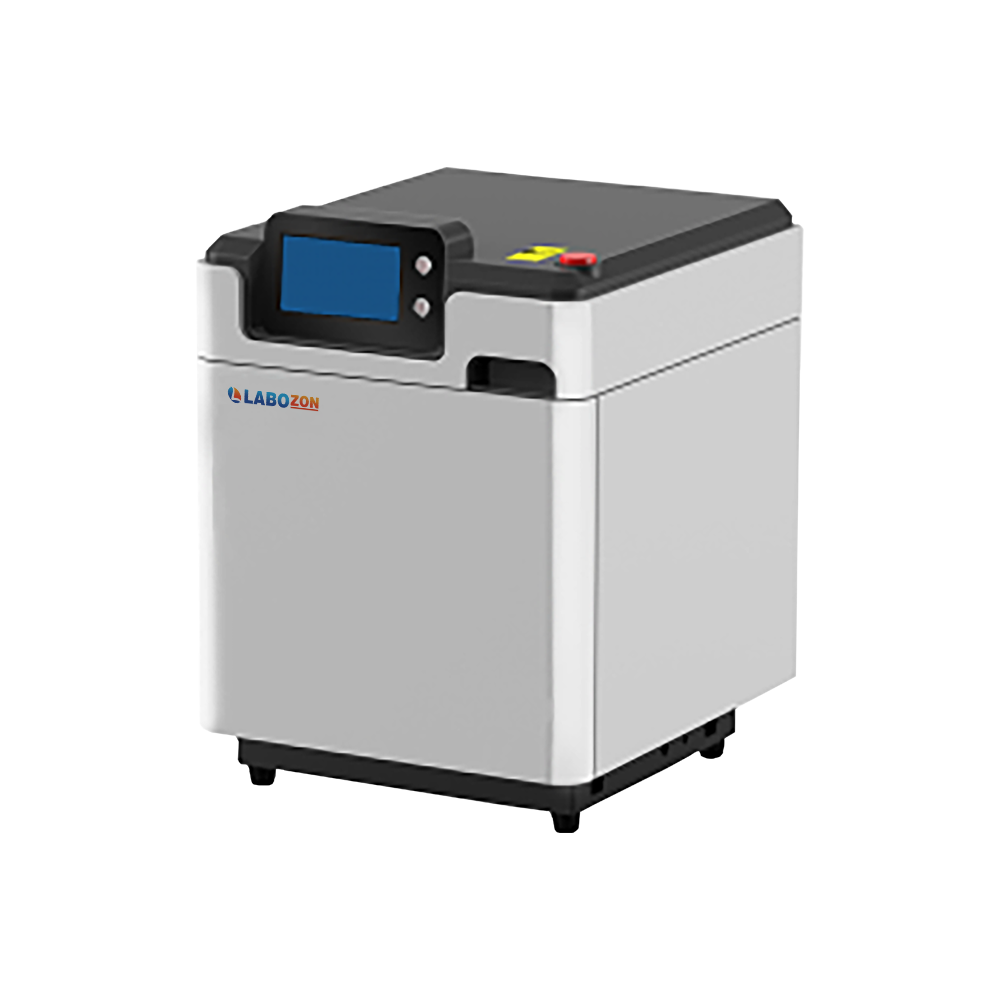

Microwave Digestion System LZ-MDS-A100

Overview

Microwave Digestion System LZ-MDS-A100 is fully innovative microwave system, deliver microwave radiation to samples in order to facilitate their quick and effective digestion. Our microwave system simultaneously process 12 sets of 100mL vessels. It guarantees the quickest possible sample preparation at maximum pressure range up to 0 to 15 Mpa. Integrated with touchscreen display that allow user to monitor working parameters.

Specifications :

Vessel Quantity	12
Capacity	100 mL
Temperature Range	50 to 400℃
Display Accuracy	± 0.1℃
Pressure Controlling Range	0 to 15 Mpa
Pressure Accuracy	±0.01 Mpa
Pressure Display Accuracy	±0.01 Mpa
Temperature Accuracy	± 0.1℃
Temperature Monitoring System	Contactless IR Sensor, scan monitoring for each vessel
Pressure Monitoring System	Contactless Sensor, scan monitoring for each vessel
Sample Vessel Material	Imported TFM
Protection Vessel Material	Peek+ Glass Fiber
Display	7 inch Touch Screen
Rotation	360° Continuous rotating
Microwave Tank	316 L stainless steel tank with corrosion-proof coating
Microwave Power	0 to 1000 W (Adjustable)
Microwave Leakage	< 5 mw/cm2
Air Exhaust	High power corrosion-proof air blower
Power	AC 220V±10%, 10A, 50/60 Hz
Dimension	490 × 560 × 630 mm
Weight	47 kg

Features :

• Intuitive and efficient with a 7-inch color touchscreen
• Glass fiber-reinforced vessel safely encloses samples for worry-free digestion
• Adapts to various sample sizes, accommodating your diverse needs
• Explosion-proof and self-locking design prioritizes safety
• Achieve consistent, reliable digestion for accurate analysis
• Significantly reduce preparation time compared to traditional methods
• 360° rotation ensures even temperature for efficient digestion

Applications :

Microwave Digestion System revolutionizes sample preparation across diverse fields, from food and pharmaceuticals to forensics and mining.
