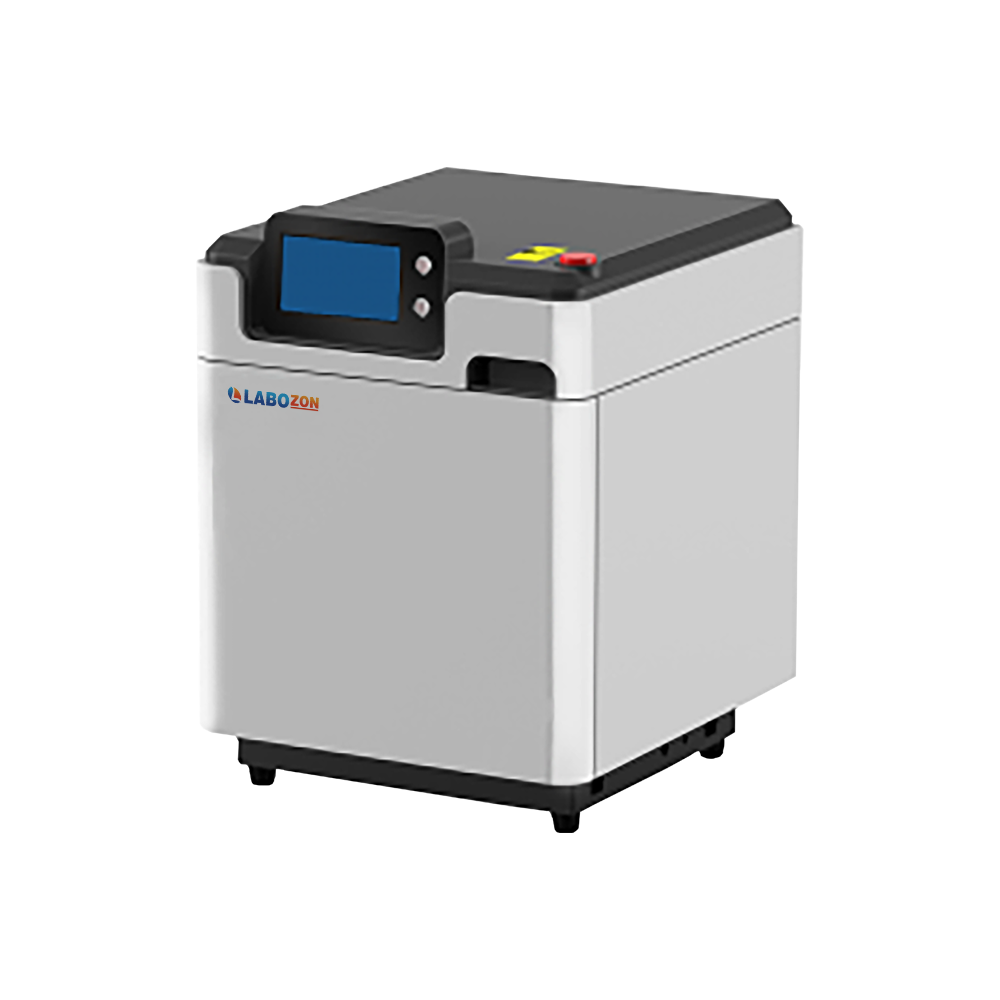

Microwave Digestion System LZ-MDS-A103

Overview

Microwave Digestion System LZ-MDS-A103 is fully innovative microwave system, deliver microwave radiation to samples in order to facilitate their quick and effective digestion. Our microwave system simultaneously process 6 sets of 100mL vessels. It guarantees the quickest possible sample preparation at maximum pressure range up to 0 to 15 Mpa. Integrated with touchscreen display that allow user to monitor working parameters.

Specifications :

Vessel Quantity	6
Capacity	100 mL
Temperature Range	50 to 400℃
Display Accuracy	± 0.1℃
Pressure Controlling Range	0 to 15 Mpa
Pressure Accuracy	±0.01 Mpa
Pressure Display Accuracy	±0.01 Mpa
Temperature Accuracy	± 0.1℃
Temperature Monitoring System	Contactless IR Sensor, scan monitoring for each vessel
Pressure Monitoring System	Contactless Sensor, scan monitoring for each vessel
Sample Vessel Material	Imported TFM
Protection Vessel Material	Peek+ Glass Fiber
Display	7 inch Touch Screen
Rotation	360° Continuous rotating
Microwave Tank	316 L stainless steel tank with corrosion-proof coating
Microwave Power	0 to 1000 W (Adjustable)
Microwave Leakage	< 5 mw/cm2
Air Exhaust	High power corrosion-proof air blower
Power	AC 220V±10%, 10A, 50/60 Hz
Dimension	490 × 560 × 630 mm
Weight	47 kg

Features :

• Intuitive and efficient with a 7-inch color touchscreen
• Glass fiber-reinforced vessel safely encloses samples for worry-free digestion
• Adapts to various sample sizes, accommodating your diverse needs
• Explosion-proof and self-locking design prioritizes safety
• Achieve consistent, reliable digestion for accurate analysis
• Significantly reduce preparation time compared to traditional methods
• 360° rotation ensures even temperature for efficient digestion

Applications :

Microwave Digestion System revolutionizes sample preparation across diverse fields, from food and pharmaceuticals to forensics and mining.
