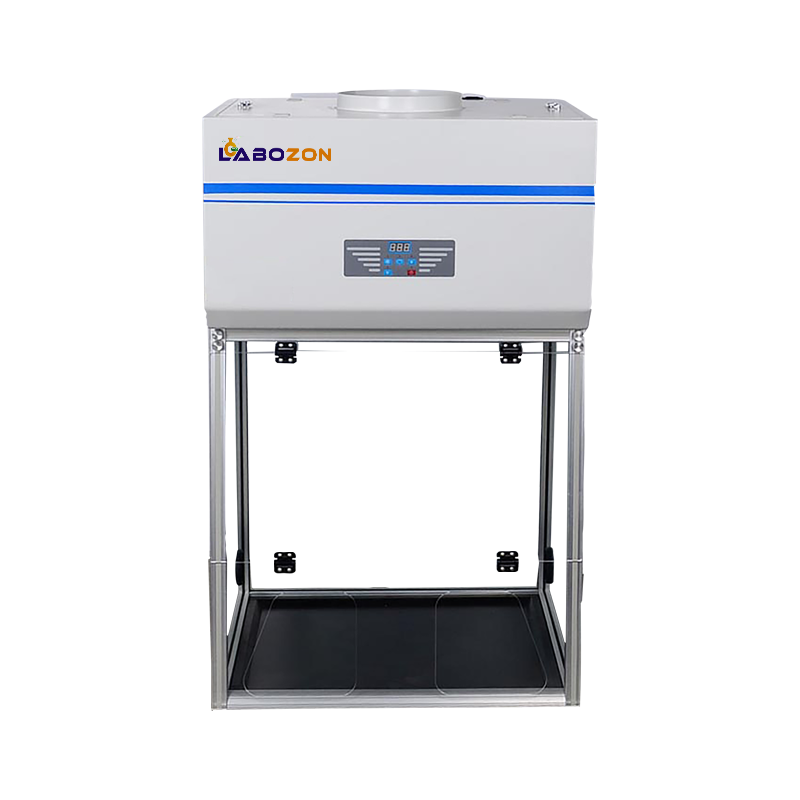

Ducted Fume Hood LZ-DFH-A100 Catalog

Ducted Fume Hood LZ-DFH-A100 offer maximum protection to operators to operate and is suitable for the application to remove harmful microbes and particulates. Suitable to control effective parameters for enclosing a work area that uses hazardous solvent & chemicals with an excellent memory and centrifugal blower function. This enclosed ventilated used for the application with a high volume of organic solvent & chemical, gases and other volatile products. This unit needs ductwork to channel toxins & chemicals out of the lab by a fan mounted.

Maximum Opening	660 mm
Air Velocity	0.3 to 0.8 m/s
Front Window	Folding Acrylic window, down part with free stop function
Material	Main Body Cold rolled steel with bacteria powder coating Work Station Phenolic resin Front & Back Window 5 mm toughened glass
Control System	Microprocessor
Lamp	LED -4W*2
Noise	≤65 dB
Display	LED
Blower	Adjustable speed with centrifugal blower
Power Consumption	200 W
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Internal Dimension	640x550x700 mm
External Dimension	700x620x1150 mm
Packing Dimension	840x960x1400 mm with Base Stand 840x760x1400 mm without Base Stand
Gross Weight	With Base stand 115 kg Without Base Stand 100kg

• Folding acrylic front window, down part with free stop function
• Microprocessor control system, LED display
• Design with memory function and centrifugal blower function
• Interlock function; UV lamp and blower function
• Remove harmful contaminants continuously
• Eco-friendly and best chemical compatibility

• LED lamp
• Active carbon filter
• Blower
• 4.3 meters PVC exhaust duct
• Pipe strap

• 15W UV lamp
• HEPA filter
• Base stand

Suitable for high volume of organic solvent & chemical, gases and other volatile products.
