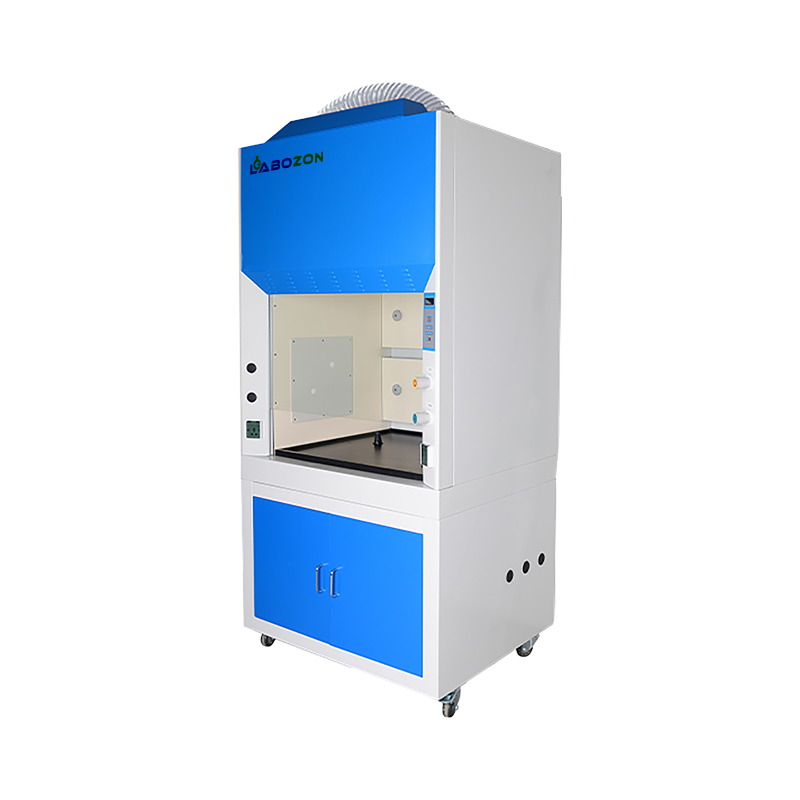

Ducted Fume Hood LZ-DFH-A302-110V

Overview

Ducted Fume Hood LZ-DFH-A302-110V design to provide protection against harmful contaminates dust and toxin vapour in lab workspace. Our ducted fume hoods are aimed to have specifically tuned for cleanness, overall systems and design flexibility and ergonomics to deliver outstanding user safety and ease to handle. Offer a broad range of accessories along with optional. Equipped with safety features and microprocessor control.

Specifications :

Maximum Opening	850 mm
Surface Height	520 mm
Air Velocity	0.3 to 0.8 m/s
Front Window	Adjustable height, with 5 mm toughened glass(Motorized)
Material	Main Body Cold rolled steel with bacteria powder coating Work Station Phenolic resin Front & Back Window Laminate board with good acid and alkali resistance function
Control System	Microprocessor
Lamp	LED-12W*1
Noise	≤68 dB
UV Lamp	253.7 nm
Display	LED
Blower	PP centrifugal Blower
Exhaust Duct	PVC-300 mm
Power Consumption	400 W
Internal Dimension	1020x670x730 mm
External Dimension	1240x800x2200 mm
Packing Dimension	1390x990x1690 mm
Gross Weight	317 kg
Electrical Requirement	110V

Features :

• Design with UV lamp for sterilization
• LED display with adjustable air speed with 9 level
• Equipped with Microprocessor control
• Provide excellent resistant function against acid and alkali
• Back up memory function after power failure
• Design with adjustable height with motorized front glass window
• Build with PP Centrifugal blower
• Easy to carry and install

Accessories :

UV Lamp*2
LED Lamp
Water tap
Gas tap
Water Sink
Base Cabinet
Total load of 2
waterproof cabinet:500 W
4.3 m exhaust duct
Pipe Strap*2
