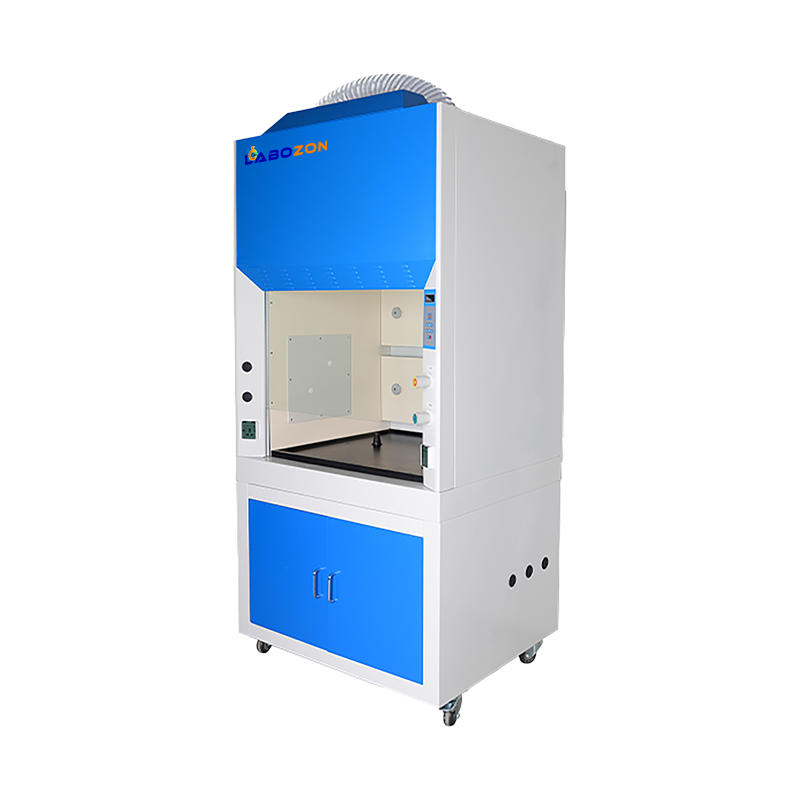

Ducted Fume Hood LZ-DFH-A304 Catalog

Ducted Fume Hood LZ-DFH-A304 design to provide protection against harmful contaminates dust and toxin vapour in lab workspace. Our ducted fume hoods are aimed to have specifically tuned for cleanness, overall systems and design flexibility and ergonomics to deliver outstanding user safety and ease to handle. Offer a broad range of accessories along with optional. Equipped with safety features and microprocessor control.

Maximum Opening	850 mm
Surface Height	520 mm
Air Velocity	0.3 to 0.8 m/s
Front Window	Adjustable height, with 5 mm toughened glass(Motorized)
Material	Main Body Cold rolled steel with bacteria powder coating Work Station Phenolic resin Front & Back Window Laminate board with good acid and alkali resistance function
Control System	Microprocessor
Lamp	LED-16W*1
Noise	≤68 dB
UV Lamp	253.7 nm
Display	LED
Blower	PP centrifugal Blower
Exhaust Duct	PVC-300 mm
Power Consumption	500 W
Power Supply	AC220±10%, 50/60Hz; 110V±10%, 60Hz
Internal Dimension	1620x670x730 mm
External Dimension	1840x800x2200 mm
Packing Dimension	1990 x 995 x 1660mm Main Body 1990 x 995 x 930mm Base Cabinet
Gross Weight	285kg;113kg

• Design with UV lamp for sterilization
• LED display with adjustable air speed with 9 level
• Equipped with Microprocessor control
• Provide excellent resistant function against acid and alkali
• Back up memory function after power failure
• Design with adjustable height with motorized front glass window
• Build with PP Centrifugal blower
• Easy to carry and install

• UV Lamp*2
• LED Lamp
• Water tap
• Gas tap
• Water Sink
• Base Cabinet
• waterproof cabinet:500 W x 2
• 5 m exhaust duct
• Pipe Strap*2

• Active Carbon Filter
• HEPA Filter

It is commonly applied in pharmaceutical labs, chemical research, quality control testing, and academic laboratories to protect users and ensure a controlled working environment.
