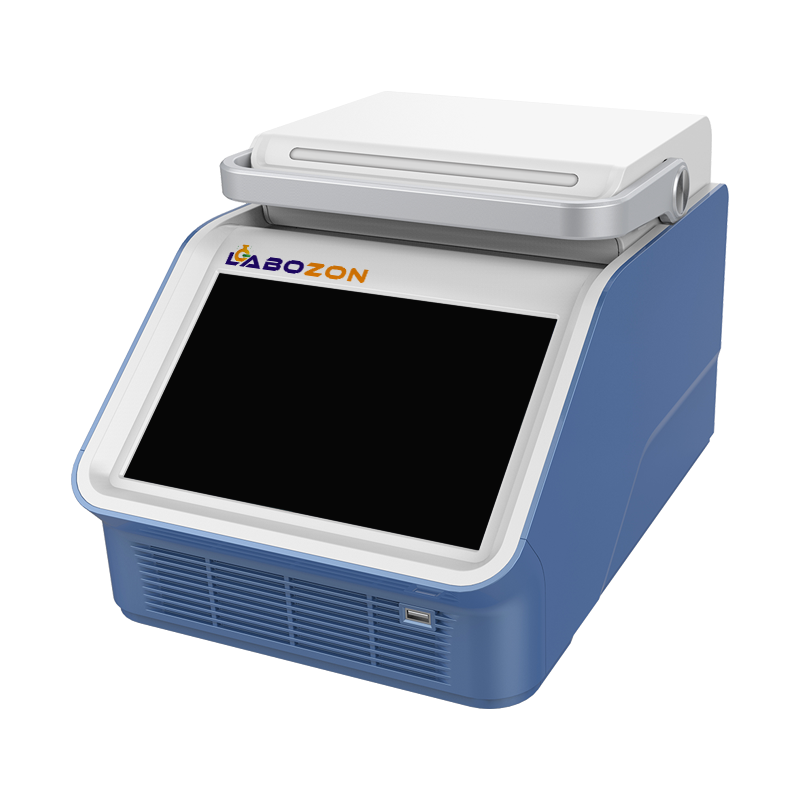

Advanced Gradient Thermal Cyclers LZ-GTC-A41

Overview

Advanced Gradient Thermal Cyclers LZ-GTC-A41 is programmed with the android operation system and pre-installed 11 standard program patterns makes operations easy to the new operators. This device Conduct PCR runs with a range from 0.2 ml tubes to 96-well made up of aluminum unit using anodizing technology. It is configured with the Peltier heating units which is automatic tightening and closing hot lid. To meet critical requirements of customers it allows the user to change commands while program is running. The maximum heating rate is 6 ℃/S viewed on 10.1-inch touch screen.it has an advantage of operating via mobile, in built Wi-Fi option and USB support.

Specifications :

Capacity	96×0.2 ml
Tube	0.2ml tube,8 strips, Full 96 wells plate, Half skirt96 wells plate, No skirt 96 wells plate
Temperature Range	0 to 105 ℃
Maximum Ramp Rate	6 ℃/s
Uniformity	≤ ± 0.2 ℃
Accuracy	≤ ± 0.1 ℃
Display Resolution	0.1 ℃
Temperature Control	Block Tube
Heating Rate Adjustable	0.1 to 6 ℃
Gradient Temperature Range	30 to 105 ℃
Gradient Type	Normal Gradient
Gradient Spread	1 to 42 ℃
Hot Lid Temperature	30 to 115 ℃
Number Of Programs	20000 +(USB FLASH)
No. Of Step	30
No. Of Cycle	100
Increment/Decrement Time	1 Sec to 600 Sec
Temperature Increment/Decrement	0.1 to 10.0 ℃
Pause Function	Yes
Auto Data Protection	Yes
Holding	4 ℃
Touchdown Function	Yes
Long Pcr Function	Yes
Computer Software	Yes
Mobile Phone APP	Yes
Display	LCD
Interface	USB2.0 , WIFI
Power	600 W
Voltage	100 to 240 V AC ,50/60 Hz
Dimensions(L×W×H)	385× 270× 255 mm
Weight	10 kg

Features :

• It has durable Peltier heating units to heat up the plates as quick as possible
• It is provided with corrosion free aluminum unit made using anodizing technology
• The maximum heating rate is 5 ℃/S viewed on 10.1-inch touch screen
• They have automatic closing lid to safe guard the samples
• To and fro air vent system which enables to place the machine one after the other
• It has android operation system to monitor all the operations with mobile phone and pre-installed 11 programs for quick access
• Provided with graphical menu navigation interface, USB support, Wi-Fi support to monitor via mobile phone
• To satisfy the customers it also has the option to change the setting during the allow to program is running
• It has hot lid work functions and to meet various experimental need
• Offered with power off recovery system and get update of the experiment via email to alert the user
• New updates can be installed using USB and LAN

Applications :

Used in Gene expression analysis
Pathogen detection
DNA methylation analysis
Genotyping and gene scanning
miRNA research etc.
