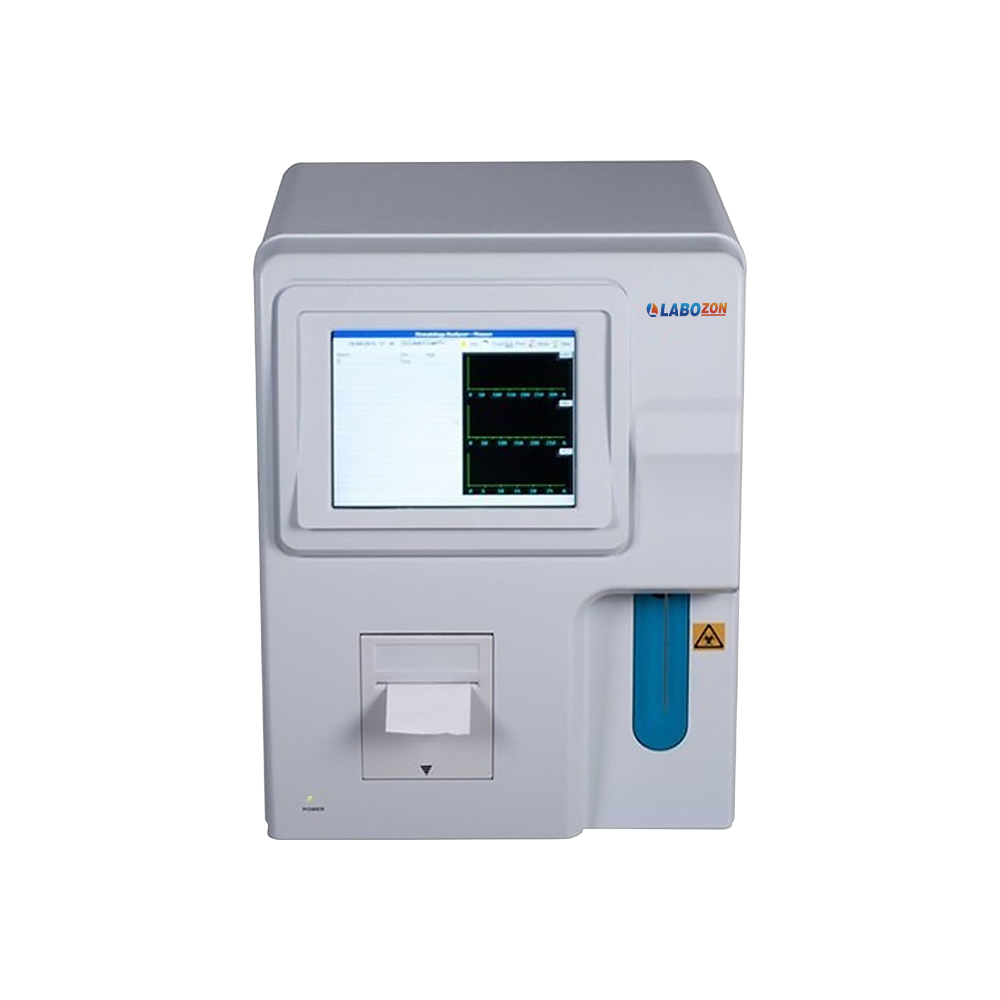

3 Parts Hematology Analyzer LZ-HTA-B110

Overview

3 Parts Haematology Analyzer LZ-HTA-B110 is a automatic analyzer having throughput of 35 sample tests per hour. Features advanced technologies and mechanisms for counting red blood cells, platelet and haemoglobin counting. It is designed to assay 3 parts, 23 parameters, 3 histograms and with storage capacity of 100,000 data results for future reference. Equipped with a graphical thermal printer with various printer format

Specifications :

Measuring principle	Electrical resistance for counting; hemiglobincyanide and SFT method for hemoglobin
Work Mode	Single Channel +Unique Hemoglobin test system
Sample Volumes	9.8μL Venous and capillary 20μL pre-diluted
Throughput	35 samples / hr
Assay Items	3 parts, 20 parameters and 3 color histograms
Display	8.4" inch TFT Display
Storage	Upto 100,000 sample results including histograms
Parameters	WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, Lymph#, Mid#, Gran#, Lymph%, Mid%,Gran% 3-histograms: WBC, RBC, PLT
Performance	Item Linearity CV WBC 0.0 ~ 99.9 ≤2% RBC 0.0 ~ 9.99 ≤1.5% MCV(fL) 40 ~ 150 ≤0.5% PLT 0 ~ 999 ≤4.0% HGB(g/L) 0.0 ~ 300.0 ≤1.5%
Interface	RS232, parallel printer and keyboard
QC Control	X-B, L-J, SD, CV%
Reference Value Settings	Male, Female, Children, Neonate
Working Conditions	Temperature 18°C ~ 30°C wet ≤10-90%
Power Supply	220 V ±22 VAC, 50±1Hz
Dimensions	330 x 380 x 430 mm
Weight	20 kgs

Features :

• Assays 3 parts, 23 parameters and up to 35 samples per hour
• Electrical resistance for counting
• SFT method of Haemoglobin
• Low sample consumption of venous 9.8µl, prediluted 20 µl for twice testing
• 8.4" inch color TFT display for visualizing and controlling parameters
• Windows operation system with graphical button mouse and keyboard
• Automatic diluting, mixing, rinsing and clog clear
• Automatic cleaning of sample probe both inside and outside
• Great storage capacity to save about 100,000 results and 3 histograms
• Internal thermal sensitive printer, RS232 interface, PC connecting
• Methodology: Electrical resistance for counting; hemiglobincyanide for haemoglobin
• Single channel counter
• Advanced and long life valve technology
• Operatable for 24hours, Auto-sleeping and waking-up functions

Applications :

Hematology Analyzers are widely used for testing blood components across medical labs, zoo, veterinarian labs, research labs, medical institutes, clinical laboratories etc.
