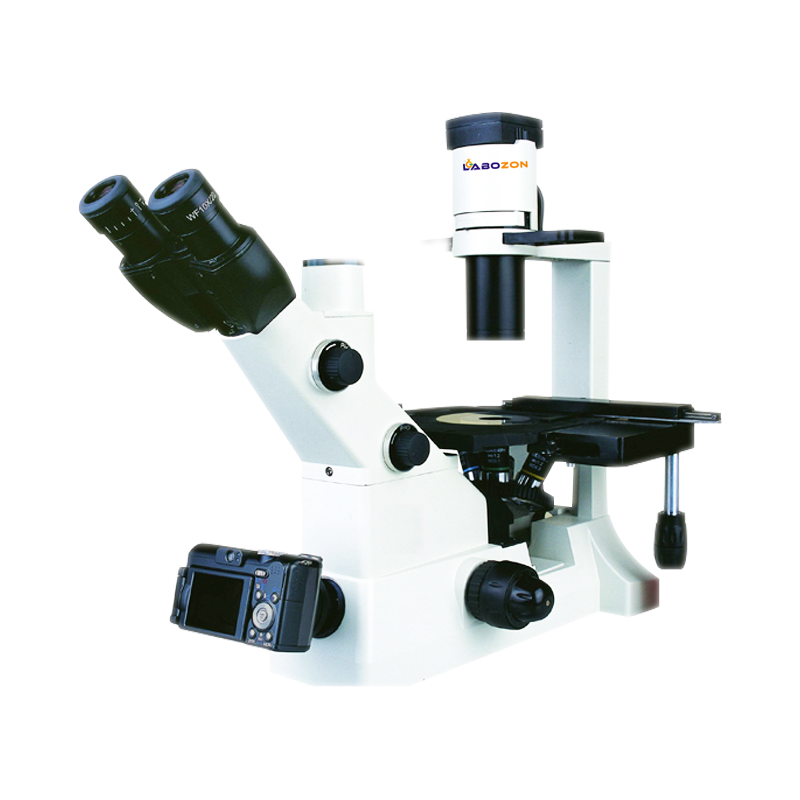

Inverted Biological Microscope LZ-IBM-A100

Overview

Inverted Biological Microscope LZ-IBM-A100 is an advanced Infinite Plan Biological Microscope equipped with stable & reliable 'T' type base, Phase contrast Kit and long working distance condenser. It has a design of Trinocular Head, inclined at 45°, Interpupillary 48-75mm.Features Infinite plan achromatic objectives. Microscope design also offers a Quintuple Nosepiece with Coaxial coarse and fine focusing adjustment. This Microscope is used widely in many fields of biology.

Specifications :

Type	Inverted Biological Microscope
Optical System	Infinite Optical System
Viewing Head	Trinocular Viewing Head, Inclined at 45°,360° Rotatable, Interpupillary 48-75 mm
Eyepiece	Wide Field Eyepiece WF10×/20, Eyepiece Tube Diameter 30 mm
Objective	Infinite Plan Achromatic Objective 4×/0.10, WD 22 mm LWD Infinite Plan Achromatic Phase Objective: 10×/0.25 WD 6 mm LWD Infinite Plan Achromatic Phase Objective: 20×/0.4 WD 3.1 mm LWD Infinite Plan Achromatic Phase Objective: 40×/0.55 WD 2.2 mm
Stage Dimension	Plain Stage 230×170 mm , Attachable Mechanical Stage, X,Y Coaxial Control, Moving Range 80×120 mm, Auxiliary Stage
Stage Attachments	Terasaki Holder, Glasse Insert, Petri Dish Holder φ38, Petri Dish Holder φ54
Nose Piece	Backward Quintuple Nosepiece
Condenser	Extreme Long work Distance (ELWD) Condenser NA0.3, LWD72 mm
Centering Telescope	φ30mm
Illumination	6V30W Halogen Lamp, Brightness Adjustable
Phase Contrast kit	10×、20×、40× Phase Annulus Plate(Adjustable)
Filter	Blue/ Green and Ground Glass (Φ45 mm)
Focusing	Coaxial Coarse & Fine Adjustment, Fine Division 0.002 mm, Moving Range up 4.5 mm down 4.5 mm
Packaging Dimensions	430 x 620 x 620 mm
Packaging Weight	14 kg

Features :

• Built with infinite optical system
• Equipped with LWD Infinite Plan Objectives, and Infinite Plan Phase Objectives
• Long Distance Objectives provides high Quality images
• Designed with quintuple nosepiece
• Terasaki holder, petri dish holder Attachments
• Offers Centering Telescope Attachment
• High-efficient, and stable inverted microscope

Optional Accessories :

Acessories No.	Name
1	Photo Attachment
2	C mount 0.5X
3	Epi-fluorescent attachment

Applications :

Inverted Biological Microscope is widely used in the applications of Animal and Plant tissue culture and applicable in many Biology, microbiology fields
