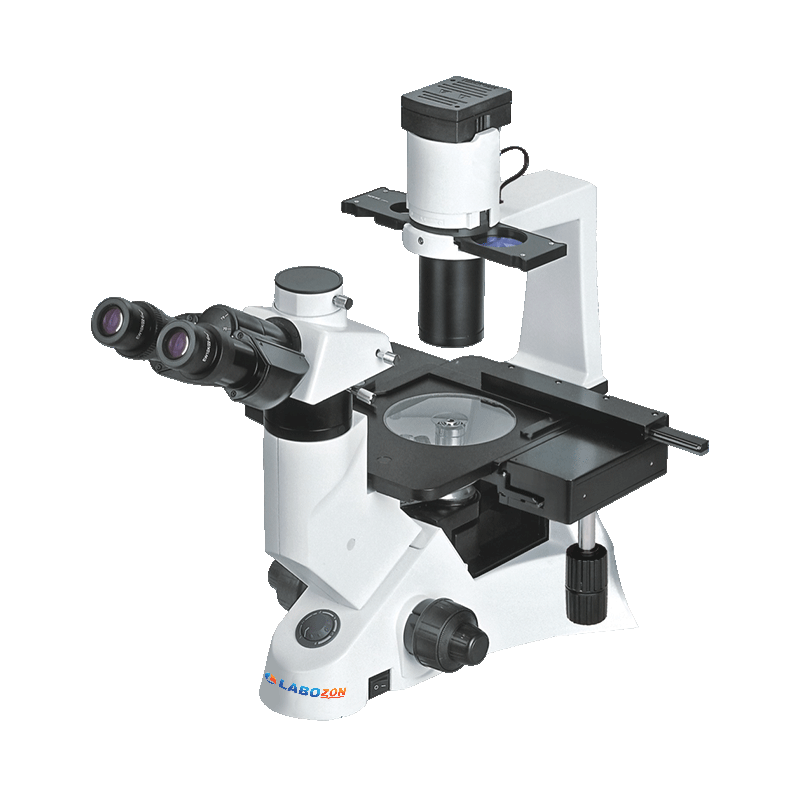

Inverted Biological Microscope LZ-IBM-A110

Overview

Inverted Biological Microscope LZ-IBM-A110 is an advanced Infinite Plan Biological Microscope equipped with stable & reliable LWD plan objectives. It has a design of Trinocular Head, inclined at 30°, Interpupillary 48-75mm. Microscope design also offers a Quintuple Nosepiece with Coaxial coarse and fine focusing adjustment. This Microscope is used widely in many fields of biology.

Specifications :

Type	Inverted Biological Microscope
Optical System	Infinite Optical System
Viewing Head	Trinocular Viewing Head, Inclined at 30°, Interpupillary 48-75 mm
Eyepiece	High-point, Extra Wide Field Eyepiece EW10×/ 22mm
Objective	LWD Infinite Plan Objective 4×/ 0.1, WD 18mm Infinite Plan Phase Objective PH10×/ 0.25, WD 10mm Infinite Plan Phase Objective PH20×/ 0.4, WD 5.1mm
Stage	Plain Stage 160×250mm Glass Insert Auxiliary Stages70×180mm
Nose Piece	Quintuple Nosepiece
Condenser	ELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm)
Centering Telescope	φ30mm- Optional
Illumination	Halogen Lamp 6V/ 30W
Phase Annulus	10X-20X、40X Phase Annulus Plate（Fixed)
Filter	Diameter 45mm, Blue、Green and Ground Glass
Focusing	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range up 8mm, down 3mm
Dimensions	440 x 400 x 670 mm
Weight	16 kg

Features :

• Built with infinite optical system
• Equipped with LWD Infinite Plan Objectives, and Infinite Plan Phase Objectives
• Long Distance Objectives provides high Quality images
• Designed with quintuple nosepiece
• Offers Centring Telescope Attachment
• High-efficient, and stable inverted microscope

Optional Accessories :

Optional Accessories No.	Name
1	Photo Attachment
2	C mount with video adapter
3	Epi-fluorescent attachment

Applications :

Inverted Biological Microscope is widely used in the applications of Animal and Plant tissue culture and applicable in many Biology, microbiology fields
