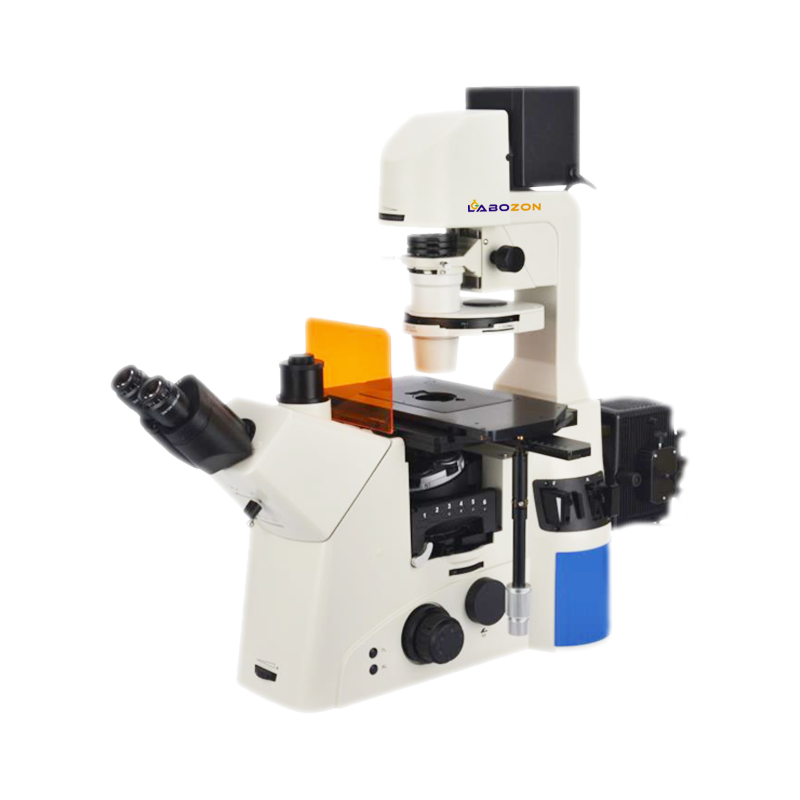

Inverted Biological Microscope LZ-IBM-B100

Overview

Inverted Biological Microscope LZ-IBM-B100 is an advanced Infinite Plan Optical System Biological Microscope equipped with stand structure, offers Magnification range of 1X, 1.5X. It has innovative design of Trinocular head with Bertrand lens, inclined at 45°, Interpupillary 47-78mm. Features infinite plan objectives 10X, 20X, 40X. Incorporated with Epi-Fluorescence attachment with 5W LED lamp as Illumination source, this microscope delivers excellent fluorescent image with high resolution. Digital Camera or eyepiece is added to the Trinocular head to take pictures and videos.

Specifications :

Type	Inverted Biological Microscope
Optical System	NIS60 Infinite Optical System
Viewing Head	Trinocular head with Bertrand lens, inclined at 45°, Interpupillary 47-78mm, 3 position beam split ratio: 50/50, 100/0, 0/100
Eyepiece	SW 10× /25 mm, φ30 mm
Objective	10× NA=0.3 WD=8.1mm Cover glass 1.2mm; 20× NA=0.45 WD=7.5-8.8mm Cover glass 0-2mm; 40× NA=0.60 WD=3-4.4mm Cover glass 0-2mm
Stage	3-layer mechanical stage, stage size: 340×230 mm, movement range 130×85mm, flexible knob.
Fluorescent Attachments	Multi-model plate structure, total six positions, could be taken out from main frame and can change different cube easily.
Nose Piece	6-hole nosepiece with DIC slot
Condenser	Extreme Long work Distance (ELWD) Condenser NA 0.55, WD 26 mm, with 6 position plate
Illumination	Kohler illumination, 12V/100W halogen lamp
Magnification	1×, 1.5×
Phase Contrast	Standard
Focusing	Coaxial Coarse & Fine focusing, Moving Range up 9 mm, coarse adjustment 2 mm /rotation, fine adjustment 0.2 mm/rotation
Side video port	3 models: left side port/eyepiece= 50/50; right side port/eyepiece=20/80; left & right side port/eyepiece= 0/100
Carton 1Packaging Dimensions	650 x 590 x 510 mm , 21.5 kgs
Carton 2 Packaging Dimensions	580 x 570 x 530 mm, 26.5 kgs

Features :

• Built with NIS60 Infinite Optical System
• Standard Magnification range of 1X, 1.5X
• Offers Bright field, Phase contrast and DIC Observation
• Designed with 6-hole nosepiece with DIC slot
• It has Side Video port with 3 different models
• 5W LED lamp as Illumination source
• Extreme Long Work Distance condenser
• Videos and Images can be shot during the Process
• Equipped with innovative stand Structure

Applications :

Inverted Biological Microscope is used mostly in the research institutes for the clear observation of Organisms. It is widely applicable in the applications of culture medium.
