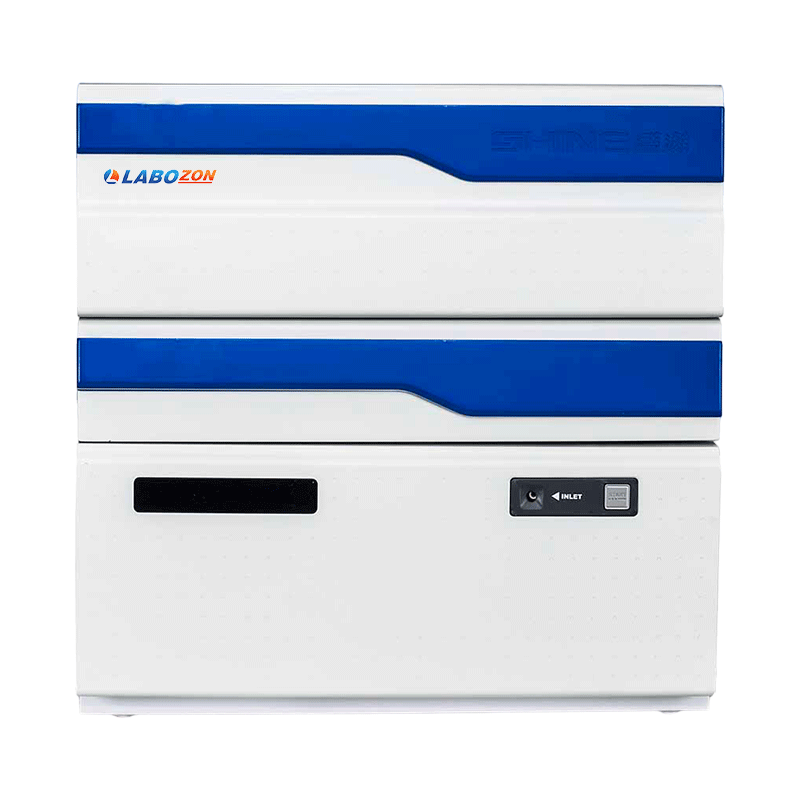

Ion Chromatograph System LZ-ICS-A100

Overview

Ion Chromatograph System LZ-ICS-A100 separates and quantifies ions in a liquid sample. Equipped with a high-performance chromatography pump, which has a maximum pressure of 35 MPa. It features an extensive flow range, spanning from 0.001 to 9.999 ml/min. This system is enhanced with low-pressure degassing technology. Our system is Incredibly reliable and presents effective performance.

Specifications :

Ion Chromatography Pump	Type High pressure and low pulse double plunger tandem advection pump Maximum pressure 35 MPa (PEEK) Display Pressure Accuracy ≤0.1 Mpa Flow Stability (0.2 to 0.5) ml/ min ≤ 3 %, (0.5 to 1.0) ml/ min ≤ 2 %, > 1.0 ml/ min ≤ 2 % Flow Range 0.001 to 9.999 ml/ min Pressure Pulse ≤0.5 %
Numerical Control and Electromagnetic Injection	Maximum pressure 35 Mpa Contact material of the rotor PEEK Control mode By Stepper motor Power supply DC 24 V
Column Heater	Operating temperature range Room temperature 20 to 60°C Controlling temperature accuracy ± 0.01°C Allowable deviation of column heater temperature ± 2°C Temperature stability ≤1°C/ h
Flow System	Plastic Flow Path Made up of PEEK material Six-Way Valve PEEK material pressure 5000 psi, independent automatic collection, and flow function
Thermal Buffer System For Eluent	Temperature Range 25 to 40°C
Degassing Device	Type Built-in low pressure Vacuum Degree -70 Kpa Maximum Flow Rate 10ml/ min 90% Internal Volume 30 µl Degassing Efficiency 10ml/ min 90%
Digital Temperature And Control Detection System	Type Temperature-control and Bipolar conductivity detector Detection Mode Bipolar conductivity detection Cell Volume ≤ 0.8 µl Detection Range 0 to 50000 µS/ cm Output Voltage -6000 to +6000 mV (adjustable) Operating Temperature Room temperature 5 to 60°C Controlling Temperature Accuracy ± 0.01°C Maximum Pressure 10 Mpa Linear Range ≥ 103 Instrument Linearity ≥ 0.999 Quantitative Repeatability ≤ 1.0 % Qualitative Repeatability ≤ 1.0 %
Eluent Generator	Eluent Type KOH/ NaOH Eluent Concentration Range 0.1 to 100 mM Concentration Increment 0.1 mM Flow Rate Change 0.1 to 3.0 ml/ min Maximum Pressure 20 Mpa Minimum Pressure 5 Mpa
HS Code	9027201200
Power	150 W
Power Supply	DC 220 V, 60 Hz
Dimension	500 × 500 × 760 mm
Net Weight	48 kg
Gross Weight	73 kg

Features :

• Controlled by temperature, bipolar conductivity detector
• Provides an advanced thermal buffer system for eluent
• Equipped with an autosampler
• Crafted with a PEEK material ion chromatographic pump
• Facilitates the integration of One key step to finish the flow path switch

Optional Accessories :

Anion column

---

Guard column

---

Anion suppressor

---

UV detector

---

Ampere detector

---

Auto sampler (108) samples

Applications :

It is widely used in various scientific disciplines, including environmental analysis, pharmaceutical research, water quality monitoring, and industrial applications.
