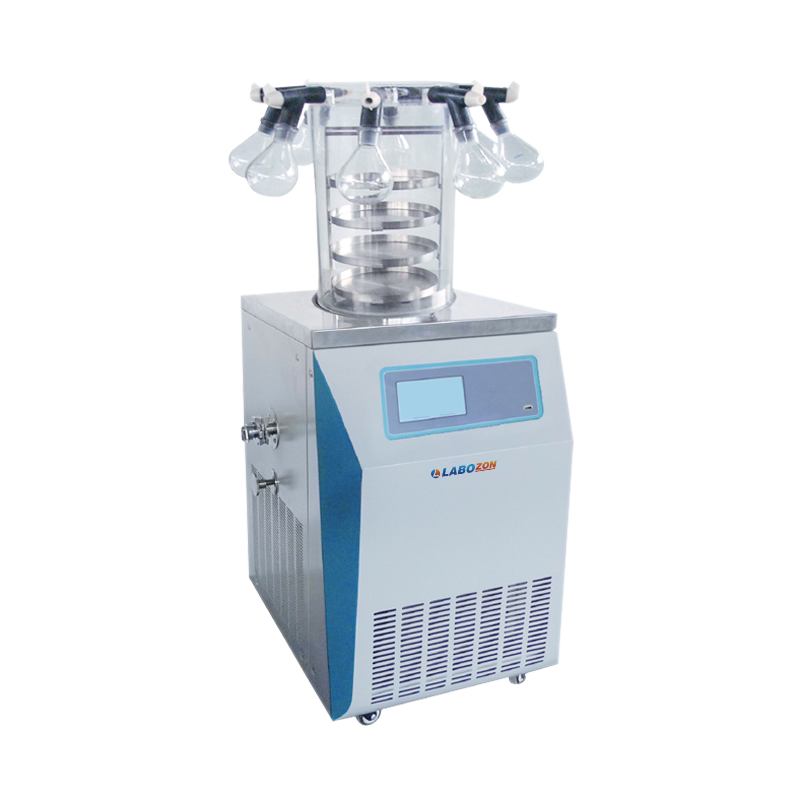

Manifold Freeze Dryer LZ-MFD-A120

Manifold Freeze Dryer LZ-MFD-A120

www.labozon.com | info@labozon.com

Overview

Manifold Freeze Dryer LZ-MFD-A120 is a compact table-top unit with 6 kg condenser capacity and condenser temperature options of ≤-56°C and - 80 °C for specimen’s containing solvents. It allows larger glassware like flasks to be dried independent of the shelving units. Flasks can be added and removed independently without disturbing the surrounding flask’s activity. Optional oil mist filtration system and vacuum pump oil return device helps in maintenance of vacuum pressure and prevention of oil leakage.

Specifications :

Cold trap Temperature	≤-56°C , ≤- 80 °C ( Optional)
Condenser Capacity	6 kg / 24 h
Condenser depth	400 mm
Condenser diameter	Φ 270 mm
Freeze Drying Area	0.27 m²
Flask capacity	100 / 250/ 500/ 1000 ml
Ultimate vacuum	≤5 pa
Drying Chamber size	Φ300 x 465 mm
Cooling	Wind cooled
Drying	Air cooled
Bulk Capacity	4 L
Display	LCD
Shelves	6
Shelves Dimension	Φ 240 mm
Shelves spacing	70 mm
Material Capacity	2.7 L (thickness 10 mm)
Power	1400 W
Dimensions	630 x 580 x 970 mm (≤-56°C) , 810 x 580 x 950 mm (≤- 80 °C)
Net weight	105 kg

Features :

Ice condenser capacity is 6 kg / 24 h
Condenser temperature ≤-56°C, ( - 80 °C Optional)
Vacuum pump oil return
Oil mist filtration system
Clear acrylic door for easy product viewing during processing
Easy to clean and anti-corrosion cold trap and operating table
Display of sample temperature, vacuum curve degree, cold trap temperature curve
