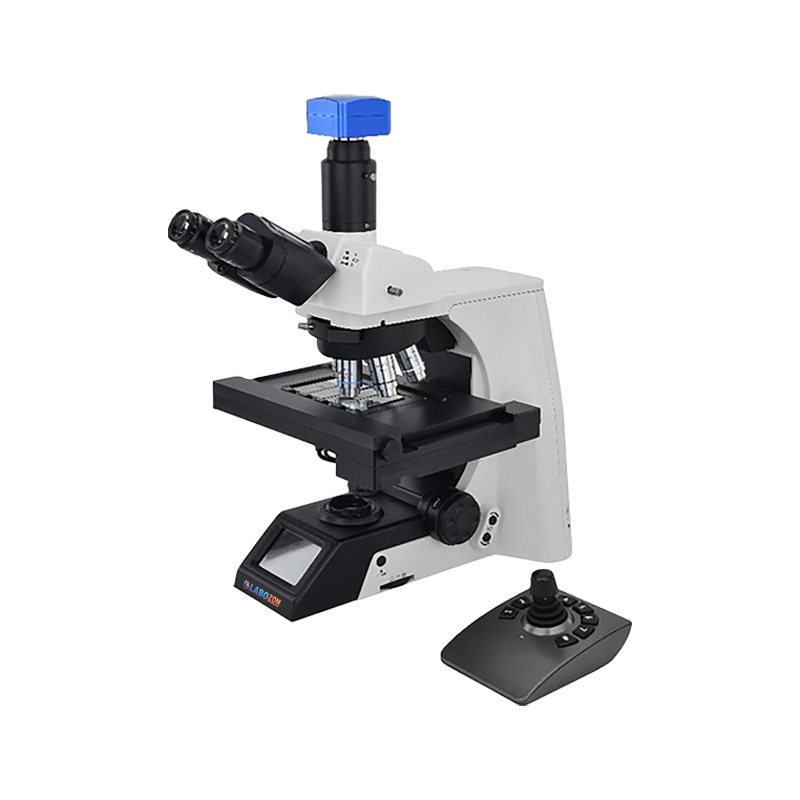

Motorized Automatic Biological Microscope LZ-MBM-A100

Overview

Motorized Automatic Biological Microscope LZ-MBM-A100 has a design of Sidentopf Trinocular head, 30° inclined, interpupillary distance 47 to 78 mm. Features N-PLN Plan Objectives, motorized X-Y stage and nosepiece, auto focusing, touch screen controller and powerful software. Semi-APO objectives and B, G, U, V, R fluorescent filters are available. Magnification and illumination information can be obtained through LCD touch screen. With perfectly performed structure, high-definition optical image and ergonomically operations, this microscope realizes professional analysis and meet all the needs of research in biological, medical, life science and other fields

Specifications :

Optical System	NIS60 Infinite color collected optical system
Viewing Head	Seidentopf type, Trinocular Head, inclined at 30°,Interpupillary 47-78 mm splitting ratio Eyepiece: Trinocular=100:0 or 20:80 or 0:100
Eyepiece	Super wide field plan eyepiece SW10X/25mm,diopter adjustable
Nose piece	Motorized Backward Sextuple Nosepiece (with DIC slot)
Objective	N-PLN Plan Objective4X, 10X,20X, 40X, 100X
Stage	High-precision motorized X-Y double layers mechanical stage, size 275 X 239 X 44.5 mm; travel: X axis, 125mm; Y axis, 75mm. Repeat positioning accuracy ±1.5μm, maximum speed 20mm/s
Condenser	Universal Condenser (4X-100X)
Focusing	Low-hand Motorized auto focusing mechanism, independent operation of left- and right-hand wheels, three-speed speed adjustment, focusing range 30mm, repeat positioning accuracy: 0.1μm, motorized escape and recovery mechanism
Illumination	3W S-LED lamp, centre pre-set, intensity adjustable
Control Handle	3D control handle, 4 gears speed
Controller	Communication interface: USB2.0 and RS232
Reflected Mercury Fluorescence Attachment (Optional)	Turret with 6 filter block cubes position, with iris field diaphragm and aperture diaphragm, central adjustable; with filter slot and polarizing slot; with fluorescence filters (B,G fluorescent filters)100W mercury lamp house, filament centre and focus adjustable; with reflected mirror, mirror centre and focus adjustable, Digital power controller, wide voltage 100-240VAC
Reflected Fluorescence Illuminator (with mercury lamp) -Optional	Turret with 6 filter block cubes position, with iris field diaphragm and aperture diaphragm, central adjustable; with filter slot; with fluorescence B, G filters; 100W mercury lamp house, filament center and focus adjustable; with reflected mirror, mirror center and focus adjustable. Digital power controller, wide voltage 100-240VAC
Dimensions	770 x 505 x 555 mm
Net Weight	52 kgs
Gross weight	55 kgs

Features :

• Sidentopf Trinocular head, 30° inclined, interpupillary distance 47 to 78 mm
• Designed with Motorized Backward Sextuple Nosepiece
• Adopt line motor and screw driving mode
• Super Wide field eyepiece SW10X/25 mm, dioptre adjustable
• N-PLN Plan objective 4X, 10X, 40X, 100x
• Optional Tilting Trinocular head and Reflected Fluorescence Illuminator (with mercury lamp)
• Universal Condenser (4X-100X)
• Microscope has the function of motorized rotating nosepiece with the 2 buttons
• Long-life LED light source ensures uniform brightness while is easy to maintain
• 6 filter blocks can be installed in the turret, allowing users to view different stained specimens with a turret
• Controlled by the control handle and software

Standard Accessories :

0.5X C-mount Adapter
Dust cover
Power cord
Cedar oil(5ml)

Optional Accessories :

Reflected Fluorescence Illuminator (with mercury lamp)
Reflected LED Fluorescence Attachment

Applications :

This motorized automatic microscope is an ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
