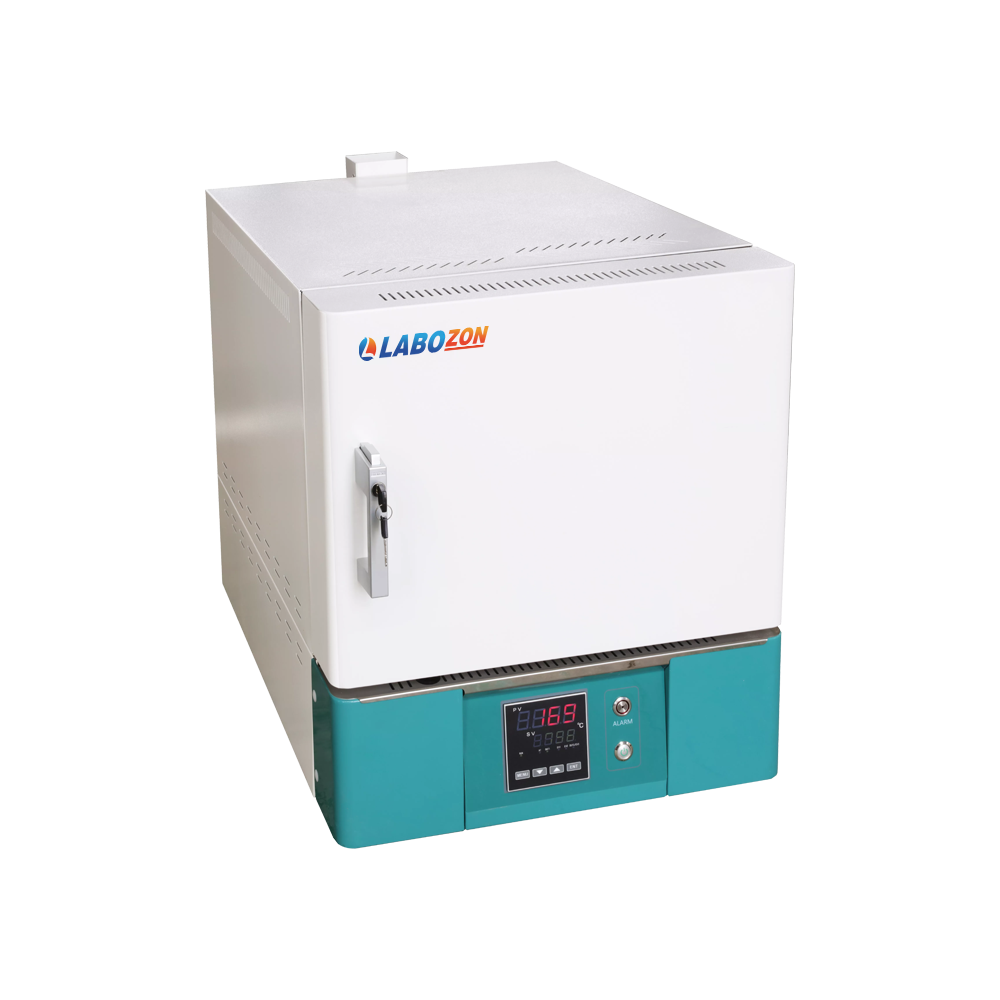

Muffle Furnace LZ-MFF-C110

Overview

Muffle Furnace LZ-MFF-C110 is a microprocessor controlled furnace with 1200°C maximum temperature. Furnace is made of high quality alumina ceramic fibre and is efficiently designed for minimal space requirement in the laboratory. It features heating elements such as fixed temperature operation, timing function and auto stop. It has the functions of sensor deviation correction, high temperature alarms, locking internal parameter etc. Built with a dual layer housing characterized by excellent repeatability Temperature Control Accuracy at +/- 1 ℃. Made with excellent thermal insulation effect. Dual-layer housing protects the external surface from minimum heat loss.

Specifications :

Maximum Capacity	7 L
Inner Chamber Dimensions	200 x 300 x 120 mm
Functional Paramters	Temperature Range 100 - 1200°C Resolution 1°C Accuracy +/- 1 ℃ Temperature rising Time ≤30min
Structure	Chamber Material Ceramic Fiber Outer shell Cold rolling steel electrostatic spraying exterior Insulation Layer Ceramic Fiber Heater Alloy Heating Wire Exhaust Hole Ø30 mm ( Chimney size 80 x 60 mm)
Temperature Controller	Control Mode Single stage temperature controller Setting Mode Touch button setting mode Display Mode Measuring temperature: LED upper row Setting temperature: Lower row
Sensor	K type
Power Supply	AC220V/50/60Hz
Current	13.6A
External Dimensions	530 x 785 x 640 mm
Packing Dimensions	660 x 875 x 770 mm
Net Weight	45 kg
Gross Weight	50 kg

Features :

• Offer accurate measurement and temperature control, high precision K type sensor
• Furnace is made up of high quality alumina ceramic fiber
• Built with thermal insulation effect, light weight, and will not slag, will not crystallize when used for a long time
• Offers Microprocessor based self-tuning PID control
• Dual layer housing to protect the heat loss over the external surface
• Adopts 3 different alloy wire heating modes
• Imported double insulated ceramic liner, stable performance
• Double shell, insulated air sleeve, double guiding air passage
• Import time control system and high precise sensor
• Exhaust devices benefits ashing
• Spilt design, circuit detachable, easy to maintenance and repair
• Features security door lock, alarms for high temperature, door opening electrical outage, thermocouple failure safety
• Additional features include sensor deviation correction, Temperature overshoot self tuning, internal locking of parameters, power off parameter memory

Applications :

Muffle Furnace is used in many research centers, medical laboratories to determine the non-volatile and non-combustible proportion of the sample. The testing device is also used for highly sophisticated metallurgical applications.
