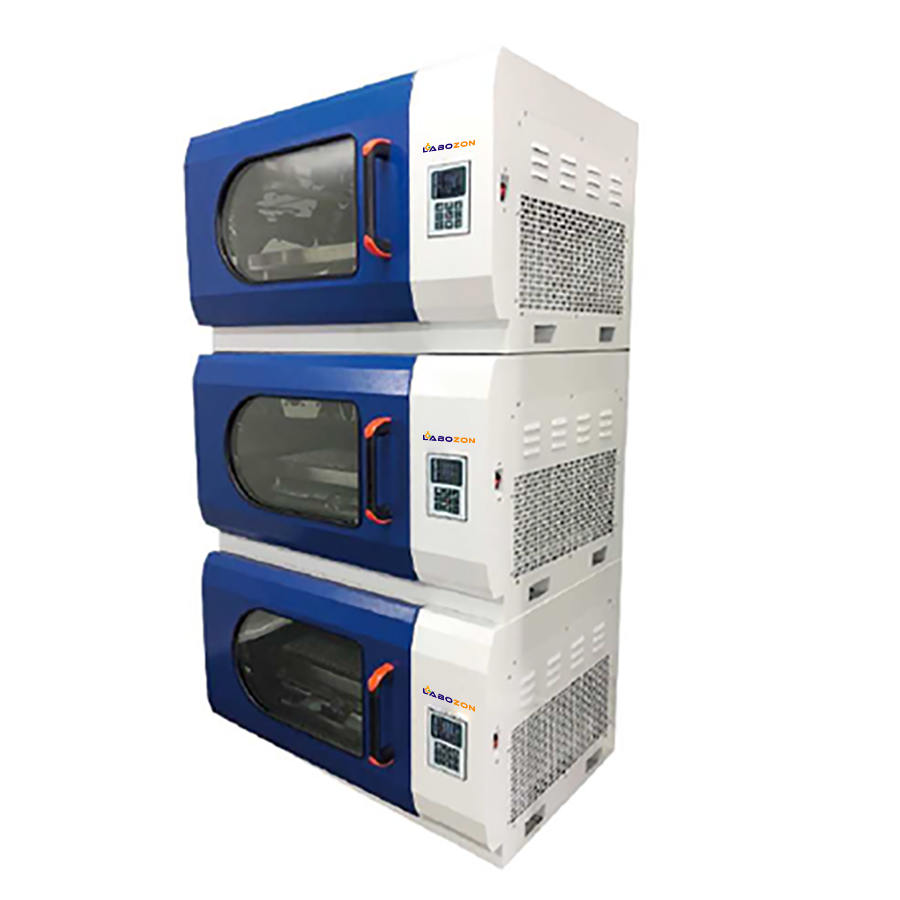

Floor Bacterial Culture Shaker Incubator LZ-BC2

Overview

LZ-BC2 Bacterial Culture Incubator Shakers provide excellent incubation conditions for bacterial culture, having controlled heating temperature between 4°C to 60°C. Available in horizontal and vertical oscillating methods which usually have operating timing function 0 to 999.9 hours with small and large cabin volumes of 160 L, which have oscillation band range of 30 to 350 rpm with built-in UV sterilization system along with integrated fan to reduce the background heat and save energy.

Specifications :

Control Interface	LCD touch screen
Oscillating Transition Band Range	30 – 350 rpm
Speed Control Accuracy	1rpm
Amplitude	26mm or 50mm optional
Temperature Control Mode	PID control mode
Temperature Control Range	4°C - 60°C
Temperature Display Resolution	0.1°C
Temperature Fluctuation	±0.1°C
Temperature Field Uniformity	±0.5°C
Heating Power	550 W
Cooling Power	250 W
Timing Function	0 to 999.9 hours
Bracket Size	590x465 mm
Maximum Carrying Capacity	35 kg
Maximum of Conical Flask Loaded	35x250 ml; 24x500 ml; 15x1000 ml; 8x2000 ml
Cabin Volume	160 L
Illumination	FI lamp tube, 30watts
Humidity Display	Real-time humidity display
UV Sterilization	Built-in
Working Environment Temperature	5°C to 40°C
Power Supply	220-240/50-60Hz
Dimensions	Single layer: 1000x720x615 mm (with base), Double layers: 1000x720x1220 mm (with base), Three layers: 1000x720x1825 mm (with base)
Weight	Single layer 145 kg

Features :

• Double glass door to ensure heat insulation and safety
• Door heating function prevents glass door from fogging
• Environmental protection and odor free-adhesive plate material
• Full mirror stainless steel arc angle integrated inner cavity
• Low operation noise
• Stable and durable fixtures to prevent fixture fractures
• Reduce in background heat due to integrated fan
• Push-pull rocking plate
• Water-proof inner cavity design
• Intuitive control and easy to operate
• Smart phone remote monitoring function
• Real-time view of running status of the machine
• Easy to clean and maintain
• Flexible placement, effective saving of placement space
• Clean humidification system to maintain culture humidity environment
• Coved interior corners
• Designed to minimize contamination
• Aluminum alloy oscillating plate
• One piece stainless steel fixture

Applications :

These devices are suitable for all kinds of Bacterial Cell Culture, R&D Labs, Scientific and Research Industries, Clinical and General Laboratory Cell Culture Applications etc.
