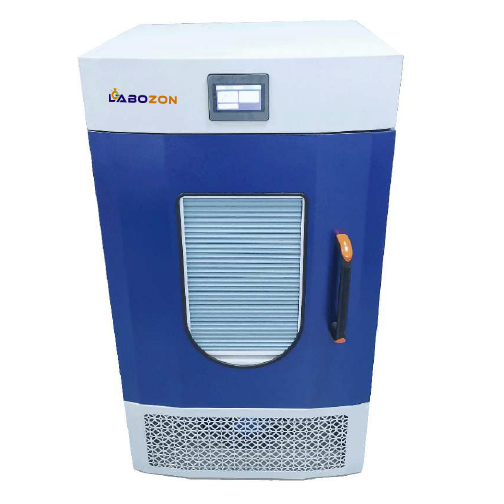

CO₂ Double Layer Shaker Incubator LZ-DSA100

Overview

CO₂ Double Layer Shaker Incubator LZ-DSA100 Shaking Incubator is developed for modern biological engineering departments. It is provided with 4.3-inch LCD touch screen panel clearly indicating all parameters in one page display. The oscillation transition band range is 30 – 300 rpm and a continuous timed operation from 0 to 999.9 hours with a working environment temperature of 5°C to 40°C. The heat is turned off if temperature fluctuation deviated ±0.1°C of set point. It is equipped with advanced features like smooth compact design, which is very efficient with an excellent floor space factor.

Specifications :

Control Interface	4.3 -inch LCD touch screen
Oscillating Transition Band Range	30 to 300 rpm
Speed Control Accuracy	1 rpm
Amplitude	26 mm or 50 mm optional
Temperature Control Mode	PID control mode
Temperature Control Range	4°C to 60°C
Temperature Display Resolution	0.1°C
Temperature Fluctuation	±0.1°C
Temperature Field Uniformity	±0.3°C
Heating Power	550 W
Cooling Power	250 W
Timing Function	0 to 999.9 hours
Bracket Size	500x500 mm
Maximum Carrying Capacity	35 kg
Maximum of Conical Flask Loaded	Single layer 25x250 ml; 9x500 ml; 24x1000 ml;15x2000 ml
Cabin Volume	310 L
Illumination	FI lamp tube, 30watts
CO₂ Measurement Principle	IR detection
CO₂ Control Range	0-20%
CO₂ Display Resolution	0-10%
CO₂ Measurement Accuracy	±1%FS
CO₂ Volatility	0.02%/°C
Volatility of Long Term use of CO₂	< 1%/2years
CO₂ Supply	0.05 to 0.1MPa is suggested
Humidity Display	Real-time humidity display
Shading Curtain	Built-in push pull shading curtain
UV Sterilization	Multiple sterilization system
Working Environment Temperature	5°C to 40°C
Power Supply	220-240/50-60Hz
Dimensions	700x780x1300 mm
Weight	171 kg

Features :

• LCD touch screen display
• Intuitive control and easy to operate
• Built-in push pull type shading curtain
• Smart phone remote monitoring function
• Real-time view of running status of the machine
• Double glass door to ensure excellent heat insulation and safety
• Multiple sterilization system
• Odor free adhesive plate material and environmental safety
• Frosted stainless steel arc angle integrated cavity
• Easy to clean and maintain
• Low noise operation
• Integrated fan greatly reduces background heat and saves energy
• Push-pull aluminum alloy shake plate
• Water-proof design of inner cavity for easy cleaning
• Flexible placement, effective saving of placement space
• Clean humidification system to maintain culture humidity environment
• Coved interior corners
• Designed to minimize contamination
• Door heating function effectively prevents glass door from fogging
• Integrated fan reduces background heat and saves energy
• Internal double layer oscillating plate, effectively expanding culture space

Applications :

These devices are suitable for all kinds of Cell Culture, Animal Culture, R&D Labs, Scientific and Research Industries, Clinical and General Laboratory Cell Culture Applications etc.
