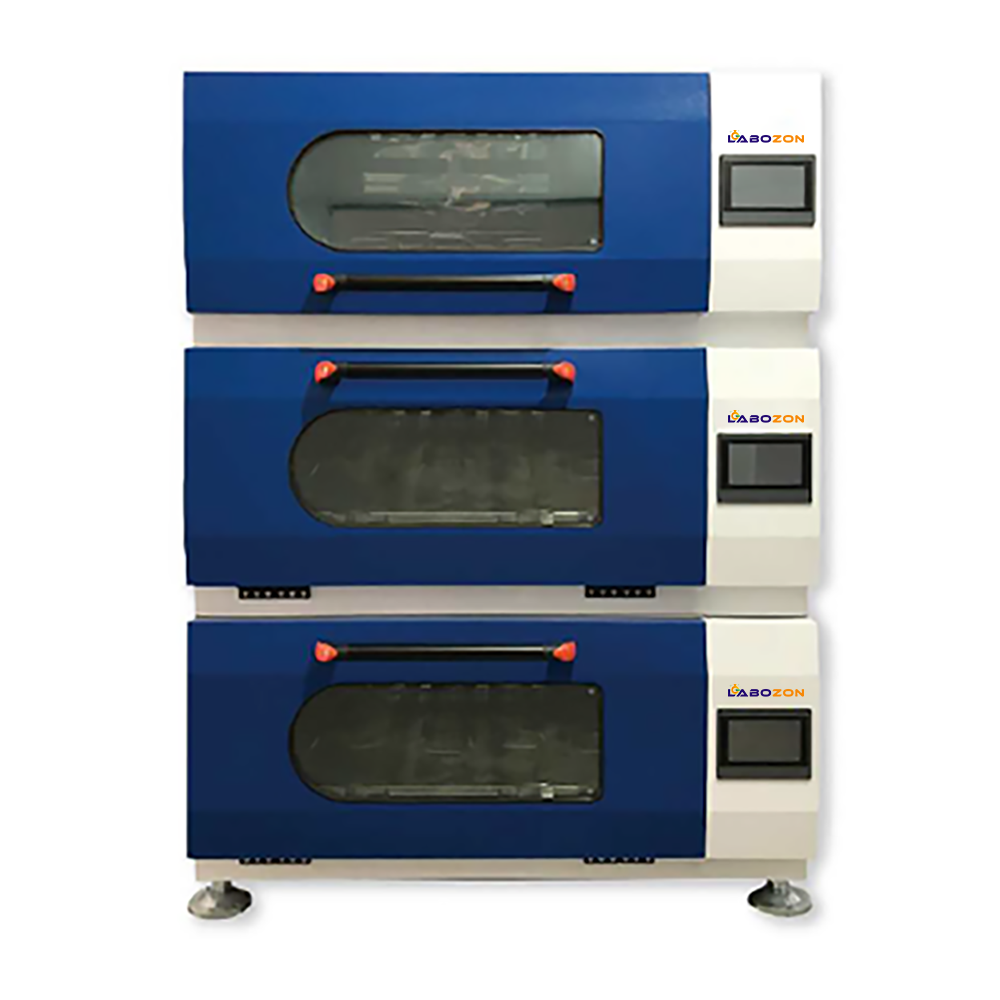

High Precision Shaker Incubator LZ-H101

Overview

LZ-H101 a high precision temperature control makes this unit ideal for molecular biology applications. It is equipped with a 7-inch LCD touch screen panels clearly indicating all parameters in one page display. The oscillation transition band range is 30 to 300 rpm and a continuous timed operation from 0 to 999.9 hours with a working environment temperature of 5°C to 40°C. The heat is turned off if temperature fluctuation deviated ±0.1°C of set point and with UV sterilization, ensures every corner is effectively sterilized with this unit.

Specifications :

Control Interface	7-inch LCD touch screen
Oscillating Transition Band Range	30 to 300 rpm
Speed Control Accuracy	1 rpm
Amplitude	26 mm or 50 mm optional
Temperature Control Mode	PID control mode
Temperature Control Range	4°C to 60°C
Temperature Display Resolution	0.1°C
Temperature Fluctuation	±0.1°C
Temperature Field Uniformity	±0.3°C
Heating Power	750 W
Maximum of Conical Flask Loaded	60x250 ml; 40x500 ml; 24x1000 ml; 15x2000 ml
Dimensions	Single layer: 1370x830x610 mm (with base) Double layers: 1370x830x1210 mm (with base) Three layers: 1370x830x1810 mm (with base)
Cabin Volume	315 L
Illumination	FI lamp tube, 30 watts
UV-Sterilization	Build-in
Working Environment Temperature	5°C to 40°C
Cooling Power	280 W
Timing Function	0-999.9 hrs
Power Supply	220-240/50-60Hz
Bracket Size	550x900 mm
Maximum Carrying Capacity	50 kg
Weight	Single layer 220 kg

Features :

• 7-inch LCD touch screen display
• Intuitive control and easy to operate
• Built-in push pull type shading curtain
• Smart phone remote monitoring function
• Real-time view of running status of the machine
• Double glass door to ensure excellent heat insulation and safety
• Multiple sterilization system
• Odor free adhesive plate material and environmental safety
• Frosted stainless steel arc angle integrated cavity
• Easy to clean and maintain
• Low noise operation
• Integrated fan greatly reduces background heat and saves energy
• Push-pull aluminum alloy shake plate
• Water-proof design of inner cavity for easy cleaning
• Flexible placement, effective saving of placement space
• Clean humidification system to maintain culture humidity environment
• Coved interior corners
• Designed to minimize contamination

Applications :

These devices are suitable for all kinds of Cell Culture, Animal Culture, R&D Labs, Scientific and Research Industries, Clinical and General Laboratory Cell Culture Applications etc.
