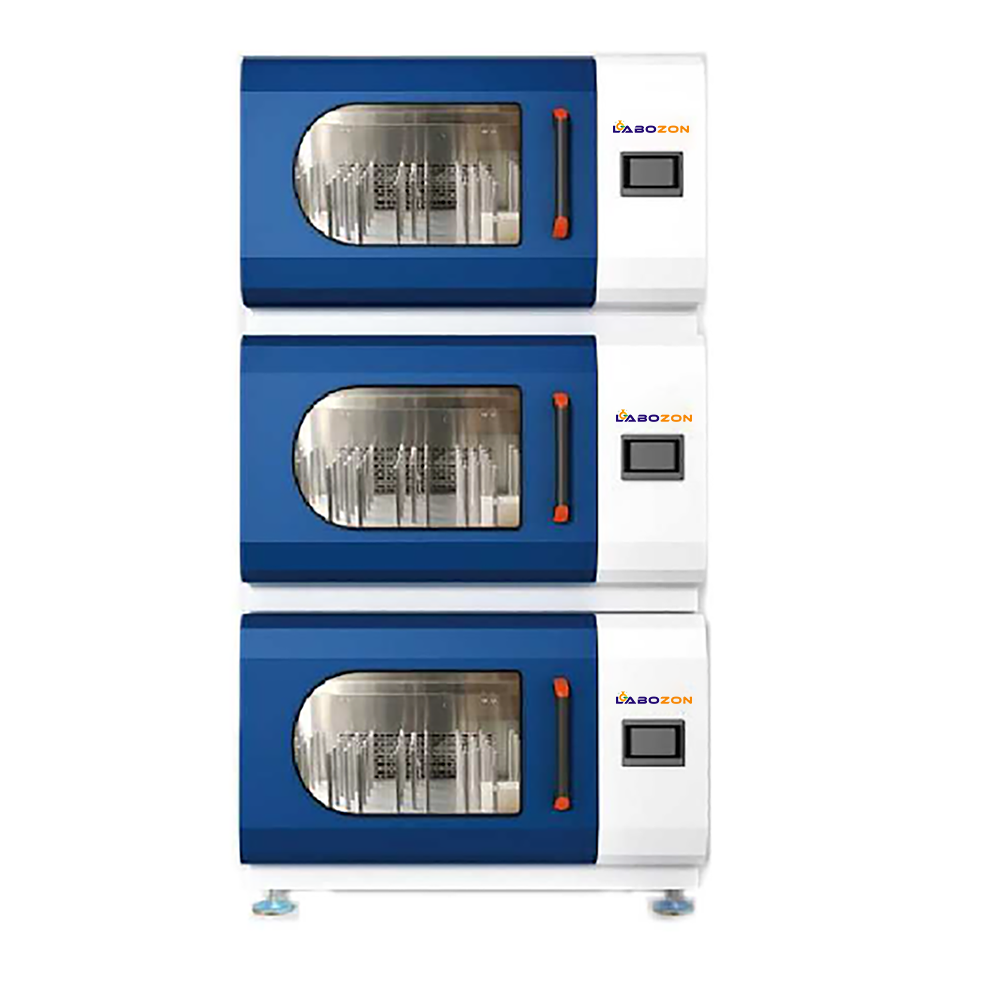

High Speed Shaker Incubator LZ-HS1

Overview

LZ-HS1 High Speed Incubator Shaker is built to be stacked on the floor without compromising the output. These are designed to maintain temperature from 4°C to 60°C, usually have operating timing function 0 to 999.9 hours with oscillating transition band range of 30 to 1000 rpm 350 rpm with built-in UV sterilization system along with integrated fan to reduce the background heat and save energy. It operate with high precision speeds for laboratory high throughput culture.

Specifications :

Control Interface	Push-button LED display
Oscillating Transition Band Range	30 to 1000 rpm
Speed Control Accuracy	1 rpm
Amplitude	3 mm
Temperature Control Mode	PID control mode
Temperature Control Range	4°C to 60°C
Temperature Display Resolution	0.1°C
Temperature Fluctuation	±0.1°C
Temperature Field Uniformity	±0.5°C
Heating Power	550 W
Cooling Power	250 W
Timing Function	0 to 999.9 hours
Bracket Size	590x465 mm
Maximum Carrying Capacity	35 kg
Dimensions	Single layer : 1000x720x615 mm, Double layer : 1000x720x1220 mm, Three layer : 1000x720x1825 mm
Cabin Volume	160 L
Illumination	FI lamp tube ; 30W
UV Sterilization	Built-in
Working Environment Temperature	5°C to 40°C
Power Supply	220-240V/50-60Hz
Weight	Single layer 145 kg

Features :

• Push button LED display Double glass door ensuring heat insulation and safety Low noise operation
• Door heating function prevents the glass door from fogging
• Intuitive control and easy to operate
• Built-in push pull type shading curtain
• Smart phone remote monitoring function
• Real-time view of running status of the machine
• Built-in UV sterilization system
• Odor free adhesive plate material and environmental safety
• Frosted stainless steel arc angle integrated cavity
• Easy to clean and maintain
• Integrated fan greatly reduces background heat and saves energy
• Water-proof design of inner cavity for easy cleaning
• Flexible placement mode, super imposed to 3 layers with effective saving of placement space

Applications :

This device is used in fields of Clinical, Science & Research, Microbiology Divisions, Material Technology and other laboratories etc.
