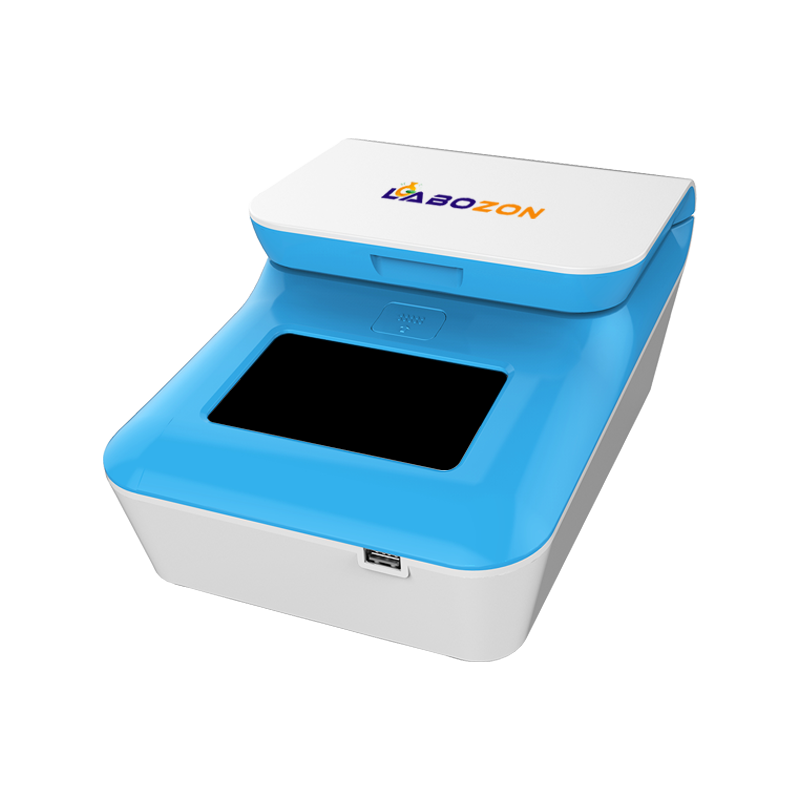

Q-Gene Thermal Cyclers LZ-TC-A11

Overview

Q-Gene Thermal Cyclers LZ-TC-A11 is on-demand equipment with Peltier heating units which can process more than 1000,000 cycles. It can accommodate 32×0.2 ml (4×8 layout) sample with 0.2ml single tube,8 strip. We have advanced configuration of windows operations system and 5-inches TFT color touch-screen with graphical display. This device can be applied across a temperature range of 4 to100 ℃ with maximum ramping rate is 5 ℃/s. It has unique approach to the user to secure his data using password and User Login method and use pre-installed 11 standard protocols. Offer with broad interfacing compatibility via USB, printer support.

Specifications :

Capacity	32×0.2 ml (4×8 layout)
Tube	0.2 ml single tube，8 strip
Temperature Range	4 to 100 ℃
Maximum Heating Rate	5 ℃/s
Maximum Cooling Rate	4 ℃/s
Uniformity	≤ ± 0.2 ℃
Accuracy	≤ ± 0.2 ℃
Display Resolution	0.1 ℃
Temperature Control	Block Tube
Ramping Rate Adjustable	0.1 to 5 ℃
Gradient Temp. Range	30 to 100 ℃
Gradient Spread	1 to 30 ℃
Hot Lid Temperature	30 to 110 ℃
Number Of Programs	10000 +(USB FLASH)
Maximum. No. Of Step	30
Maximum. No. Of Cycle	100
Increment/Decrement Time	1 Sec to 600 Sec
Increment/Decrement Temperature	0.1 to 10.0 ℃
Pause Function	Yes
Auto Data Protection	Yes
Holding	4℃
Touchdown Function	Yes
Long PCR Function	Yes
Computer Software	Yes
Mobile Phone App	Yes
Display	LCD
Interface	USB2.0 , WIFI
Power	200 W
Voltage	85 to 264 V AC,47 to 63 Hz
Dimensions(L×W×H)	267×190×115 mm
Weight	2.6 kg

Features :

• Uniform heating with 3 different temperature of the samples is achieved with Peltier heating units with more than 1,000,000 cycles
• It is well built with anodizing technology with aluminium block treatment which makes the durable and corrosion resistant
• Maximum heating rate is 5 ℃/s with temperature range of 4 to 100 ℃
• It has the capability to accommodate 16×0.2 ml (4×4 layout) and 32×0.2 ml (4×8 layout) with moveable hot lid which can fit different sizes of tubes
• It has the internal flash memory to store the 10000 files data for analysis
• The connectivity between computer is via USB port and mini printer and can store the GLP data after every step to get reliable results
• All the operations are controlled by a computer software system which instrument PCR protocols and also has in built 11 standard protocols
• It has power of operation recovery option which helps in continuing the same command after a recovering from power cut
• The user can access to his individual experimental data by setting a password and data management system
• To satisfy the customers need it is installed with special feature like the user can add sample while the process is going on to encounter different variations
• The user will be sent notifications via email about the process to alert when operation ends

Applications :

Used in Gene expression analysis
Pathogen detection
DNA methylation analysis
Genotyping and gene scanning
miRNA research etc.
