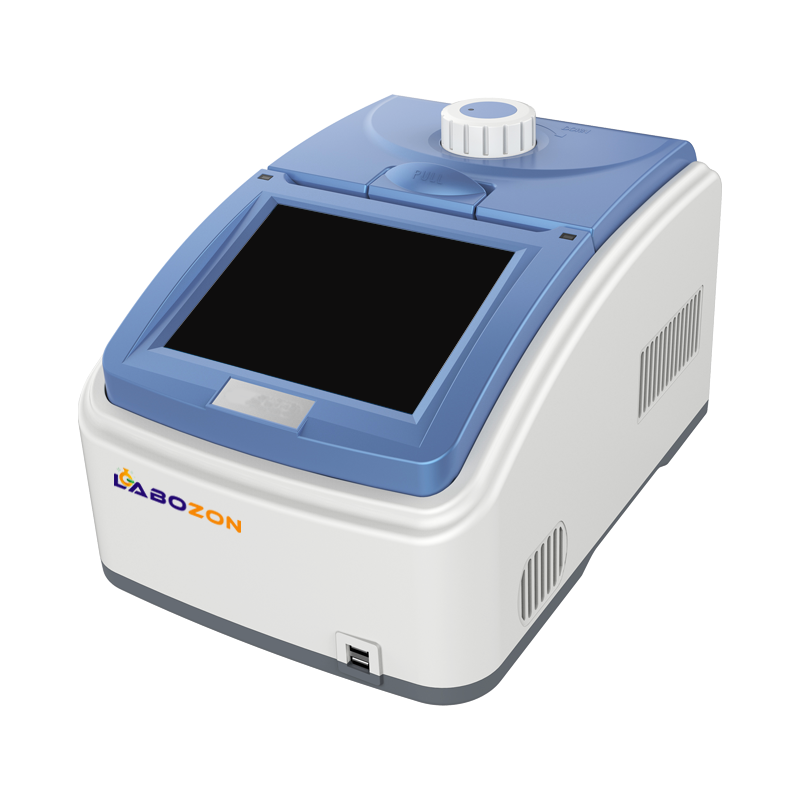

Q-Lab Thermal Cyclers LZ-TC-A20

Overview

Q-Lab Thermal Cyclers LZ-TC-A20 has high precision 6 Peltier heating units to heat up the sample with 3 variations in temperature which can process more than 1000,000 cycles. It can accommodate 120×80 mm wells or tubes. Continual information on the device’s status is seen on graphical 8-inches TFT colour touch-screen. Sophisticated operating concept with windows operations system for error free processing of samples. This device can be applied across a temperature range of 0 to 100 ℃ with maximum ramping rate is 4 ℃/s. The user can secure his data using password and User Login method and use pre-installed 11 standard protocols. The files can be transferred via USB, printer support. It can data in the10,000 files data in internal flash memory.

Specifications :

Capacity	120×80 mm
Temperature Range	0 to 100℃
Heating Rate	4 ℃/s
Cooling Rate	3 ℃/s
Uniformity	≤ ± 0.2 ℃
Accuracy	≤ ± 0.1 ℃
Display Resolution	0.1 ℃
Temperature Control	Block\Tube
Ramping Rate Adjustable	0.1 to 4 ℃
Hot Lid Temperature	30 to 110 ℃
Hot Lid Height Adjustable	Step less Adjustable
Number of Programs	10000+(USB FLASH)
Maximum. No.of Step	30
Maximum. No.of Cycle	100
Increment/Decrement Time	1Sec to 600 Sec
Temperature. Increment/Decrement	0.1 to 10.0 ℃
Pause Function	Yes
Auto Data Protection	Yes
Holding	4℃
PCR experiment	Yes
Print	Yes
LAN to computer	Yes
Display	LCD
Interface	USB2.0,LAN
Power	600 W
Voltage	85 to 264 V AC,47 to 63 Hz
Dimensions(L×W×H)	390×270×255 mm
Weight	9.0 kg

Features :

• It has graphical 8-inches touch screen display which enables the user to change the commands
• Uniform heating with 3 different temperature of the samples is achieved with Peltier heating units with more than 1,000,000 cycles
• It is well built with anodizing technology with aluminum block treatment which makes the durable and corrosion resistant
• Maximum heating rate is 4 ℃/s with temperature range of 0 to 100 ℃
• It has the capability to accommodate 120×80 mm wells with moveable hot lid which can fit different sizes of tubes
• It has the internal flash memory to store the 10000 files data for analysis
• The connectivity between computer is via USB port and mini printer and can store the GLP data after every step to get reliable results
• All the operations are controlled by a computer software system which instrument PCR protocols and also has in built 11 standard protocols
• It has power of operation recovery option which helps in continuing the same command after a recovering from power cut
• The user can access to his individual experimental data by setting a password and data management system
• To satisfy the customers need it is installed with special feature like the user can add sample while the process is going on to encounter different variation
• The user will be sent notifications via email about the process to alert when operation ends

Applications :

Used in Gene expression analysis
Pathogen detection
DNA methylation analysis
Genotyping and gene scanning
miRNA research etc.
