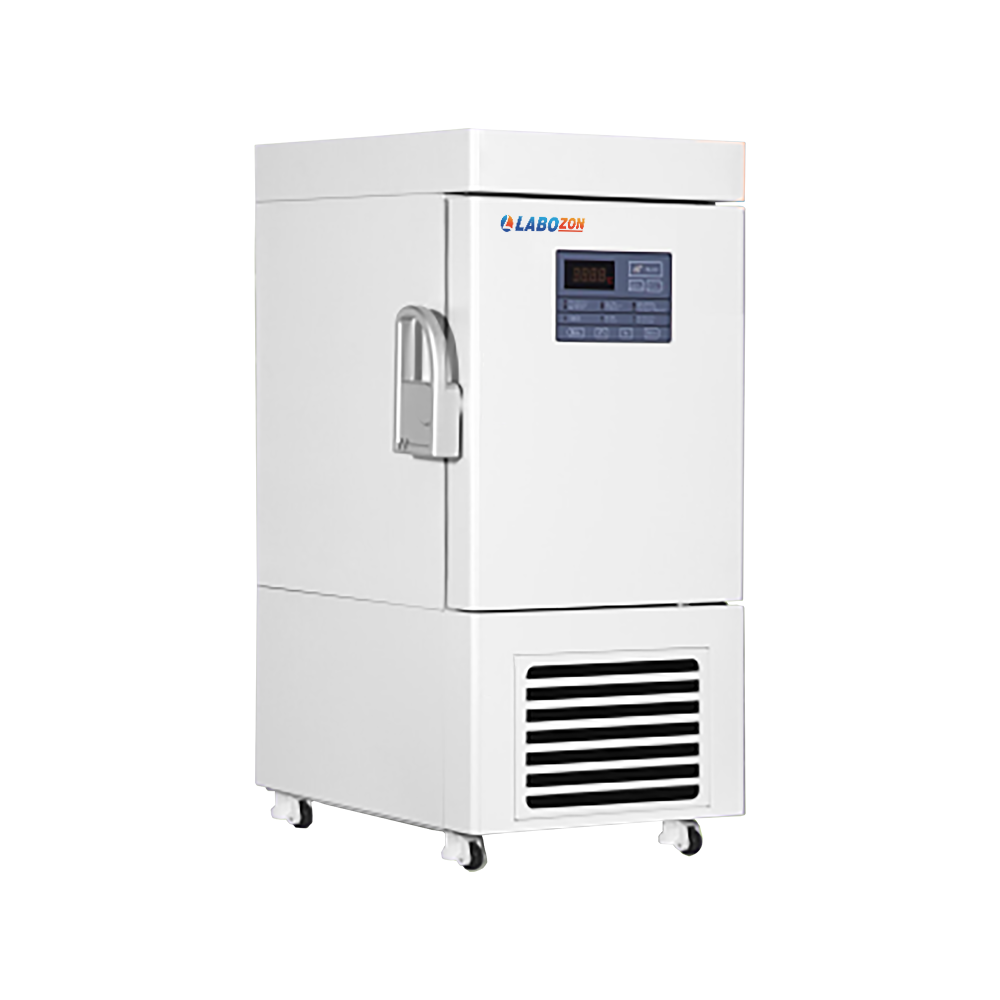

-86°C Upright Ultra Low Temperature Freezer LZ-ULF-A160

Overview

-86°C Upright Ultra Low Temperature Freezer LZ-ULF-A160 design for cryogenic applications with a holding capacity of 58 L storage at -86°C. The new generation ultra-low temperature refrigeration system along with innovative LED to display various parameters easily. This upright design model used to store samples between -40 to -86°C to meet the requirement of excellent storage of samples. Designed with Manual Defrost mode, Mixture gas, direct cooling system and eco-friendly refrigerant system.

Specifications :

Capacity	58 L
Temperature Range	-40 to -86°C
Ambient Temperature	10 to 32°C
Cooling	Direct cooling
Controller	Microprocessor
Display	LED
Refrigerant	R40001
Defrost	Manual
Compressor	1pcs
Noise	50db
Alarm	High and low temperature, high ambient temperature, Power failure, sensor Ajar, Door Ajar, Thermostat Failure, Low battery etc.
Access Port	1pc. Ø 25 mm
Castor	Universal
Material	Internal- Foamed SUS304, external- Color sprayed steel
Samples/ Racks/ Boxes	Samples(2ml): 2400 Boxes(2inch): 24 Racks: 2 (6x2)
System	Auto- Cascade
Sensor	PTC 100
Power	442 W
Electrical Supply	220V, 50 to 60Hz
Internal Dimension(WxDxH)	330 x 453 x 410 mm
External Dimension(WxDxH)	635 x 757 x 1212 mm
Packing Dimension(WxDxH)	730 x 845 x 1400 mm
Net Weight	115 kg
Gross Weight	155 kg

Features :

• Designed with high-precision Microprocessor temperature control system
• Temperature ranges from -40 to -86˚C
• Digital LED display control system
• Freezer Racks/boxes for cryopreservation
• Platinum resistor temperature sensors ensure more precise temperature control
• Comes with foamed stainless steel internal chamber and Color sprayed steel on outer material
• Direct air circulation system with manual defrosting
• Design with safety door lock, ensuring secured sample storage, Easy to place log files
• Audible & visual alarm system high/low temperature, sensor failure, door open, and power failure
• Efficient in insulation and heat loss, achieving the purpose of energy saving
• Universal wheels easy for movement and fixation
• Powerful cooling system drives the unique mixed refrigeration system for fast cooling
• Stable, energy saving and easy maintenance

Optional Accessories :

Chart Recorder
Co2 Backup system
LN2 backup system
Datalogger
Gloves

Applications :

This upright ultra-low temperature freezer is especially used in cryogenic applications such as R&D, storage of vaccines, drugs, enzymes, tissue, and cell preparation purposes, and extent the lifetime of products.
