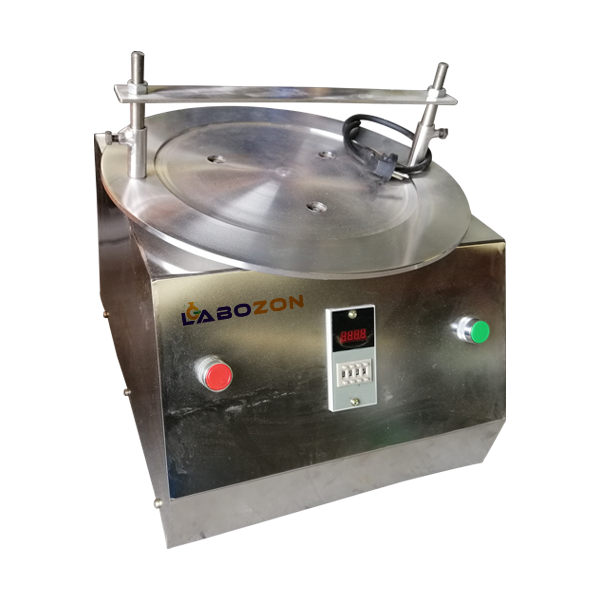

Vibratory Sieve Shaker LM-VSS-A203

Overview

Vibratory Sieve Shaker LM-VSS-A203 offer a quality testing instrument of compact and portable design used for separation of fine particle for screening the particle in pharmaceutical, mineral, and material testing, chemical and construction industries, Research application. Providing higher-quality products with quick delivery services. Provide uniform separation with high throughput, reliable, and standard product quality. The sieve shaker accommodates Test Sieve Capacity up to 300 mm along with speed 1440 rpm for fine particle separation with easy-to-read digital display features. This test sieve is made up of Stainless Steel SS304 and supported by a tray, and sieve cover for sample collection. Achieve smooth, fine, and effective screen assure safe and secure working.

Specifications :

Test Sieve Capacity	300 mm
Screening Area	0.0706 m2
Motor Speed	1440 rpm
No. Of Layer	1 to 7
Mesh Size	10 to 200
Mesh Material	Stainless Steel SS304
Noise	≤50
Power	150 W
Electrical Supply	220 V
External Dimension	360x300x376 mm
Weight	36 kg

Features :

• Long-lasting and Maintenance Free Vibratory Sieve Shaker, fast release holds down features
• Design with dual function mode reciprocating and rattling
• Used to screen the material without block, and complete screen
• The Vibratory Sieve Shaker designed for testing light to medium material application
• Offer reproducible, and effective sieving in the shortest possible time, reduce error
• Design with digital control display, up to 200, and 300 mm sieve capacity, for a precise and accurate result
• Built with a power generator to yield high-frequency vibration for screening the sample with efficient and convinces operation

Optional Accessories :

Sieve
1 Tray
Cover

Applications :

Used to analyze particle in pharmaceutical, mineral and material testing, chemical and construction industries, Research application.
