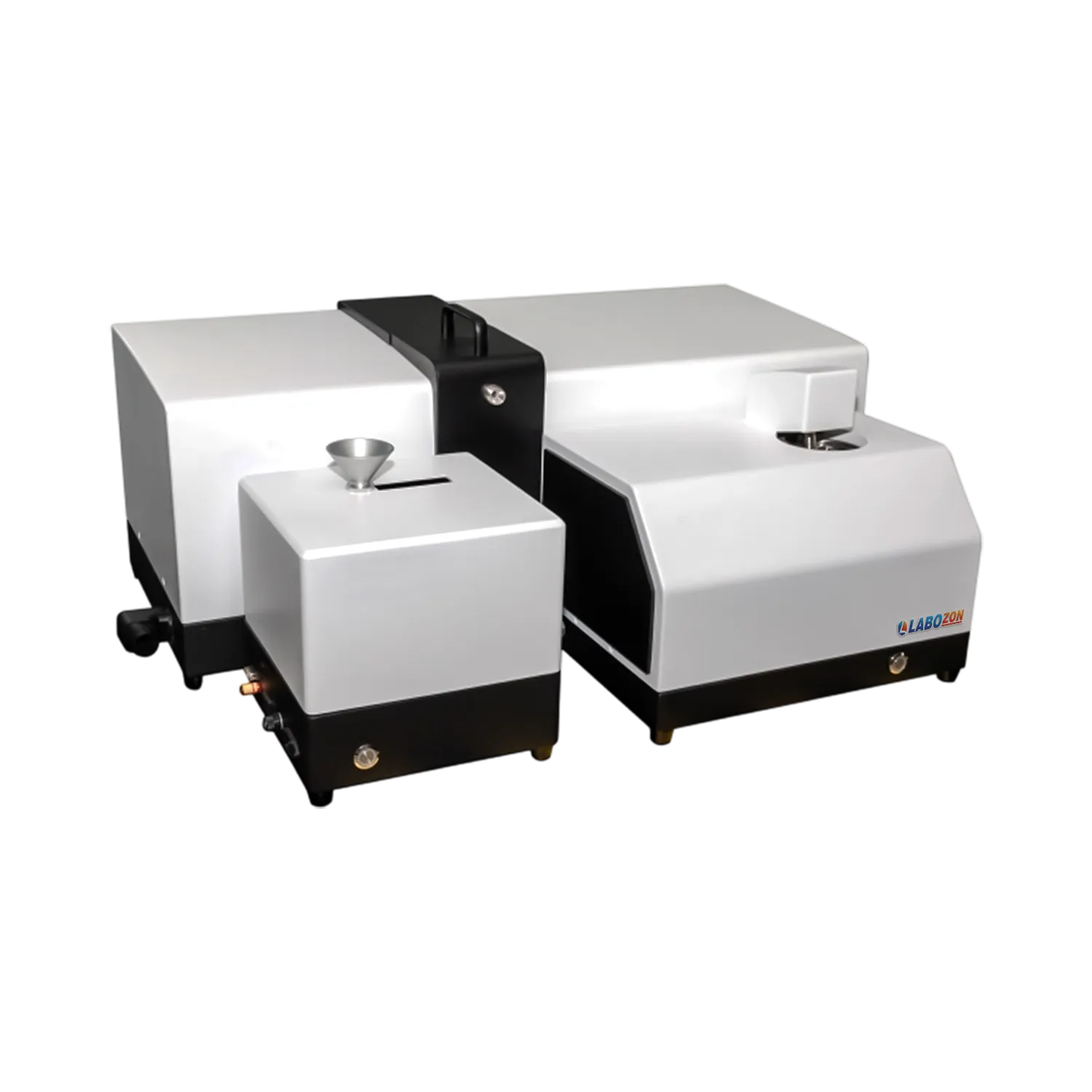

Laser Particle Analyzer LZ-LPA-A101

Name: Laser Particle Analyzer LZ-LPA-A101
Brand: Labozon
SKU: LZ-LPA-A101
Availability: InStock
Rating: 5.0 (826 reviews)

Laser Particle Analyzer LZ-LPA-A101 is an automated analytical system developed for accurate particle size distribution measurement across a wide measurement range. Combining wet and dry dispersion technologies within a modular platform, the instrument provides flexible analysis capabilities for powders, suspensions, emulsions and granular materials used in industrial and research environments. Utilizing advanced laser diffraction technology based on Mie and Fraunhofer scattering analysis, the system delivers reliable results. Widely suitable for laboratories requiring rapid, reproducible and high accuracy particle analysis across multiple industries.

Laser Particle Analyzer LZ-LPA-A101 - Specifications

Dispersion Type	Dry and Wet
Principle	Laser Diffraction
Measurement Range	Wet: 0.01-3500µm Dry:0.1-3000µm
Sample Injector	Wet: Module201 Dry: Module301
Channels	116pcs
Accuracy Error	Wet: <0.5% Dry:<1.0%
Repeatability	Wet: <0.5% Dry:<1.0%
Light Source	Main Laser: High performance laser λ=639nm, P>2Mw Auxiliary laser: Blue laser λ=405nm, P>2mW, Service life: >5000h
Optical Alignment	Automatic
Operation Mode	SOP fully automated
Dispersion	Dry Method: Turbulent dispersion automatic sample introduction, one click Wet Method: Ultrasonic, mechanical stirring, and built-in circulating dispersion Frequency: f=40KHz, Power: p=60W (Time adjustable) Stir: Revolutions speed: 0-3000rpm (Adjustable) Rated flow: 1L-8L/min, Rated Power: 120W
Sample Tank	600 ml
Speed	10s
Sampling Frequency	Fastest data acquisition rate of 10kHz
Software	Yes
Dimensions	Main Unit: 870 x 340 x 380 mm Wet Module: 415 x 280 x 335 mm Dry Module: 260 x 245 x 295 mm
Weight	Main Unit: 32 kg Wet Module: 15kg Dry Module: 7 kg

Laser Particle Analyzer LZ-LPA-A101 - Key Features

Wet and Dry dispersion
Advanced Laser diffraction system
Optical detection system
Fully automated operation
Precision optical path design
Automatic sample dispersion system

Laser Particle Analyzer LZ-LPA-A101 - Applications

Used for particle size distribution analysis in pharmaceuticals, chemicals, ceramics, mining, pigments, food, battery materials and advance material research
