Nitrogen Sample Concentrator LZ-NSC-A101

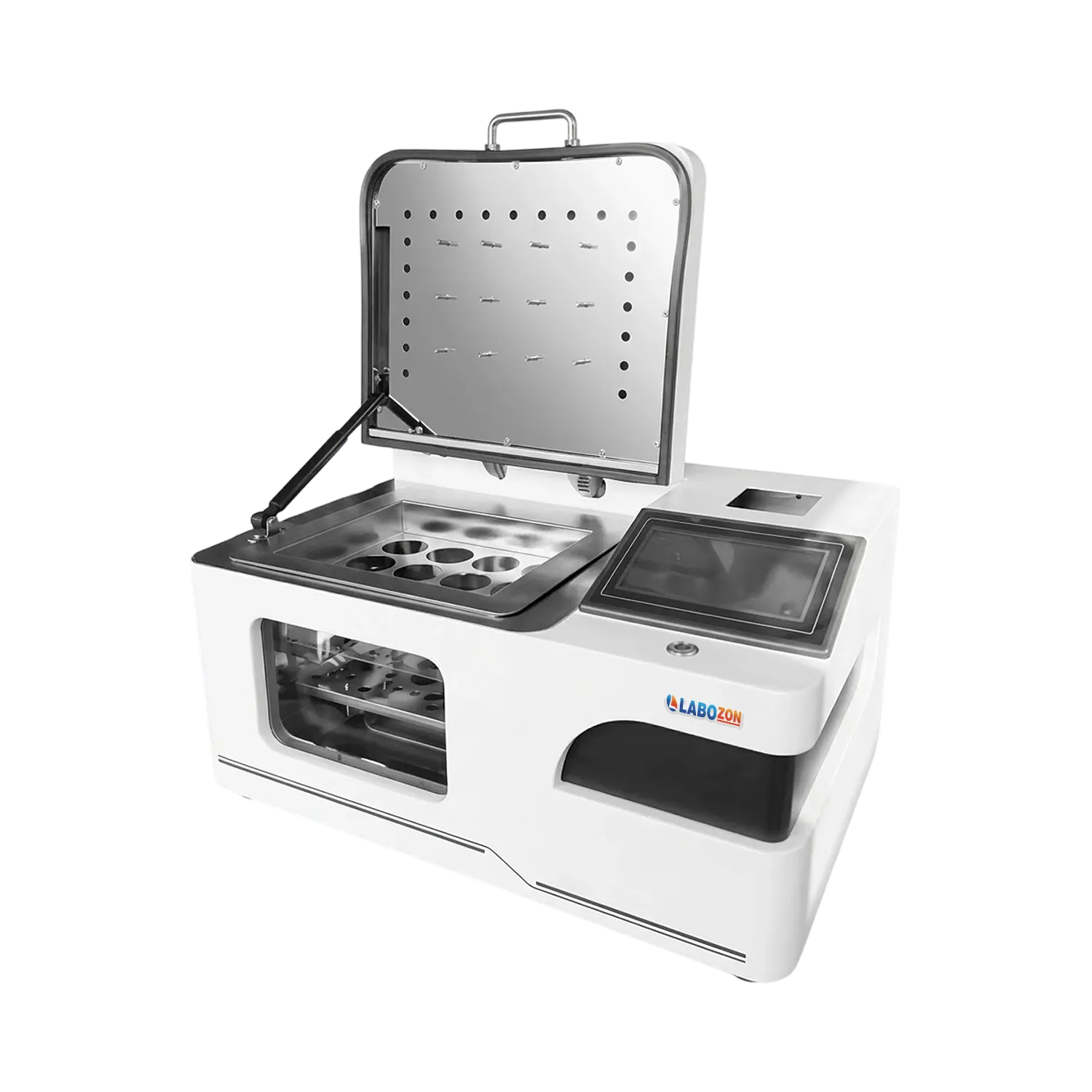

Nitrogen Sample Concentrator LZ-NSC-A101 is a fully automatic multi sample concentrator that processes up to 12 samples in parallel for automated volatile concentration in laboratory workflows. Its features 7-inch LCD touchscreen pairs with imported optical sensors for precise volume setting, a hydraulic double sealed door and circulating fan to prevent volatile leakage, independent volume and air pressure control for each channel, automatic water filling, timing and data storage. Nitrogen pre-heating supports controlled sample concentration while preventing cross contamination.

Nitrogen Sample Concentrator LZ-NSC-A101 - Specifications

Sample Capacity 1-12 samples
Vial Volume (Processing) 50/100/150/200 ml (optional)
Vial Volume (Fixed) Near dry 0.5/1/2ml (optional)
Number of Modes 3
Temperature Range RT-100 ℃
Temperature Accuracy ±0.5
Pre-Heating Up to 45°C
Air Pressure 0-0.8 Mpa
Heating Method Heated Water Bath
Timer 0-999 min
Adjustment Range 12 -digit independent
Alarm Function Yes
Exhaust System Built-in exhaust fan
Power Supply 220V 50Hz
Packing Dimensions 200 x 300 x 350 mm
Gross Weight 28 kg

Nitrogen Sample Concentrator LZ-NSC-A101 - Key Features

Nitrogen Sample Concentrator LZ-NSC-A101 - Applications

Nitrogen Concentrator is designed for laboratories seeking fast, reliable, and consistent sample concentration Its precise control, efficient operation, and safe sample processing makes it an reliable instrument for modern research, analytical, and industrial environments.
