Auto Chemistry Analyzer LZ-ACA-A104

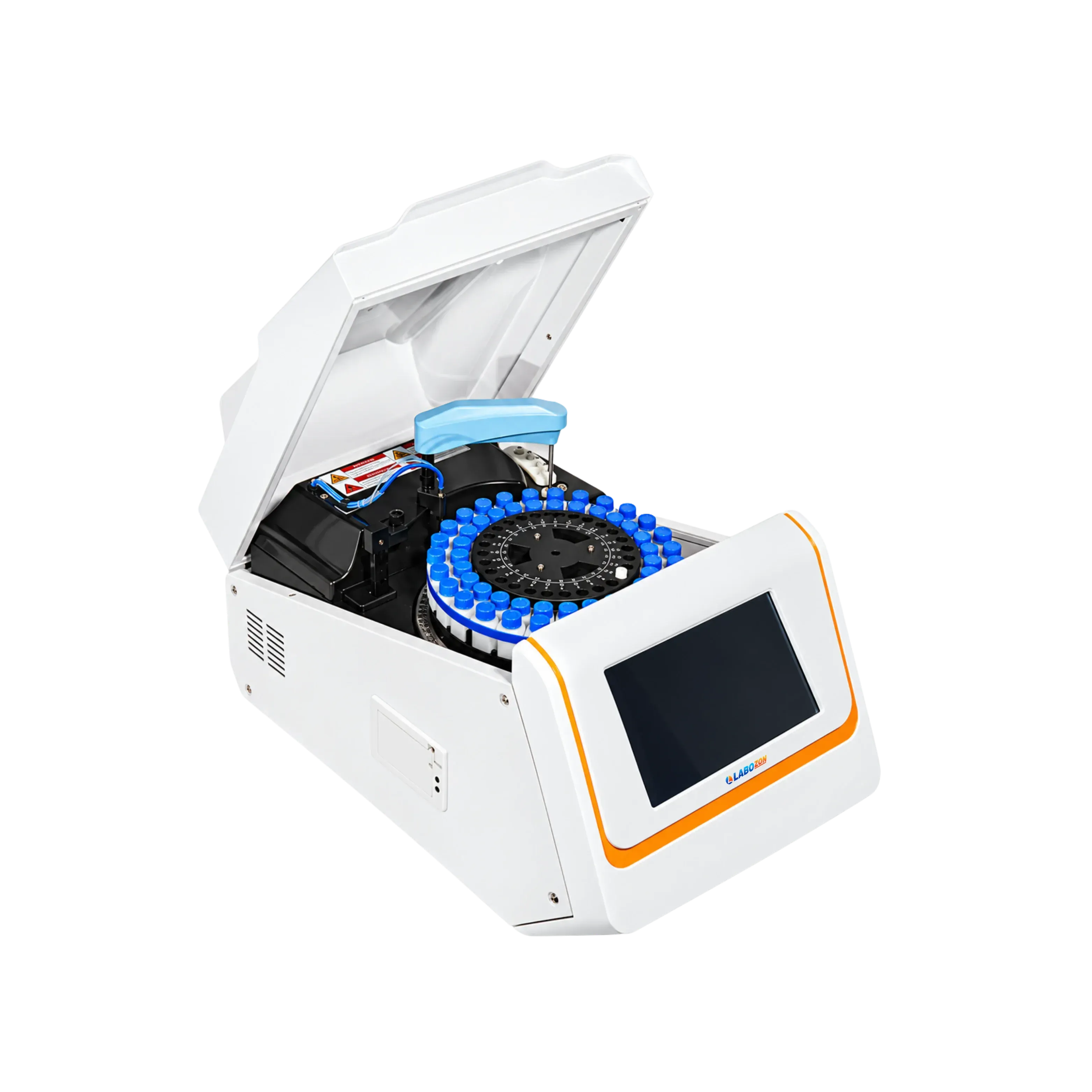

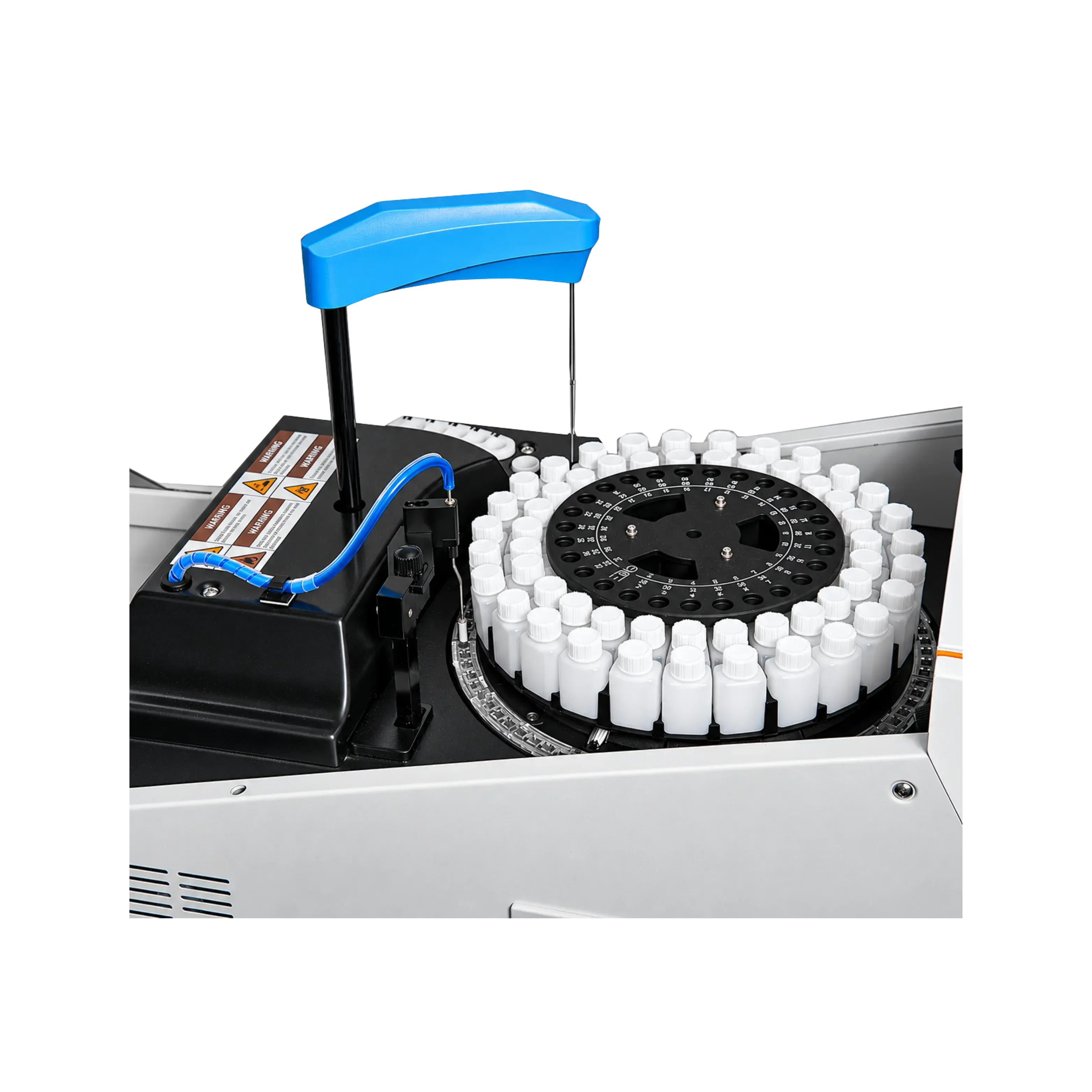

Labozon LZ-ACA-A104 is a fully automated chemistry analyzer that can run 120 tests/hour for clinical, hospital and research labs. It supports kinetic, end-point, fixed-time, turbidimetric and absorbance methods at eight wavelengths from 340 to 700 nm with a long-life LED lamp. It has 54 reagent positions, 81 reusable cuvettes and a 7-inch color touch screen that requires no PC. It stores 10,000 results, prints on a built-in thermal printer and connects to a computer by an RS232 port.

Auto Chemistry Analyzer LZ-ACA-A104 - Specifications

Throughput 120 tests/hour
Sample Capacity 2 to 30 µL
Sample Positions 24 + 5 (original tubes)
Reagent Positions 54 (27 for 6 mL, 27 for 24 mL)
Reagent Volume 20–350 µL, 0.1 µL increments
Cuvette Positions 81, reusable
Wavelengths 340, 405, 450, 510, 546, 578, 630, 700 nm
Absorbance Range 0 to 4.000 Abs
Absorbance Precision 0.00001 Abs
Repeatability <1%CV
Carry Over <0.1%
Test modes Kinetic, end-point, fixed-time, turbidimetry, absorbance
Light source LED lamp, ≥10,000 hours
Calibration / QC / standard positions 1 / 1 / 1
Water Consumption 5 L/h (automatic washing mode); 2.5 L/h (disposable cuvette mode)
Display 7-inch color LCD touch screen
Printer Internal thermal printer
Data memory 10,000 sample results
Interface RS232, PC connection
Quality Control Curve X, SD, CV%, L-J
Operating Conditions Temperature 10°C ~ 30°C, Humidity: ≤85%
Power Supply 100~240VAC, 50/60Hz, 100VA
External Dimensions 305×605×330 mm
Packing Dimensions 770 x 440 x 510 mm
Net Weight 22 kg
Gross Weight 35 kg
Test List Liver function, Renal function, Lipids, Cardiacs and others

Auto Chemistry Analyzer LZ-ACA-A104 - Key Features

Auto Chemistry Analyzer LZ-ACA-A104 - Applications

Request a Quote

Labozon Auto Chemistry Analyzer runs clinical chemistry and biochemistry tests in hospital and diagnostic laboratories. Automated chemistry units transfer samples from loading racks to reaction cuvettes, dispense reagents, and measure absorbance for each parameter to generate results during routine multi-test analysis.

Semi Auto-Chemistry Analyzer

Labozon Semi-Auto Chemistry Analyzer covers routine biochemical tests where the bench has no automated loading in place. Serum or plasma gets pipetted into cuvettes by hand, reagents go in next, and the operator triggers the reading one batch at a time. A semi-auto analyzer works this way by design, taking a single sample through to a result before the next one starts. Lower daily test volumes work well with this pace, since each stage stays in the operator's hands.

Automatic Biochemistry Analyzer

Labozon Automatic Biochemistry Analyzer organizes laboratory tasks by coordinating sample handling and analytical procedures. Testing procedures and data flow stay structured, ensuring smooth processing of tests in the lab. The biochemistry machine supports efficient operations, organized workflows, and orderly management of laboratory activities.
