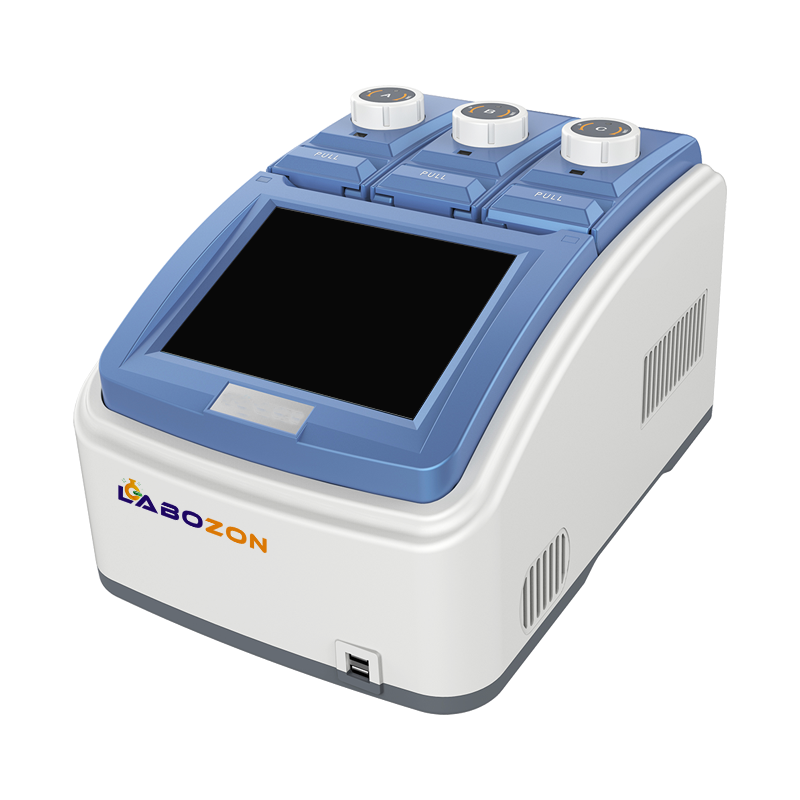

Trio Block Thermal Cyclers LZ-TTC-T10

Overview

Trio Block Thermal Cyclers LZ-TTC-T10 have designed 6 Peltier heating units to heat up the sample with 3 variations in temperature specifically to enhance PCR efficiency and accuracy. This device can process more than 1000,000 cycles and can save 10000 PRC run data. It is equipped with a graphical 8-inches TFT color touch-screen which is a friendly graphic user interface. With flexible ramp rate 5 ℃/s and gradient temperature control 0 to 100℃. The Wi-Fi function, USB, printer enables you to transfer PCR run files. It can accommodate 3× (32×0.2 ml) wells or tubes. It enables optimal operational settings with windows operations system and can monitor the operations via mobile connectivity.

Specifications :

Capacity	3×(32×0.2 ml )
Temperature Range	0 to 100℃
Heating Rate	5 ℃/s
Cooling Rate	4 ℃/s
Uniformity	≤ ± 0.3 ℃
Accuracy	≤ ± 0.2 ℃
Display Resolution	0.1 ℃
Temperature Control	Block Tube
Ramping Rate Adjustable	0.1 to 5 ℃
Gradient Temperature Range	NA
Gradient Spread	NA
Hot Lid Temperature	30 to 110 ℃
Hot Lid Height Adjustable	Step less Adjustable
Number Of Programs	10000 +(USB FLASH)
No. Of Step	30
No. Of Cycle	100
Increment/Decrement Time	1 Sec to 600 Sec
Temperature Increment/Decrement	0.1 to 10.0℃
Pause Function	Yes
Auto Data Protection	Yes
Holding	4 ℃
Touchdown Function	Yes
Long Pcr Function	Yes
LAN To Computer	Yes
Display	LCD
Interface	USB2.0 , LAN
Power	600 W
Voltage	85 to 264VAC , 47 to 63Hz
Dimensions(L×W×H)	390×270×255 mm
Weight	9 kg

Features :

• It has graphical 8-inches touch screen display which enables the user to change the commands
• Uniform heating with 3 different temperature of the samples is achieved with Peltier heating units with more than 1,000,000 cycles
• It is well built with anodizing technology with aluminum block treatment which makes the durable and corrosion resistant
• Maximum heating rate is 5 ℃/s with temperature range of 0 to 100 ℃
• It has the capability to accommodate 120×80 mm wells with moveable hot lid which can fit different sizes of tubes
• It has the internal flash memory to store the 10000 files data for analysis
• The connectivity between computer is via USB port and mini printer and can store the GLP data after every step to get reliable results
• All the operations are controlled by a computer software system which instrument PCR protocols and also has in built 11 standard protocols
• It has power of operation recovery option which helps in continuing the same command after a recovering from power cut
• The user can access to his individual experimental data by setting a password and data management system
• To satisfy the customers need it is installed with special feature like the user can add sample while the process is going on to encounter different variations
• The user will be sent notifications via email about the process to alert when operation ends

Applications :

Used in Gene expression analysis
Pathogen detection
DNA methylation analysis
Genotyping and gene scanning
miRNA research etc.
