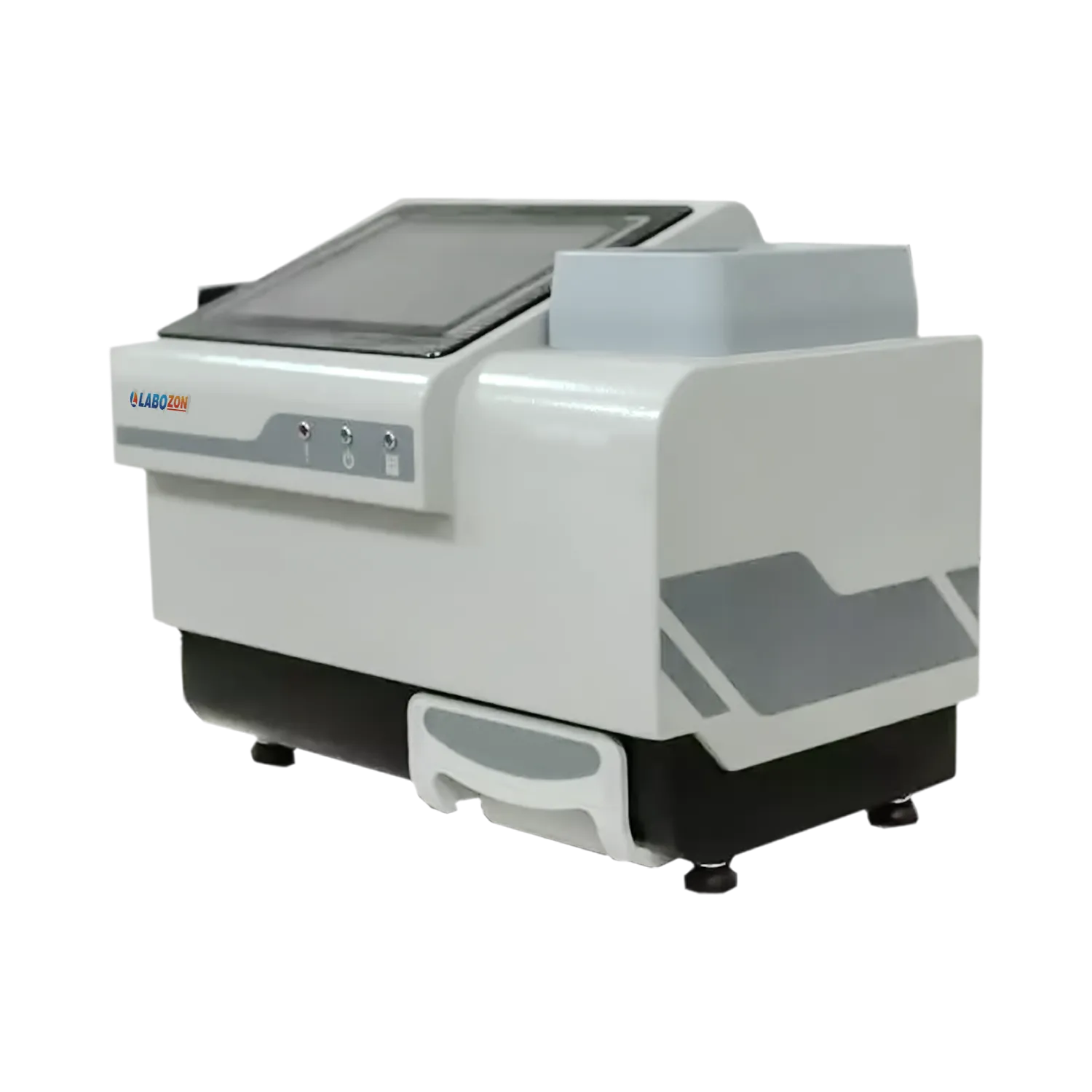

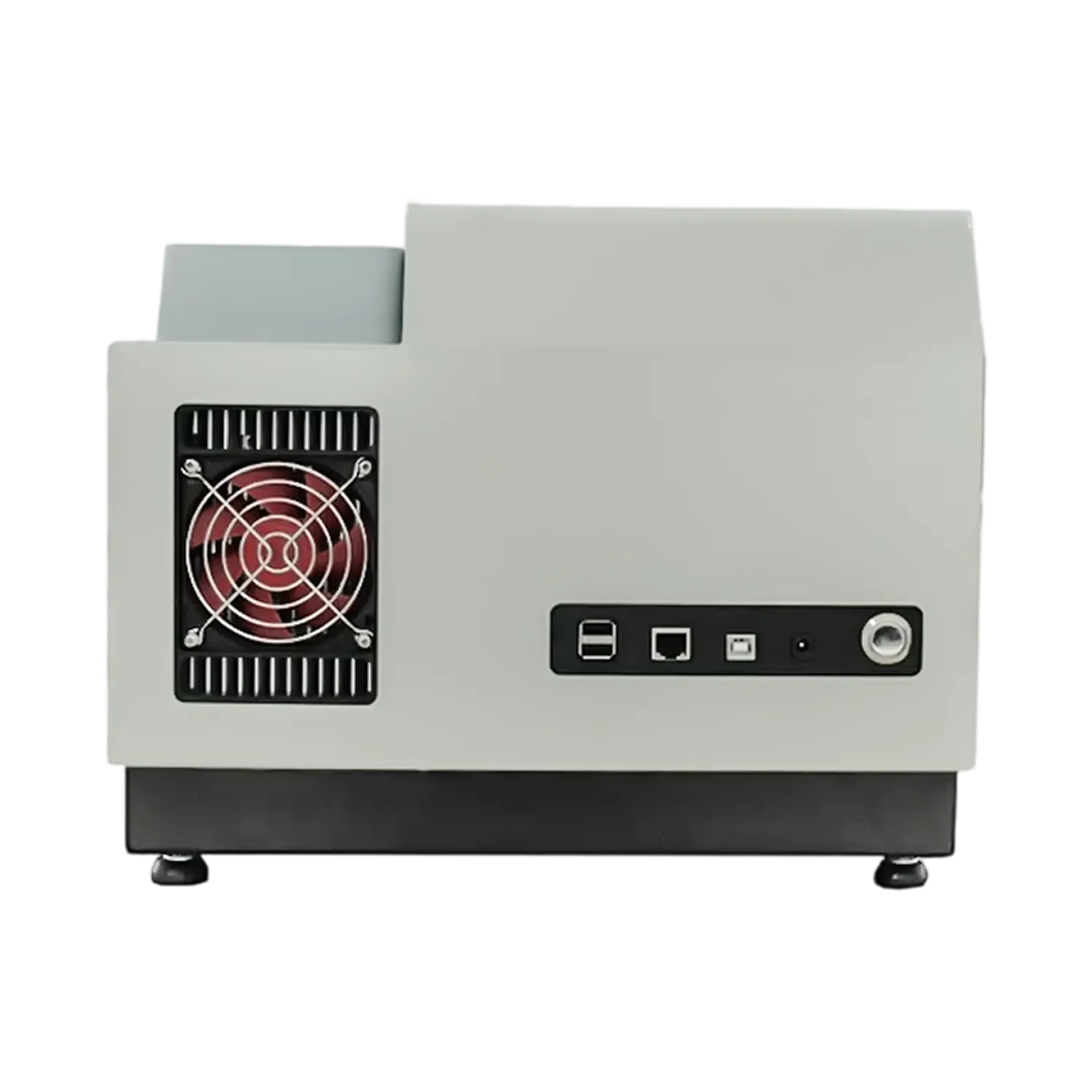

NIR Grain Analyzer LZ-NGA-A100

NIR Grain Analyzer LZ-NGA-A100 supports testing moisture, protein, starch across wheat, rice, corn, and soybean samples. Its 8-inch touchscreen runs on Windows7, pairing a silicon diode array detector with interchangeable sample cell optical paths for different particle sizes. Spectral range from 680-1050nm detecting results in 1-3minutes and can measure up to 25 subsamples improving detection accuracy and stability. Whole grain can be tested without grinding, making it suitable for rapid grain analysis and laboratory quality testing.

NIR Grain Analyzer LZ-NGA-A100 - Specifications

Spectral Range 680 – 1050 nm
Resolution 7 nm
Transmission Measurement 6 mm, 18 mm, 29 mm
Detector Silicon diode array
Measurement Method Transmission
Sub-samples Up to 25 per measurement
Testing Samples Wheat, Grain, Rice, Soya bean, Corn, Flour
External Dimensions 360 x 250 x 300 mm
Packing Dimensions 450 x 350 x 500 mm
Gross Weight 23 kg

NIR Grain Analyzer LZ-NGA-A100 - Key Features

NIR Grain Analyzer LZ-NGA-A100 - Applications

Request a Quote

Labozon Agricultural Soil Testing processes soil, crop, and grain samples through preparation, measurement, and analysis steps. It delivers results used to check nutrient levels, pH, texture, and contaminants during routine laboratory testing across agricultural setups and controlled lab environments.
