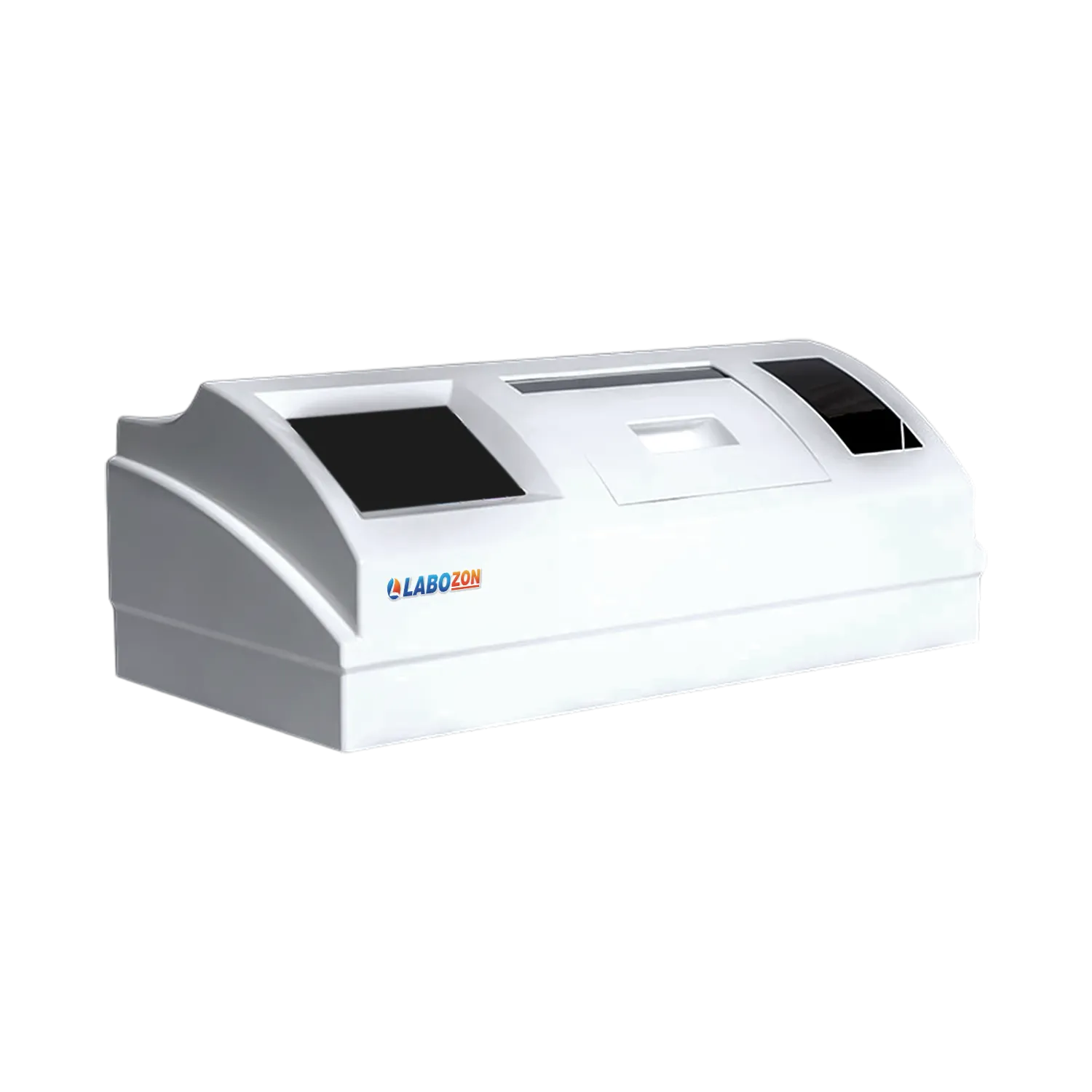

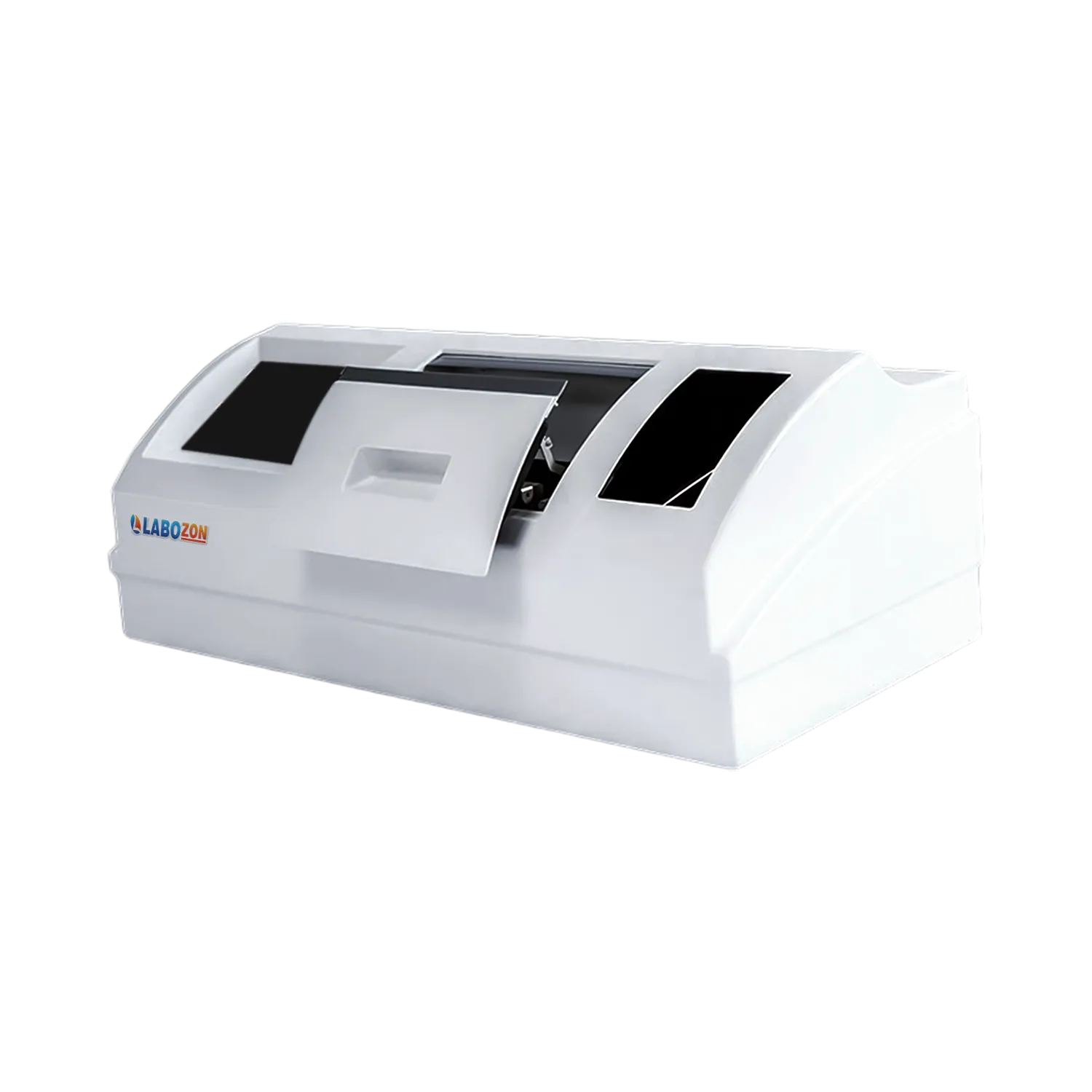

Automatic Polarimeter LZ-AP-A100
Automatic Polarimeter LZ-AP-A100 is designed for precise measurement of the optical rotation of optically active substances. It combines automatic measurement, temperature control, digital display, and data management functions to provide efficient and repeatable analysis. The instrument can determine optical rotation, specific rotation, concentration, and sugar-related measurements, making it suitable for routine quality control and analytical work in pharmaceutical, food, chemical, and research laboratories.
Contact our team for bulk pricing and institutional quotations.
details on request
support
documentation
Product Specifications
Technical information for Automatic Polarimeter LZ-AP-A100.
| Product Name | Automatic Polarimeter LZ-AP-A100 |
|---|---|
| SKU | LZ-AP-A100 |
| Wavelength | 589.3 nm |
| Measurement Range | Optical rotation: ±90°; specific rotation: +259°; sugar degree: ±259° |
| Measurement Mode | Single, multiple, continuous measurement modes |
| Optical Rotation | 0.001° |
| Accuracy | ±0.004° |
| Repeatability | ≤0.002 |
| Temperature Range | 10–55°C (Peltier) |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±0.1°C |
| Transmittance | 0.01% |
| Display | 8-inch TFT touchscreen |
| Light Source | LED + interference filter |
| Test Tube (Standard) | 200 mm, 100 mm (Regular), 100 mm (Temperature Control) |
| Data Storage | 32Gb |
| Data Format | PDF and Excel |
| Interface | USB, RS-232, VGA, Ethernet |
| Power Consumption | 250 W |
| Power Supply | AC 110/220V, 50/60Hz |
| External Dimensions | 735 × 565 × 280 mm |
| Packing Dimensions | 820 × 475 × 455 mm |
| Net Weight | 21.4 kg |
| Gross Weight | 30 kg |
Features
- Automatic measurement
- Built-in Peltier system
- LED light source
- Automatic zeroing and calibration
- 8-inch TFT touchscreen
- Integrated printer
- USB, RS-232, and Ethernet
- Data export in PDF and Excel formats.
Standard Accessories
- Test tube
- Printer
Applications
Suitable for pharmaceuticals, food and beverage, sugar analysis, chemicals, research laboratories, universities, and quality-control laboratories where measurement of optical rotation and related parameters is required.
