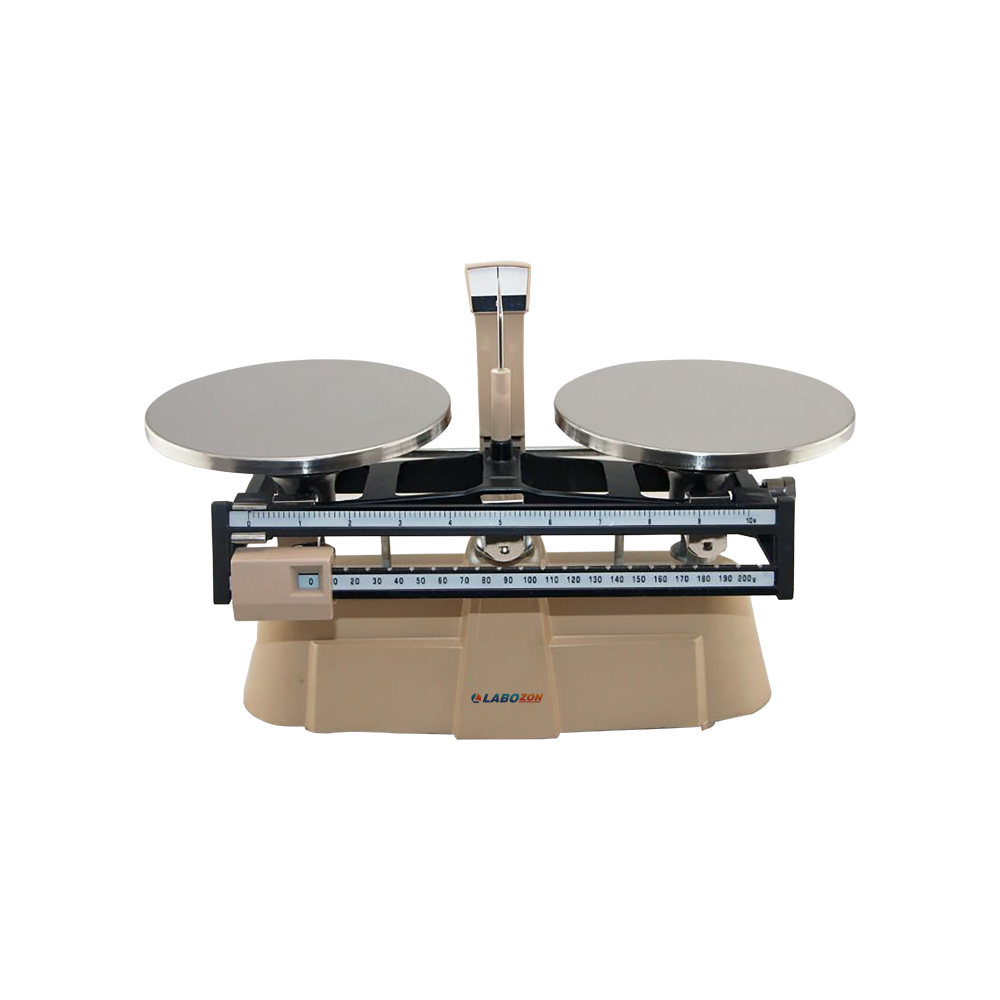

Double Beam Balance LZ-DBB-A100

Overview

Double Beam Balance LZ-DBB-A100 is a mechanical weighing apparatus employed for precise mass measurements in scientific and laboratory environments. Comprising two parallel beams, each equipped with a suspended pan, this instrument facilitates accurate weight determination. It is frequently employed for comparative weighing to ascertain the mass difference between two objects rather than determining their absolute values. It includes a sliding weight on the beam for precise adjustments.

Specifications :

Capacity	2000 g
Readability	0.1 g
Beam Calibrations	First rod 10 x 0.1 g Second rod 500 x 100 g
Pan	150 mm stainless steel
Weights	1kg, 500g, 200g, 100g
Dimensions	350 x 240 x 170 mm
Net weight (1pc)	2.1 kgs
Gross weight (1 box)	5 kgs
Packing Dimensions (4pcs)	490 x 430 x 580 mm ( carton)
Gross Weight	20 kgs

Features :

• Weighing range up to 2000 g
• Readability 0.1g
• Stainless steel platform with 150mm diameter
• Weighing set 1 kg, 500g, 200g, 100g
• Two beams with center reading sliding masses
• Features of double-beam balances include their high precision, readability, and additional elements such as Vernier scales and sliding weights for meticulous adjustments
• Recognized for their robustness and resilience against external factors
• Utilizing agate bearings and precision knife edges ensures precise and consistent outcomes
• Iron weights and plastic tweezers, promoting accuracy in measurements

Applications :

These are primarily used in laboratories, educational institutions, and industrial settings for precise measurement of mass. They are common in chemistry, physics, and biology labs, as well as in quality control processes.
