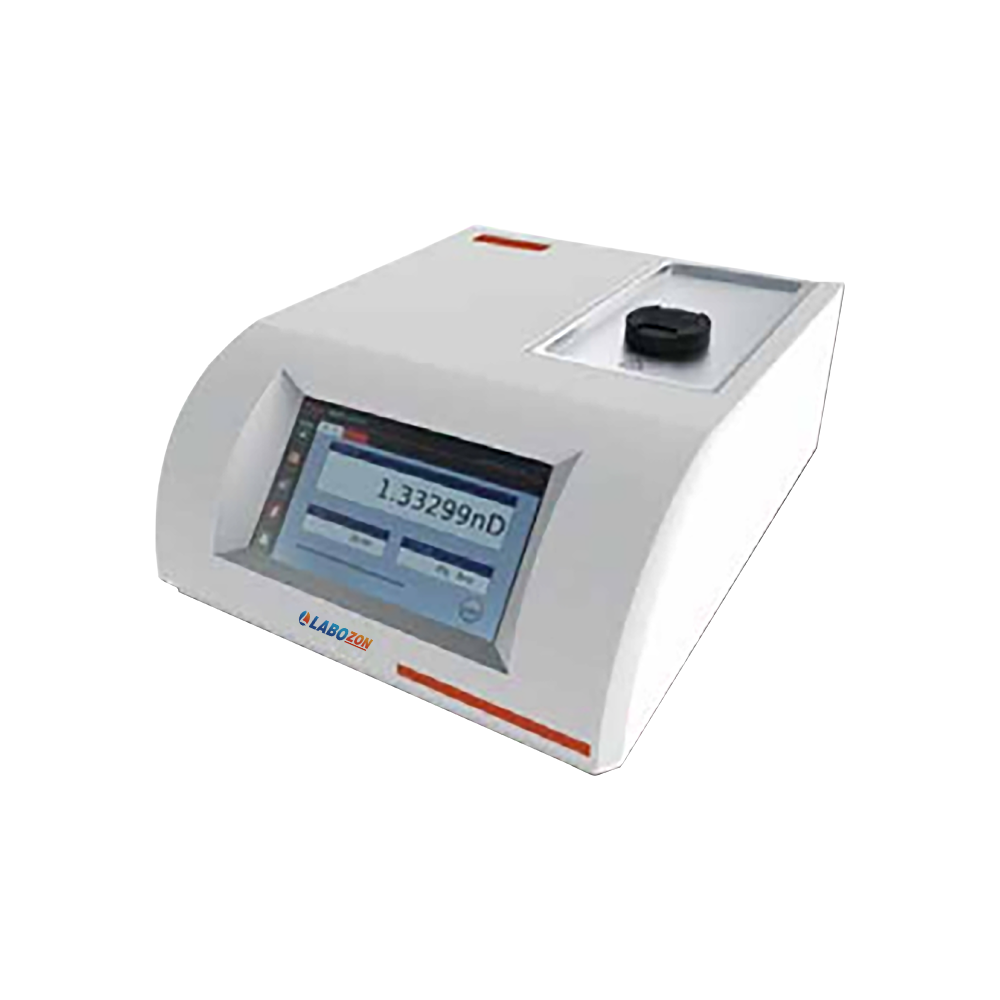

Benchtop Refractometer LZ-BR-A120

www.labozon.com | info@labozon.com

Overview

Benchtop Refractometer LZ-BR-A120 is a compact fully automatic refractometer that is ideally suited to the oil, pharmaceutical, paint, food, sugar and daily chemical industries. Uses technologies for collecting and analyzing signals with extreme precision. Equipped with a TFT color touch panel and a sapphire prism for accurate refraction. This Digital Refractometer is ideal for use in busy analytical laboratories.

Specifications :

Measuring Range

nD	1.3000-1.7000 nD
Brix	0-100%

Measurement Resolution

nD	0.00001 nD
Brix	0.1%/0.01%

Measurement Value Error

nD	±0.0001 nD
Brix	±0.1%

Temperature

Range	0-100°C
Control Mode	Peltier
Control Range	5-80°C
Control Accuracy	±0.02℃

Display

7 inches, TFT touch screen

Data Storage

4GB

Interface

RS232/USB/SD card/U disk/Internet/ WiFi

Power Consumption

45W

Power Supply

110V~240V(12V,10A)

Net Weight

12 kg

Dimensions

365 x 300 x 150 mm

Features :

Microprocessor controlled
7-inch color touch screen with Android system to display measurement data in one view
High measuring resolution
Built in Peltier accurate temperature control system with accuracy up to 0.02°C
RS232 and USB interface, can be easily connected to printer and network to facilitate users for export or backup of data
Abrasion and corrosion-resistant coating on sapphire prism, with excellent properties against corrosion and scratch free
LED light source with long working life span of more than 100000hours
High performance CCD sensor
