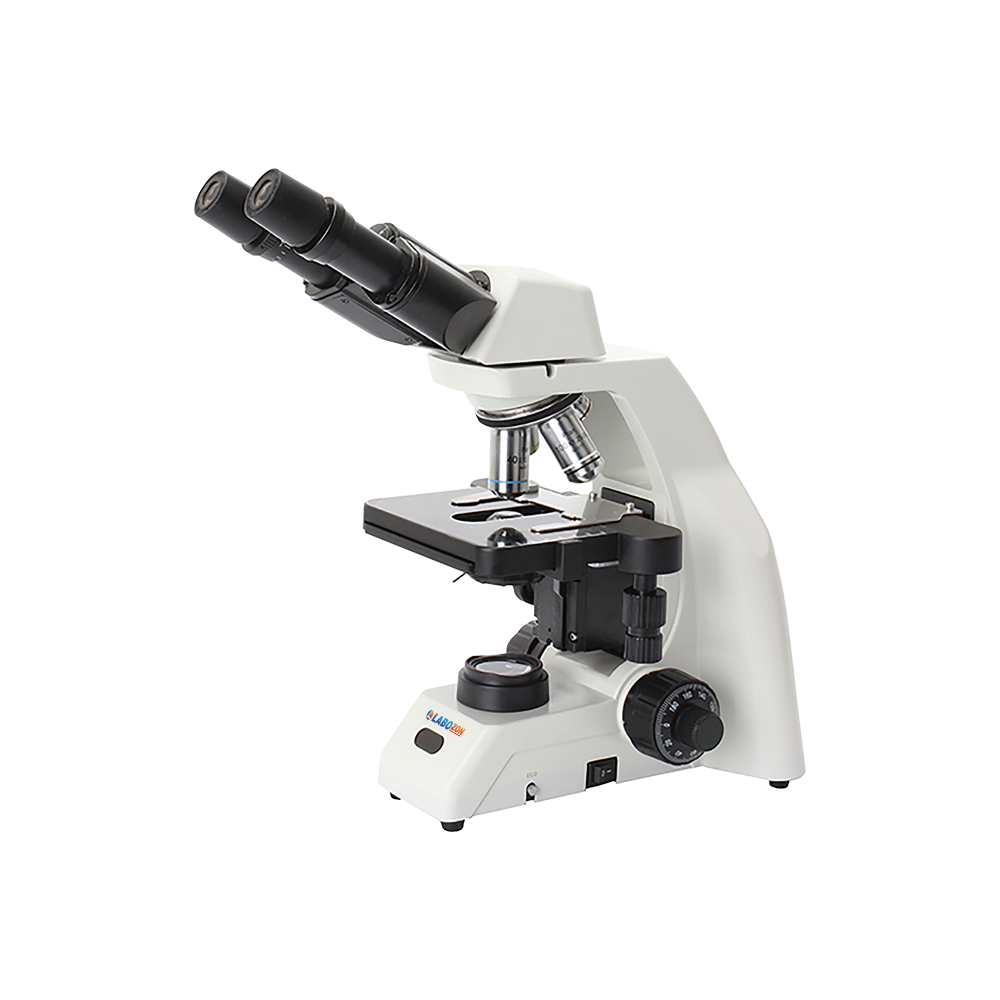

Biological Microscope LZ-BM-A100

Overview

Biological Microscope LZ-BM-A100 has the design of Compensation free Siedentop Binocular Head, inclined at 30°, Interpupillary 47-78 mm. Features infinite semi- plan objectives 4×, 10×, 40×, 100×. Microscope design also offers a Quadruple nosepiece, built-in Koehler illuminator system, N.A. 1.25 condenser with diopter adjustable. Coaxial coarse and fine focusing adjustment.

Specifications :

Optical System	Infinite optical system
Viewing Head	Seidentopf type, Binocular Head, inclined at 30°, Interpupillary 47-78 mm
Eyepiece	Diopter adjustable eyepiece WF10X / 20 mm
Nosepiece	Quadruple Nosepiece
Objective	Infinite Semi-Plan Achromatic Objectives 4X, 10X, 40X, 100X
Stage	Double layer mechanical stage with 150mm×139mm, Moving Range: 75 mm×52 mm
Condenser	Abbe Condenser NA1.25
Focusing	Coaxial coarse and fine focusing adjustment with Fine division 0.002 mm, Moving range 25 mm
Illumination	S-LED Illumination, Brightness Adjustable
Weight	8 kg

Features :

• Binocular Head, inclined at 30°
• Designed with infinite semi- plan objectives 4×, 10×, 40×, 100×
• S-LED Illumination, Brightness Adjustable
• Designed with Quadruple nosepiece
• Diopter adjustable eyepiece WF10X/22 mm
• Abbe Condenser NA1.25

Applications :

Biological Microscope used in biological, pathological, histological, bacterial, immune, pharmacological, and genetic fields.
