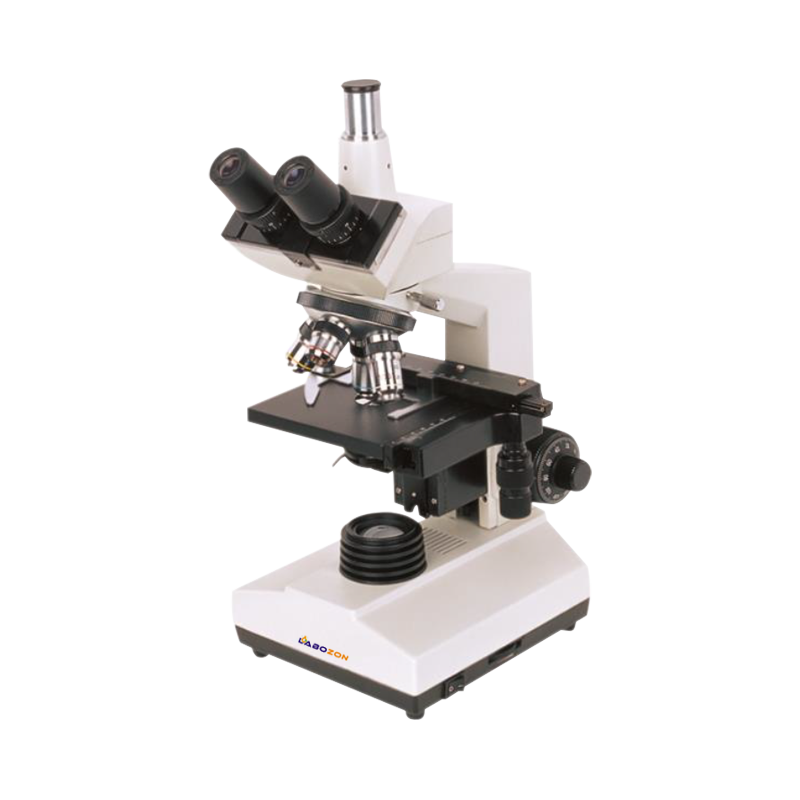

Biological Microscope LZ-BM-A130

Overview

Biological Microscope LZ-BM-A130 has the design of Compensation free Sliding Trinocular Head, inclined at 45°, Interpupillary 55-75 mm. Features Achromatic objectives 4×, 10×, 40×, 100×. Microscope design also offers a Quadruple nosepiece, built-in S-LED illumination, N.A. 1.25 condenser with Wide field eyepiece. Coaxial coarse and fine focusing adjustment.

Specifications :

Optical System	-
Viewing Head	Sliding Trinocular Head, inclined at 45 ºand 360 ºRotatable, interpupillary distance 55-75mm
Eyepiece	Wide Field Eyepiece WF10×/ 18mm
Nosepiece	Quadruple Nosepiece
Objective	Achromatic Objectives 4X, 10X, 40X, 100X
Magnification	10x eyepiece: 40X,100X,400X,1000X
Stage	Double layer mechanical stage with 140mm×140mm, Moving Range: 75 mm×50 mm
Condenser	Abbe Condenser NA1.25 with Iris Diaphragm and Filter
Focusing	Coaxial coarse and fine focusing adjustment with Fine division 0.002 mm, Moving range 28 mm
Illumination	1W S-LED Illumination, Brightness Adjustable, Plan Concave Mirror
Weight	7 kg

Features :

• Trinocular Head, inclined at 45°
• Designed with Achromatic objectives 4×, 10×, 40×, 100×
• 1W S-LED Illumination, Brightness Adjustable, Plan concave mirror
• Designed with Quadruple nosepiece
• Wide field eyepiece WF10X/18 mm
• Abbe Condenser NA1.25 with Iris Diaphragm & Filter

Standard Accessories :

Dust Cover
Immersion oil 5 ml

Applications :

Biological Microscope used in biological, pathological, histological, bacterial, immune, pharmacological, and genetic fields.
