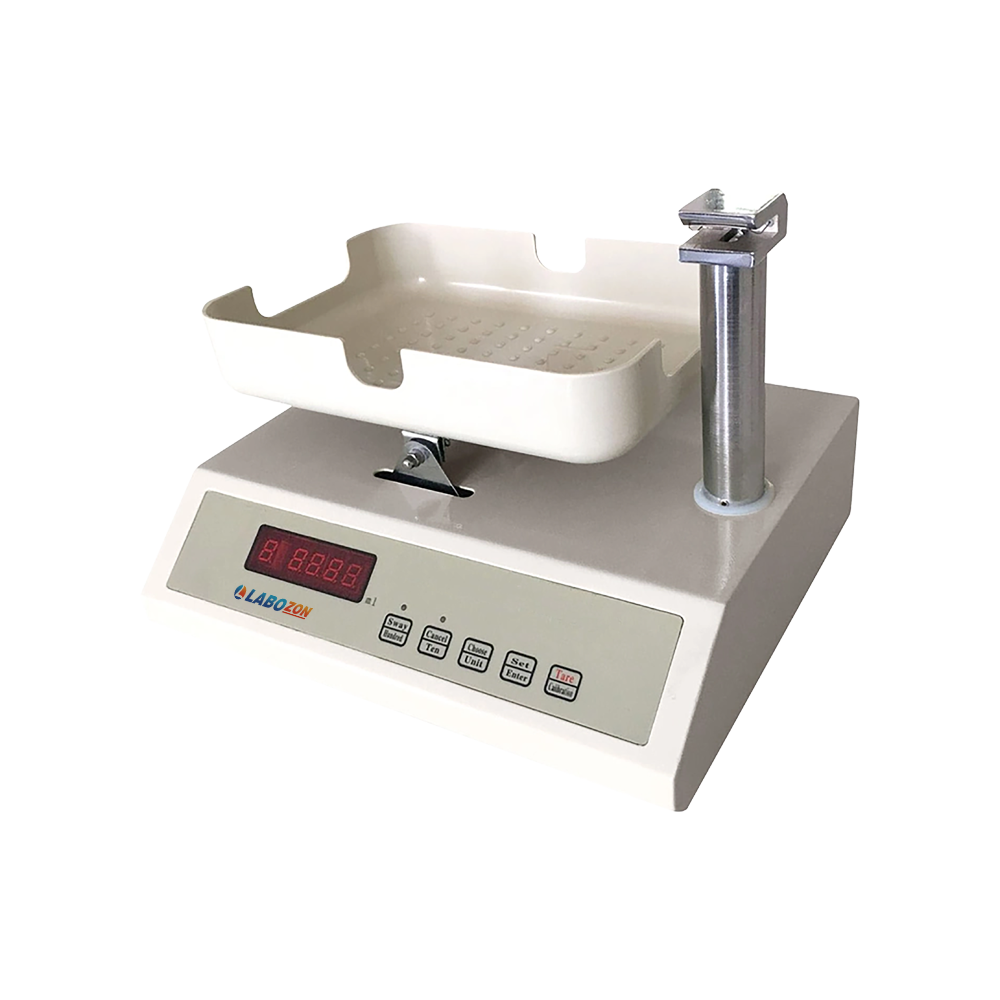

Blood Collection Monitor LZ- BCM-B110 Catalog

Blood Collection Monitor LZ- BCM-B110 is a cutting-edge device that is perfect for blood collection in outdoor camps and donation rooms. Accurate volume measurement, accurate time and flow rate monitoring, a gentle and seamless mixing operation are all made possible by built-in essential features and microprocessor-based controls. The LZ-BCM-B100 user-friendly features provide phlebotomists total control over the donation process, guaranteeing the comfort and safety of the donor.

Measuring Range	0 ~ 1200 ml
Measuring Accuracy	0.02
Display Accuracy	1ml
Liquid Proportion	1.05g/ml
Collection Speed	0.5~3ml/s
Swing Frequency	33±2
Swing Angle	13±2°
Alarms	Audio and visual alarm with interupter
Interrupter Thrust	≤14N
Display	LED
Power Consumption	40W
Power Supply	AC110/220V±10 50/60HZ
External Dimensions	275 x 230 x 210 mm
Packing Dimensions	350 x 270 x 260 mm
Gross Weight	4.2 kg

• Innovative device features modern sensor and LED display
• It comes equipped with preset blood collection volumes for added convenience
• Taring and calibrating function, ensure precise measurements
• Soft shaking mode, enhances the longevity of essential blood components
• Intelligent feature automatically halts shaking when collection bags are removed, resuming once they're reattached
• If preset collection volume is reached, the device transitions into accurate measurement mode, stopping shaking when there's a 10ml gap
• Automatic alarm notify users upon reaching the predetermined volume
• Human-Centric design and user-friendly structure make operation effortless

Blood Collection Monitor is a precise medical device used during blood donation to ensure safe and accurate collection. This device is essential in blood banks, hospitals, and transfusion centers for efficient and safe blood management.
