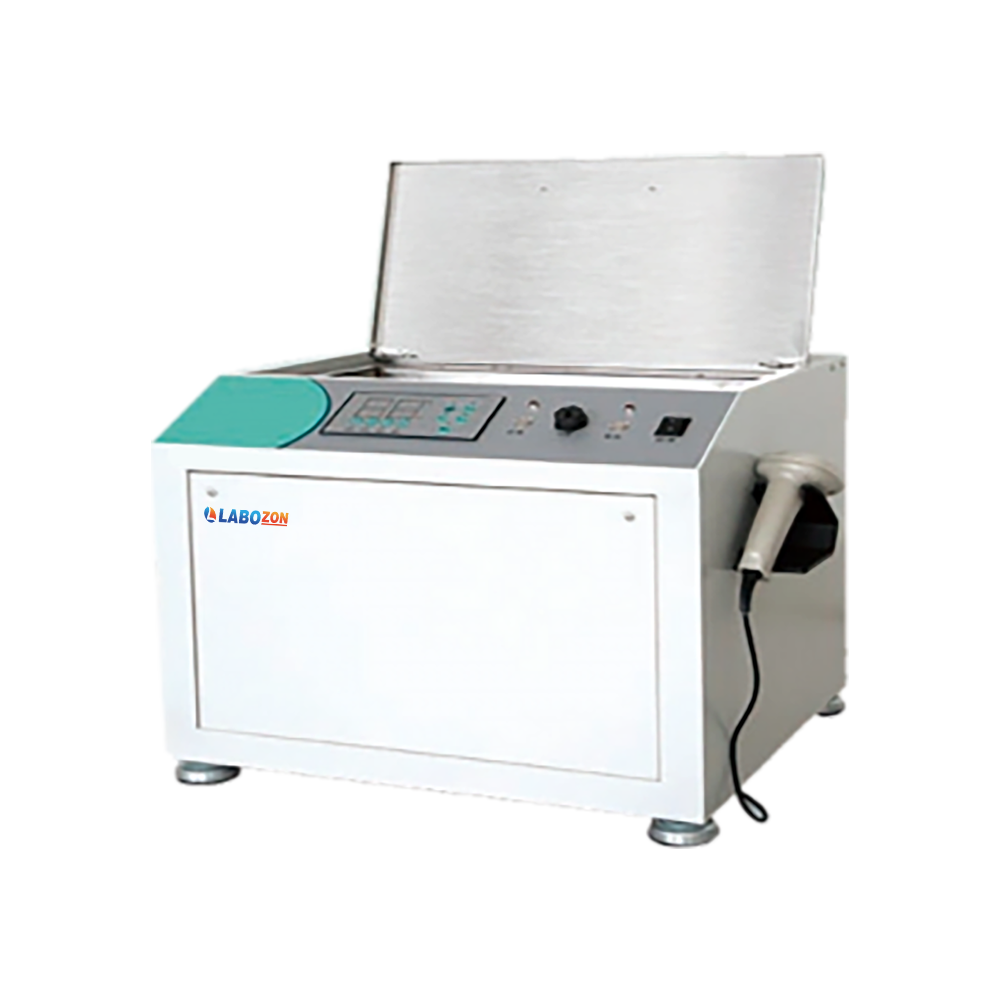

Blood Thaw Machine LZ-BTM-A100

Overview

Blood Thaw Machine LZ-BTM-A100 is a countertop device designed for rapid and uniform thawing of fresh frozen plasma bags at RT-50°C. It includes max 6pcs of blood bags, fences, a decomposable water tank, and a chamber made of 304 stainless steel. It also has a water circulation system to guarantee quick thawing. Reduce the duration of immersion by facilitating the automatic drying function and equipped with an automatic power-off feature and an overheating alarm to alert the user to dangerous conditions. It is specially designed for safety and reliably thaw fixed frozen plasma (FFP).

Specifications :

Volume	20 Kg±5%
Blood Bag Capacity	Maximum 6 pcs
Temperature Range	RT-50°C
Temperature Accuracy	± 0.2 °C
Average Thawimg Time	10 to 15 min
Inner tank	Stainless steel 304
Power Consumption	1 KW
Power Supply	AC 220V ±10%, 50/60 Hz
External Dimensions	550 x 500 x 475 mm
Packing Dimensions	580 x 580 x 520 mm
Weight	30 kgs

Features :

• Tabletop light weight design
• Rapid thaw time approx. 10 to 15 minutes
• High definition display for real time monitoring of temperature and time curve
• Holds maximum 6pcs of blood bags
• A variety of thawing modes are optional
• Alarms and monitoring systems included to alert users to any deviations from the set parameters
• Features temperature control and sensing system to achieve high temperature control accuracy
• Come in various sizes and capacities to accommodate different volumes of frozen plasma
• User-friendly operation and low energy consumption

Applications :

Ideal for rewarming platelets, blood cells, medical frozen products in hospitals and blood stations
