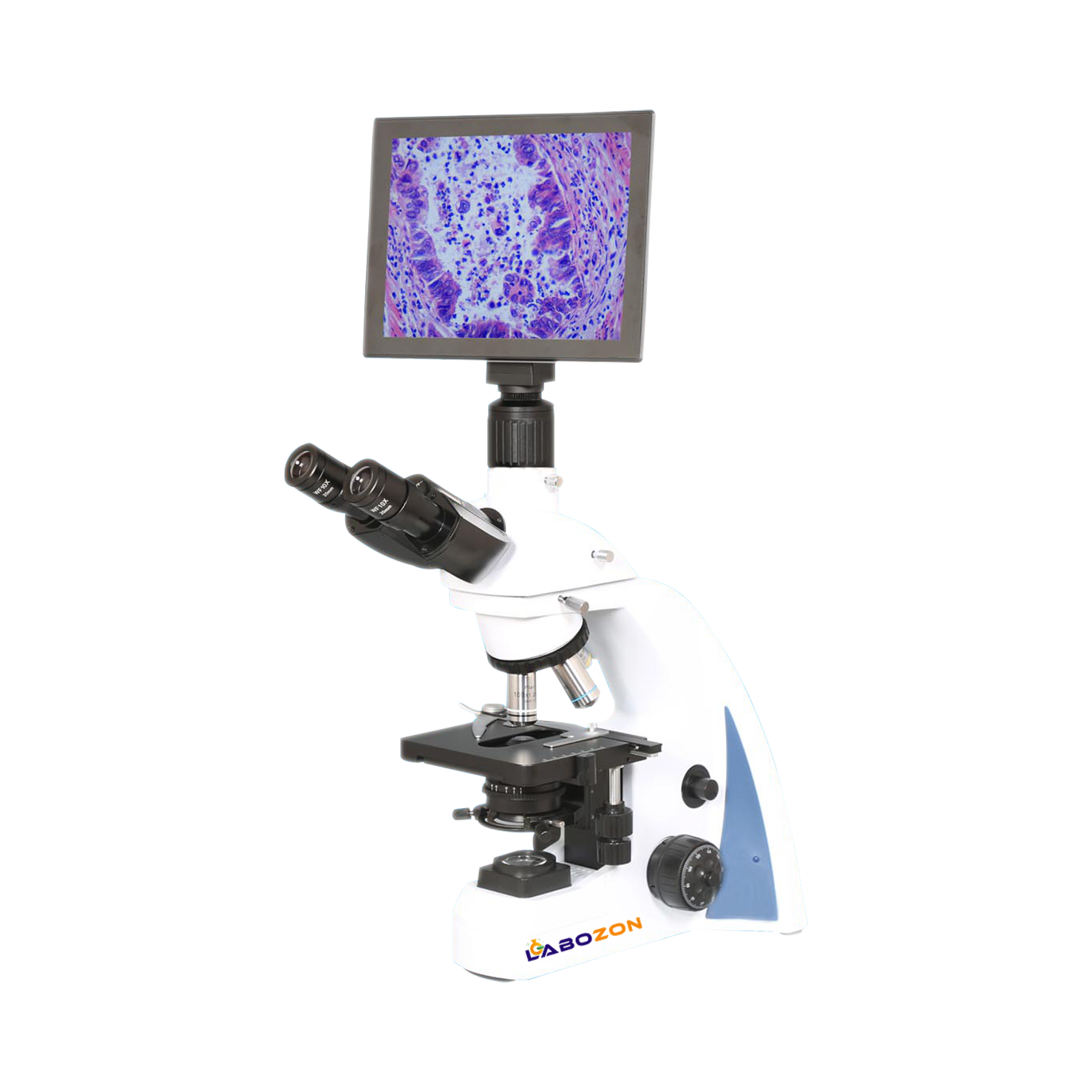

Digital Microscope LZ-DM-A120

Overview

Digital Microscope LZ-DM-A120 is in demand for the provision of high-resolution images on the LCD screen. The Infinity Plan Achromatic objectives of different ranges offer superior magnification. It is supported by Built-in Wi-Fi. It comes with a sturdy track stand that supports the microscope and attachments. These microscopes are ideal for industrial as well as professional applications.

Specifications :

Optical System	Infinity Optical System
Viewing Head	Trinocular Head ,Inclined at 30º, Interpupillary 48 to 75 mm
Eyepiece	WF10X / 20 mm
Nosepiece	Quadruple Nosepiece
Objective	Infinity Plan Achromatic Objectives: 4X, 10X, 40X, 100X
Stage	Double Layers Mechanical Stage: 140 mm x132 mm / 76 mm x 50 mm
Output	USB 2.0, HDMI, TF card
Display	LCD
Focusing	Coaxial Coarse & Fine Adjustment, Moving Range 25mm
Condenser	Sliding-in centered condenser N.A. 1.25
Software	S-Eye
Operating system	Android 5.1
Illumination	3W LED, Brightness Adjustable
Valid Pixel	5.0M Pixel

Features :

• 9.7 inch TFT touch screen
• 3W LED, Brightness Adjustable illumination
• S-EYE Software
• Infinity plan achromatic objectives
• Android 5.1 and USB 2.0 Mini USB

Optional Accessories :

Trinocular Head , 30º Inclined, Interpupillary 48 to 75mm
Dark Filed Attachment
Phase Contrast Kit (10x, 20x, 40x, 100x)
Heating Stage

Applications :

Digital microscope has wide applications in the fields of research labs, hospitals, and industries to view and study opaque, translucent, and temperature-sensitive objects on LCD screen.
