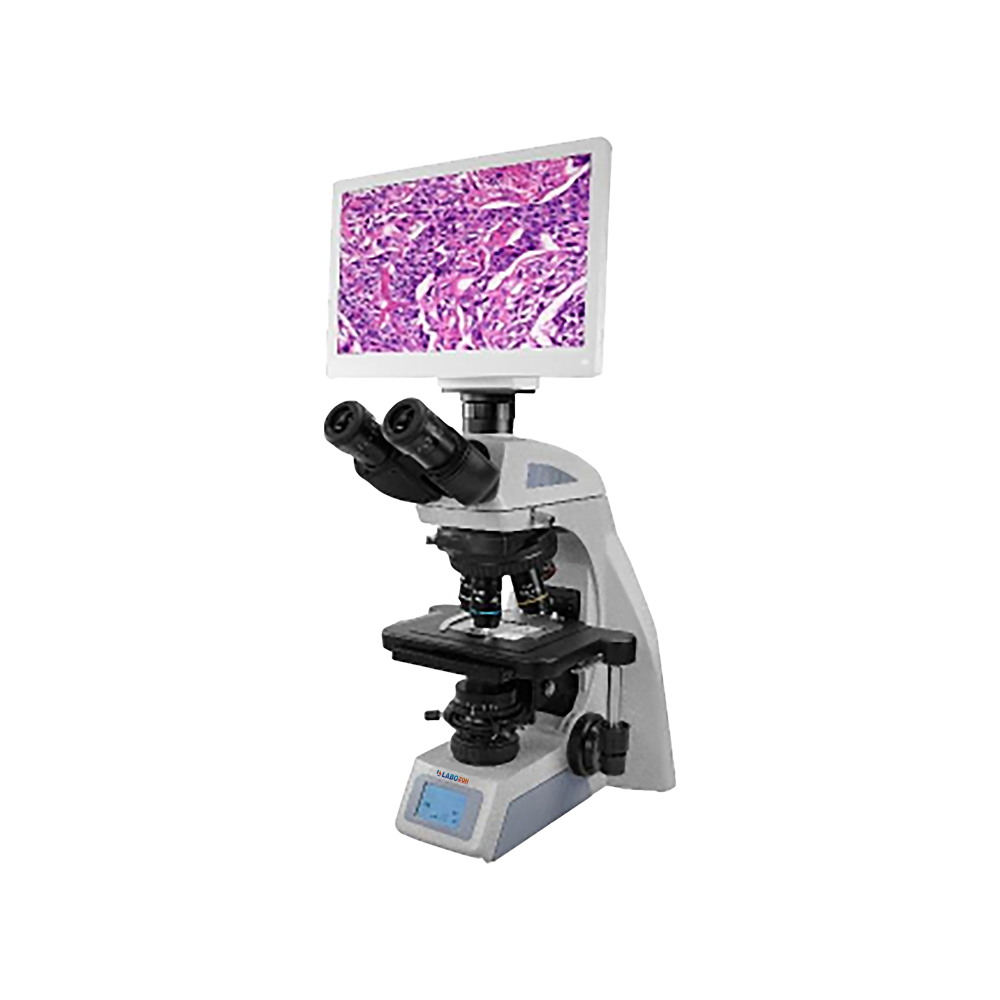

Digital Microscope LZ-DM-A130

Overview

Digital Microscope LZ-DM-A130 is in demand for the provision of high-resolution images on the LCD screen. The Infinity Plan Achromatic objectives of different ranges offer superior magnification. It is supported software control and can capture quick and easy snapshots, short videos and do easy measurement. It comes with a sturdy track stand that supports the microscope and attachments. These microscopes are ideal for industrial as well as professional applications.

Specifications :

Optical System	Infinite Optical System
Viewing Head	Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Splitting ratio 5:5, Anti-Fungus, Tube Diameter 30mm
Eyepiece	Extra Wide Field Eyepiece EW10×/22mm
Objective	NIS60 Infinite Plan Achromatic Objective 4× (N.A.:0.10, W.D.:30mm) NIS60 Infinite Plan Achromatic Objective 10× (N.A.:0.25, W.D.:10.2mm) NIS60 Infinite Plan Achromatic Objective 40× (N.A.:0.65, W.D.:1.5mm) NIS60 Infinite Plan Achromatic Objective 100× (Water, N.A.:1.10, W.D.:0.2mm)
Stage	Rackless stage, Size 230×150mm, Moving Range 78×54mm
Nose Piece	Backward Coded Quintuple Nosepiece
Condenser	Inserted Abbe Condenser NA1.25(Including Empty Plate)
Illumination	3W S-LED (LCD Display Magnification, Timing Sleep, Brightness Indication and Lock, etc.)
Focusing	Coaxial coarse and fine adjustment, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine division 0.002mm, Moving range 30mm
Fluorescent Attachment	3W LED, Two Filter Cubes (B, B1, G, U, V, R, Auramine O can be combined), Fly-eye Lens Illumination
Other Accessories	0.5× C-mount adapter
Filters	Green
Camera	6.0MP high sensitive camera
Screen	11.6” 1080P full HD retina LCD screen
Dimensions	480 x 330 x 600 mm
Gross Weight	12.5 kg

Features :

• Digital Biological microscope specially designed for research level
• 11.6”, 1080P Full HD retina LCD Screen
• Modular design allows for various viewing modes such as brightfield, darkfield, phase contrast, fluorescence and simple polarizing
• Integrated magnification, digital enlarge, imaging display, photo and video capture
• NIS60 infinite Optical System with high contrast and very flat images
• Multifunctional Universal Condenser with aperture diaphragm
• LED EPI-Fluorescent Illumination with life span of 5000 hours
• Two filters are available, fast and easy to switch
• Infinite Plan Objectives provides high quality images and easy to use
• External rechargeable battery can be used as the power source
• Intelligent operating system
• LCD in the front of the microscope base can display the working status of the microscope
• Easier to store and transport
• Ergonomic Design, can operate the microscope with minimal movement

Applications :

Ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities
