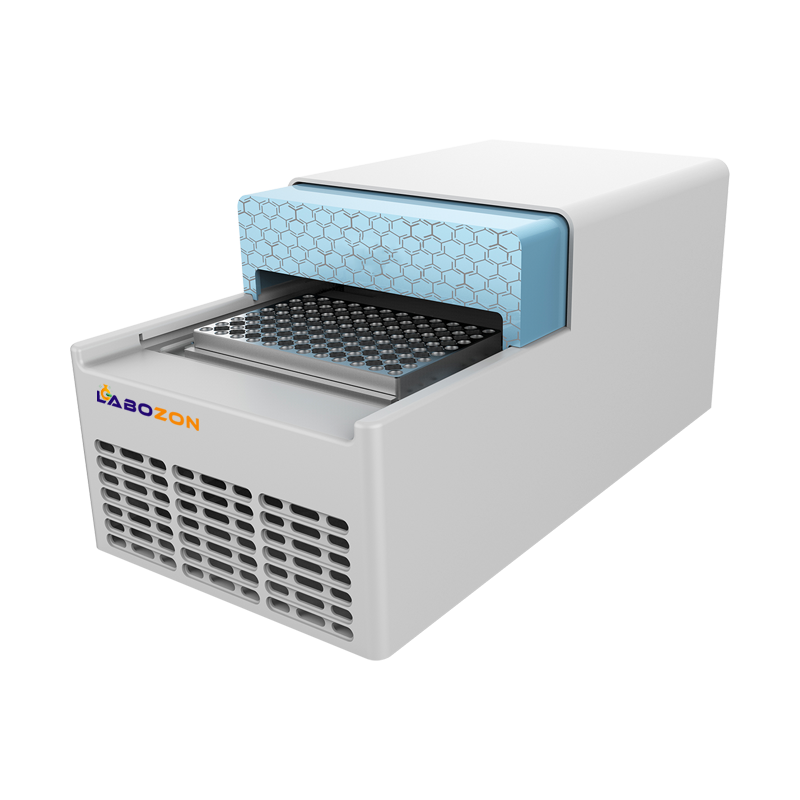

Automatic Gradient Thermal Cyclers LZ-GTC-B10

Overview

Automatic Gradient thermal cycler LZ-GTC-B10 has a sophisticated operating computer controlled software to guide the protocols for PCR analysis for once and it can operate the functions offline. The high-precision Peltier heating units provides heating rates within the range of 0 to 100 ℃. It is the suitable solutions to fulfill different requirements like adding samples while experiment is going on to encounter several experimental requirements. We have optimized capacity of 96 wells plate and half skirt 96 wells plate. It supported by user-friendly USB port or RS232 / RS485 port to connect with computer and print data.

Specifications :

Capacity	96×0.2 ml
Test tube	0.2ml single tube, 8 tubes, 96-well full skirt plate, 96-well   half skirt plate, 96-well no skirt plate,
Temperature Range	0 to 100 ℃
Maximum Heating Rate	5 ℃/s
Maximum Cooling Rate	4 ℃/s
Uniformity	≤± 0.3 ℃
Accuracy	≤± 0.2 ℃
Display Resolution	0.1 ℃
Temperature Control	Block\Tube
Ramping Rate Adjustable	0.1 to 5 ℃
Gradient Temperature Range	30 to 100 ℃
Gradient Spread	1 to 30 ℃
Hot Lid Temperature	30 to 110 ℃
Hot Lid Height Adjustable	Electric hot cover
Number of Step	30
Number of Cycle	100
Increment/Decrement Time	1 Second to  600 Second
Increment/Decrement Temperature	0.1 to 10.0℃
Pause Function	Yes
Auto Data Protection	Yes
Holding	4 ℃
Interface	USB2.0, RS232/RS485
Power	600 W
Voltage	100 to 240 V AC, 50 to 60 Hz
Dimensions(L×W×H)	305×155×170 mm
Weight	14 kg

Features :

• Uniform heating of the samples is achieved with Peltier heating units with more than 1,000,000 cycles
• It is well built with anodizing technology with aluminum block treatment which makes the durable and corrosion resistant
• Maximum heating rate is 5 ℃/s with temperature range of 0 to 100 ℃
• It has the capability to accommodate 96 wells plate and half skirt 96 wells plate with self-adjusting lid and desktop pipetting station
• The connectivity between computer is via USB port or RS232 / RS485 port
• All the operations are controlled by a computer software system which instrument PCR protocols
• It has power of operation recovery option which helps in continuing the same command after a recovering from power cut
• To satisfy the customers need it is installed with special feature like the user can add sample while the process is going on to encounter different variations

Applications :

Used in Gene expression analysis
Pathogen detection
DNA methylation analysis
Genotyping and gene scanning
miRNA research
