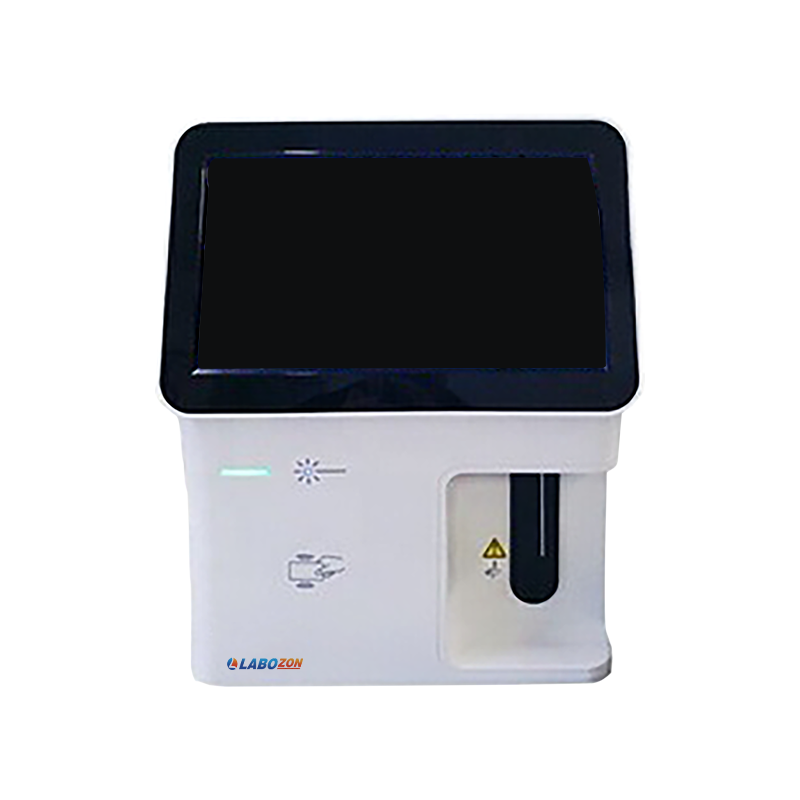

5 Parts Hematology Analyzer LZ- HTA-A100

Overview

5 Parts Hematology Analyzer LZ- HTA-A100 is a sophisticated automatic analyzer having throughput of 60 tests per hour. Features advanced technologies and mechanisms for counting red blood cells, platelet and has cyanide free method for haemoglobin counting. It is designed to assay 5 parts, 29 parameters, 3 histograms and 3D scattergram with storage capacity of 1,00,000 data results for future reference. Equipped with a 3-D holographic scattergram that shows the WBC's five parts in great detail.

Specifications :

Measuring principle	Tri-angle laser scatter, Flow cytometry method, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test
Sample volumes	CBC+DIFF mode: ≤ 20 μl CBC mode: ≤ 10 μl
Throughput	60 tests/hour
Assay Items	5 parts, 29 parameters, 3 histograms and 3D scattergrams
Display	14-inch touch screen
Storage	100,000 sample results, including histograms, scattergrams and patient information
Parameters	WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 4 Research parameter: ALY%, ALY#, IG%, IG#
Performance	Item Linearity range Carry Over CV WBC 0 to 300 × 109/L ≤ 0.5% ≤ 2.0 % RBC 0 to 8.00 × 1012/L ≤ 0.5% ≤ 1.5 % HGB 0 to 250 g/L ≤ 0.5% ≤ 1.5 % PLT 0 to 3000 × 109/L ≤ 1.0% ≤ 4.0 %
Interface	4 USB ports, 1 LAN port Bi-direction LIS, support HL 7 protocol, Internal RFID reader
Power Supply	AC 220 V ± 10 %, 50/60 Hz, 110V± 10 %, 60 Hz, 400 VA
Reagent Packaging dimensions (W × D × H)	330 × 330 × 330 mm, 400 × 290 × 240 mm, 400 × 290 × 240 mm
Reagent Gross weight	22 kg, 2 kg, 1 kg
Packaging dimension (W × D × H)	670 × 590 × 790 mm

Features :

• Accurate 5-part distinction of WBC can be shown in a 3D holographic scattergram
• Assays 5 parts, 29 parameters 3 histogram and 3D scattergram with high precision
• Internal RFID reader for testing blood cells that has CBC, CBC + differential, Venous whole blood, Capillary whole blood, and Prediluted test modes
• Cyanide-free method for counting haemoglobin in blood sample
• Carries 60 tests/hour to save the time of the user
• 14-inch touch screen for visualizing and controlling parameters
• Great storage capacity to save about 100,000 results
• 4 USB ports for printer and computer connections
• Highly efficient, stable and reliable unit to test blood components

Applications :

Hematology Analyzers are widely used for testing blood components across medical labs, zoo, veterinarian labs, research labs, medical institutes, clinical laboratories etc.
