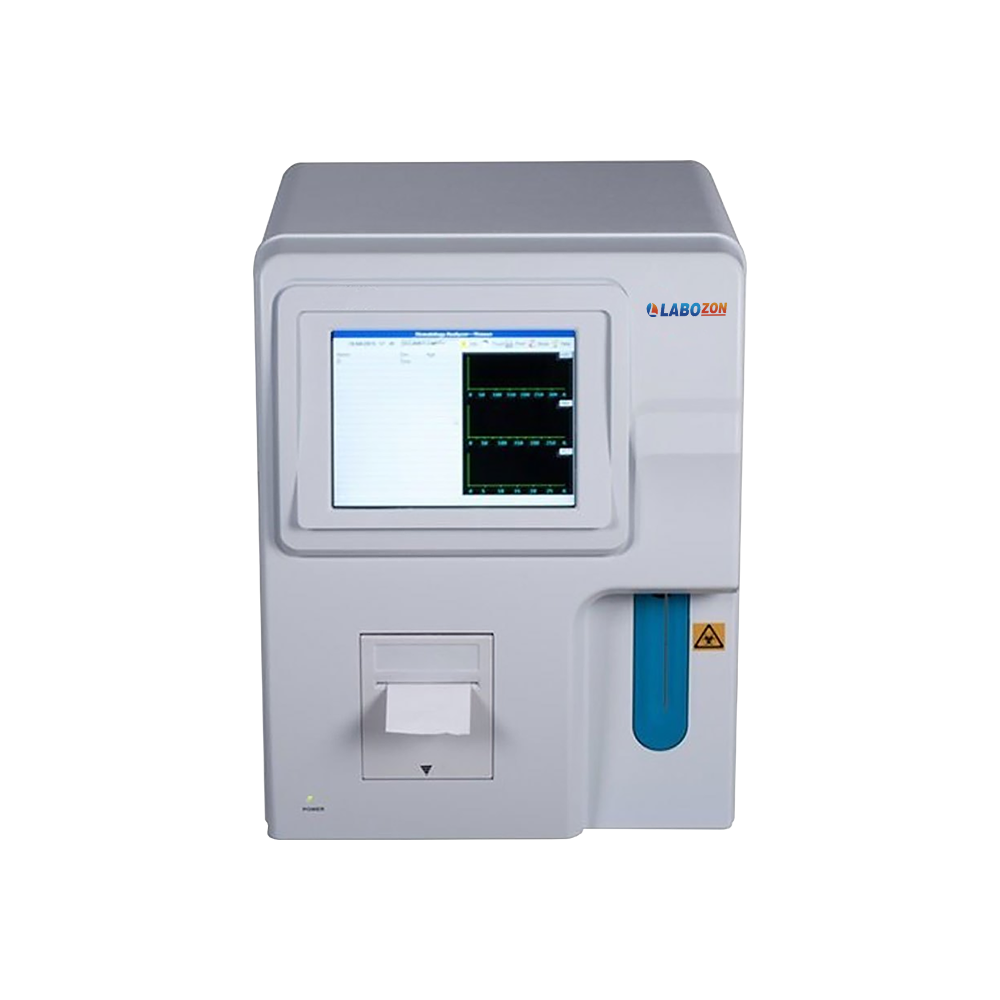

3 Parts Hematology Analyzer LZ-HTA-B100 (VET)

Overview

3 Parts Hematology Analyzer LZ-HTA-B100 is a automatic analyzer having throughput of 35 sample tests per hour. Features advanced technologies and mechanisms for counting red blood cells, platelet and haemoglobin counting. It is designed to assay 3 parts, 23 parameters, 3 histograms and with storage capacity of 100,000 data results for future reference. Equipped with a graphical thermal printer with various printer format. Widely used for the veterinary purposes.

Specifications :

Measuring principle	Electrical resistance for counting; hemiglobincyanide and SFT method for hemoglobin
Animal Type	Dog, Cat, Horse, Mouse, Rat, Rabbit, Pig, Cow, Monkey, Sheep and 5 user defined animals
Sample Volumes	9.8μL Venous and capillary 20μL pre-diluted
Throughput	35 samples / hr
Assay Items	3 parts, 20 parameters and 3 color histograms
Display	8.4" inch TFT Display
Storage	Upto 100,000 sample results including histograms
Parameters	WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, Lymph#, Mid#, Gran#, Lymph%, Mid%,Gran% 3-histograms: WBC, RBC, PLT
Performance	Item Linearity CV WBC 0.0 ~ 99.9 ≤2% RBC 0.0 ~ 9.99 ≤1.5% MCV(fL) 40 ~ 150 ≤0.5% PLT 0 ~ 999 ≤4.0% HGB(g/L) 0.0 ~ 300.0 ≤1.5%
Interface	RS232, parallel printer and keyboard
QC Control	X-B, L-J, SD, CV%
Reference Value Settings	Male, Female, Children, Neonate
Working Conditions	Temperature 18°C ~ 30°C wet ≤10-90%
Power Supply	220 V ±22 VAC, 50±1Hz
Dimensions	330 x 380 x 430 mm
Weight	20 kgs

Features :

• Pre-programmed for 10animals and 5 user defined animals
• Assays 3 parts, 23 parameters and upto 35 samples per hour
• Electrical resistance for counting
• SFT method of Hemoglobin
• Low sample consumption
• 8.4" inch color TFT display for visualizing and controlling parameters
• Windows operation system with graphical button mouse and keyboard
• Automatic diluting, mixing, rinsing and clog clear
• Automatic cleaning of sample probe both inside and outside
• Great storage capacity to save about 100,000 results and 3 histograms
• Internal thermal sensitive printer, RS232 interface, PC connecting
• Methodology: Electrical resistance for counting; hemiglobincyanide for hemoglobin
• Single channel counter
• Advanced and long life valve technology
• Operatable for 24hours, Auto-sleeping and waking-up functions

Applications :

These Vet Hematology analyzers are crucial tools in veterinary medicine, providing rapid and accurate analysis of blood samples from animals. These devices are utilized for comprehensive blood cell counts, assessing red and white blood cell parameters, hemoglobin levels, and platelet counts.
