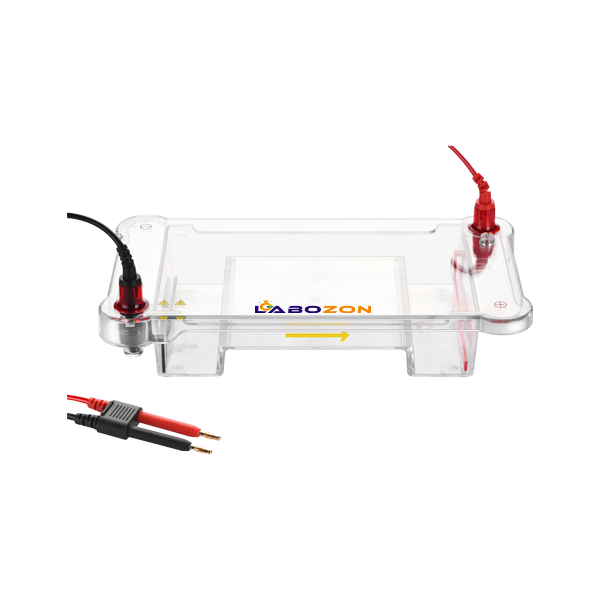

Horizontal Electrophoresis LZ-HES-A200 Catalog

Horizontal Electrophoresis LZ-HES-A200 ideal for PCR electrophoresis with comb capability of 27 wells with 4 rows, and available 108 samples along with marker. The Horizontal electrophoresis chamber is connected to cathode and anode, which supply electric field and due to DNA and RNA are negatively charged, they migrate from a negative end to a positive end.

Channel	8 channels and 12 channels
Buffering Liquid Volume	1000 ml
Multi-Specification Gel Tray	30×130 mm; 130×65 mm; 65×130 mm; 65×65 mm, comb with 14, 19, 27 wells supports
PCR Electrophoresis	Comb 27 wells, 4 rows, 108 samples
Comb Specification	0.75mm: 7+7wells/14wells, 9+9wells/19wells;1.0 mm: 12+12wells/27wells1.5mm: 7+7wells/14wells, 9+9wells/19wells;2.0mm: 3+2wells/3+3wells
Gel Area	130×130mm, 130×65mm, 65×130mm, 65×65mm
Dimension	300×170×80 mm
Weight	1.1 kg

• PCR electrophoresis: comb 27 wells,4 rows, 108 samples along with maker
• Multi-specification gel tray: 30×130 mm; 130×65 mm; 65×130 mm; 65×65 mm
• Comb with 14, 19, 27 wells supports 8 channels and 12 channels sample adding
• Built-in movable e-engine without washer, easy replacement, non-leakage

Horizontal Electrophoresis is used to separate and analyse DNA and RNA fragments in agarose gels for molecular biology research. It is commonly applied in PCR product verification, restriction digestion analysis, genotyping and cloning workflows. Widely used in research labs, educational institutes and genetic studies.
