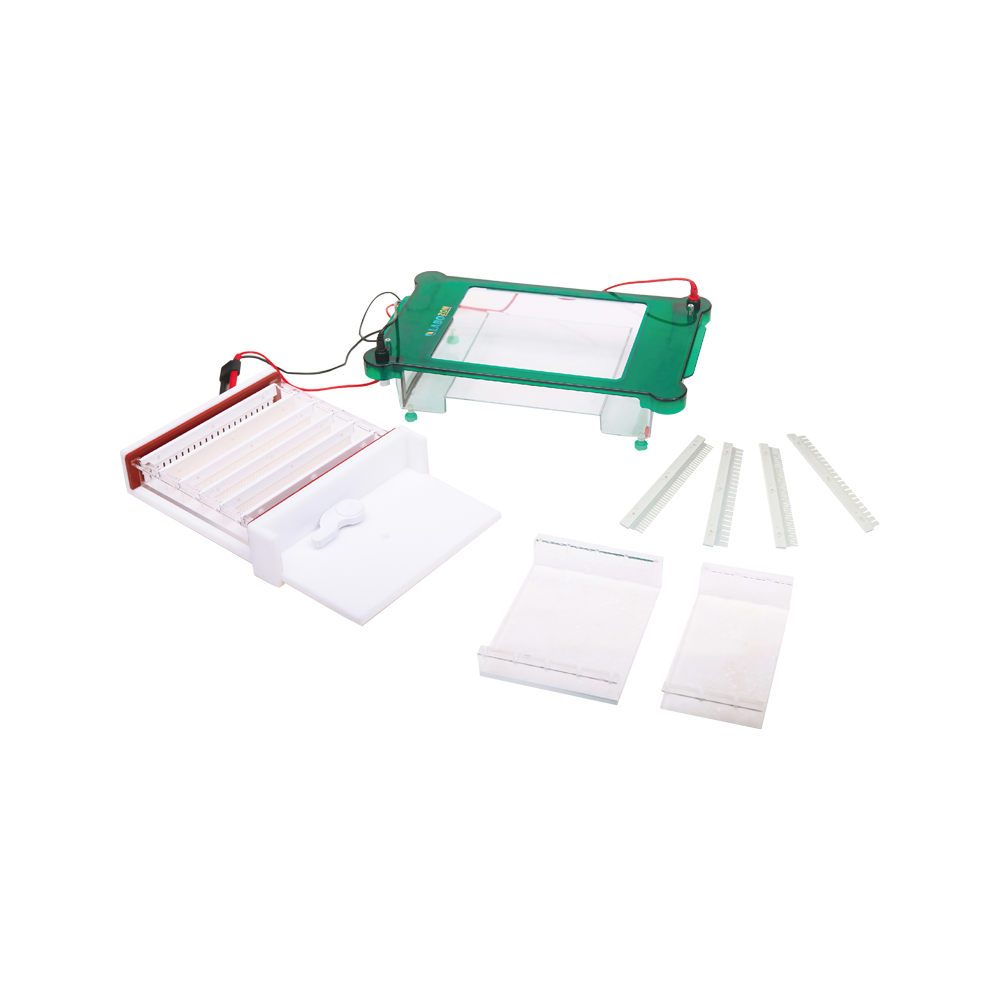

Horizontal Electrophoresis LZ-HES-A400 Catalog

Horizontal Electrophoresis LZ-HES-A400 ideal for PCR electrophoresis with comb capability of 1800ml buffer volume and17 ~104 sample volume. The Horizontal electrophoresis chamber is connected to cathode and anode, which supply electric field and due to DNA and RNA are negatively charged, they migrate from a negative end to a positive end.

Gel Size	200 x 200 mm 200 x 150 mm 200 x 100 mm
No.of Samples	17 -104
Total Buffer Volume	1800 ml
Comb Specification	1.0 mm thickness 17 well comb 1.8 mm thickness 17 well comb 1.0 mm thickness 22 well comb 1.8 mm thickness 22 well comb 1.0 mm thickness 36 well comb 1.8 mm thickness 36 well comb 1.0 mm thickness 44 well comb 1.8 mm thickness 44 well comb
Dimension	397 x 230 x 93 mm
Weight	3.3 kg

• Sufficient buffer space to provide reliable heat dissipation and stable pH value
• Easily removable electrodes for maintenance and replacement
• Quick adding of sample, suitable for multi-channel pipettes
• Special gel casting for preventing leakage
• Easy open buttons for quick opening
• Transparent lid prevents buffer volatizing and electricity leakage
• Auto-switch off system in case of lid is removed
• Made of imported high-transparency PC material, one-time injection moulding
• No pretreatment special glue maker
• Suitable for DNA detection and separation, and used to test molecular weight

Horizontal Electrophoresis is used to separate and analyse DNA and RNA fragments in agarose gels for molecular biology research. It is commonly applied in PCR product verification, restriction digestion analysis, genotyping and cloning workflows. Widely used in research labs, educational institutes and genetic studies.
