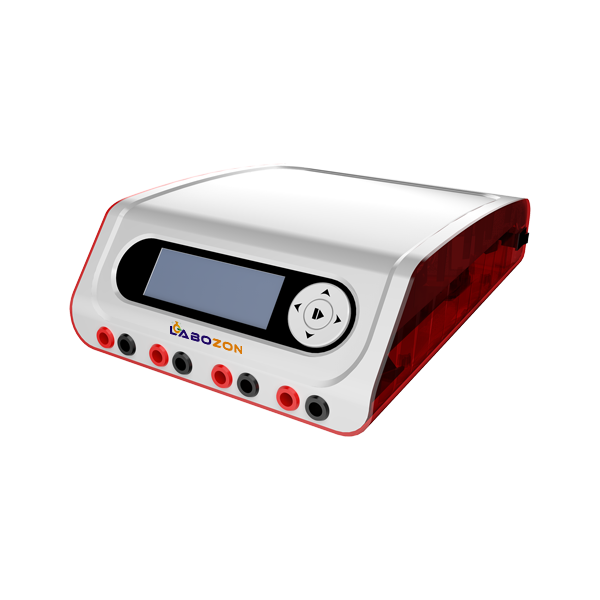

Power Supply Electrophoresis LZ-PES-A160 Catalog

Power Supply Electrophoresis LZ-PES-A160 high technology electrophoresis, available in several versions, suitable instrument for laboratory application. Design with 4-group parallel connection with multi-electrophoresis unit. Equipped with automatic function to monitor for over-voltage, voltaic arc, no load, sudden change of load, overload, and short circuit, assure safety.

Time Set	1min to 99h, 59 min
Display	LCD
Sensitive Limit	Voltage 1V, current: 1mA, power: 1W
Power	1-500 W
Dimension	300×240×100 mm
Power Supply	10-600 V; current:1-1200 mA
Weight	2.5 Kg

• Automatic switch between constant voltage and constant current for output
• Equipped with function to monitor for over-voltage, voltaic arc, no load, sudden change of load, overload, and short circuit, assure safety
• Offer leakage protection, function of pause protection
• Intuitive LCD display for readable voltage, current, time set
• Design with 4-group parallel connection with multi-electrophoresis unit

A power supply for electrophoresis provides stable, adjustable voltage and current to drive the movement of charged biomolecules through the gel matrix for separation. It supports precise control of electrophoretic runs across various research and clinical applications, ensuring consistent and reproducible results.
