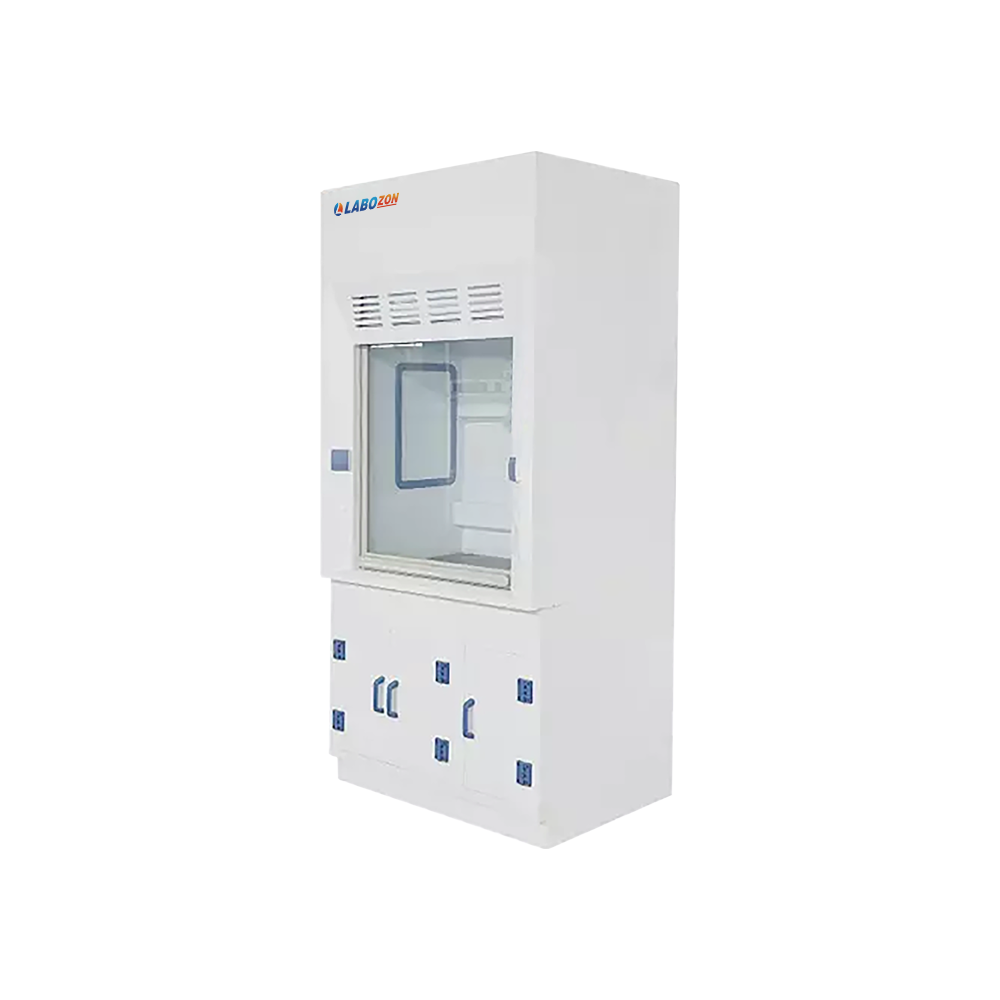

PP Spray Fume Hood LZ-PFH-A110

Overview

PP Spray Fume Hood LZ-PFH-A110 is a floor-standing unit designed specifically for reducing perchloric acid residues, featuring a microprocessor control system and an LED display.Equipped with an innovative spray system lining the deflector, a built-in PP centrifugal blower, 4.3 m PVC exhaust duct located at the top.Its design includes a Manual 5 mm toughened glass adjusting window, waterproof sockets, a water sink, a water tap, a gas tap, exhaust, and a chemical-resistant solid core physical and chemical board work table.Enhanced features include a circulating pump, waterproof socket, remote water-gas control, PP sink, and an LED display for user-friendly operation.

Specifications :

Maximum Opening	740 mm
Air Velocity	0.3 ~0.8 m/s
Work Surface Height	820 mm
Front Window	Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable
Material	Main Body Procelain white PP, thickness 8mm, resistant to strong acid, alkali and anti- corrossion Work Station Solid core physical and chemical board
Exhaust Volume	700 m3 /h
Illumination	≥400lx
Lamp	LED , 24 W
Noise	≤68dB(A)
Display	Digital
Blower	Built-in PP centrifugal blower, speed adjustable, 300W
Water Proof Socket	Two, total load ≤500W
Operators	1 ~ 2
Power Consumption	400 W + 370 W ( pump)
Internal Dimension	987 x 500 x 700 mm
External Dimension	1247 x 800 x 2450 mm
Packing Dimension	Main Body: 1388 x 938 x 1612 mm Base Cabinet: 1388 x 888 x 1000 nm
Gross Weight	268 kgs
Electrical Requirement	220V, 50/60Hz ( Standard) 110V, 60Hz ( Optional)

Features :

• LED display for digital visualization of parameters
• Equipped with microprocessor controller
• Provides excellent resistant function towards strong acid, alkalis
• Made of PP material, integrally welded
• 5mm Toughened glass, height adjustable window
• Deflector with spray system for neutralizing acid gases in exhaust before discharge
• Control panel for managing lighting, circuit system, air volume adjustment
• Circulating water dilution system comprises a circulating pump resistant to both acid and alkali, a water tank, a structure for water inlet and outlet, and a comprehensive circulating water circuit
• Features acid resistant PP sink
• Easy to carry and install
• Easy-access utilities panel for operation and maintenance
• Available with a wide range of options and accessories
• Corrosion resistant interior and exterior

Applications :

PP Spray Fume Hood is used in laboratories to ensure that high concentrations of perchloric acid residues do not accumulate in the fume hood, thereby preventing chemical reactions such as combustion, explosion or a lot of heat.

Accessories :

LED light
Work table: Chemical resistant phenolic resin
PVC duct
Pipe strap *2
Base cabinet
Waterproof socket *2
Water tap (PP)
Gas tap (PP)
Water sink
PP Centrifugal blower
PP work table, epoxy resin board or ceramic board (optional)
UV Lamp(optional)
Electric glass door (optional)
