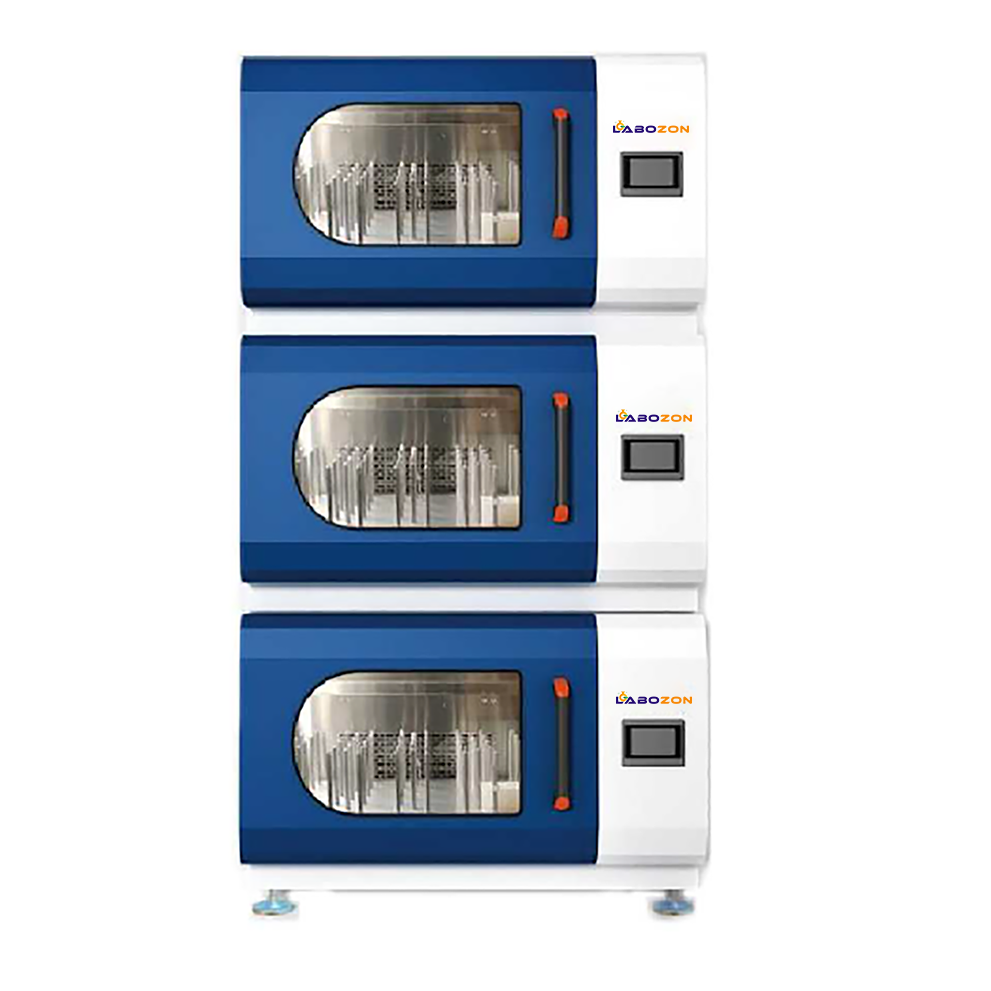

High Speed CO₂ Shaker Incubator LZ-HC1

Overview

LZ-HC1 High Speed CO₂ Incubator Shaker is built to be stacked two to three high on the floor and come in a variety of cabin volumes. These are designed to maintain temperature from 4°C to 60°C, usually have operating timing function 0 to 999.9 hours with oscillating transition band range of 30 to 1000 rpm. They operate with high precision speeds for laboratory high throughput culture.

Specifications :

Control Interface	4.3-inch LCD touch screen
Oscillating Transition Band Range	30 to 1000 rpm
Speed Control Accuracy	1 rpm
Amplitude	3 mm
Temperature Control Mode	PID control mode
Temperature Control Range	4°C to 60°C
Temperature Display Resolution	0.1°C
Temperature Fluctuation	±0.1°C
Temperature Field Uniformity	±0.3°C
Heating Power	550 W
Cooling Power	250 W
Timing Function	0to 999.9 hours
Maximum Carrying Capacity	35 kg
Maximum of 96-well Plate Loaded	32
Cabin Volume	160 L
Illumination	FI lamp tube ; 30W
CO₂ Measurement Principle	IR detection
CO₂ Control Range	0 to 20%
CO₂ Display Resolution	0.001
CO₂ Measurement Accuracy	±1%FS
CO₂ Volatility	0.02%/°C
Volatility of Long-Term Use of CO₂	<1%/2 years
CO₂ Supply	0.05 to 0.1MPa is suggested
Humidity Display	Real time humidity display
Shading Curtain	Built-in push-pull shading curtain
UV Sterilization	Multiple sterilization system
Working Environment Temperature	5°C to 40°C
Power Supply	220-240V/50-60Hz
Bracket Size	510x410 mm
Dimensions	Single layer : 1000x720x615 mm Double layer : 1000x720x1220 mm Three layer : 1000x720x1825 mm
Weight	Single layer 145 kg

Features :

• 4.3-inch LCD touch screen
• Double glass door ensuring heat insulation and safety
• Low noise operation
• Door heating function prevents the glass door from fogging
• Intuitive control and easy to operate
• Built-in push pull type shading curtain
• Smart phone remote monitoring function
• Real-time view of running status of the machine
• Multiple sterilization system
• Odor free adhesive plate material and environmental safety
• Frosted stainless steel arc angle integrated cavity
• Easy to clean and maintain
• Integrated fan greatly reduces background heat and saves energy
• Push-pull aluminum alloy shake plate
• Water-proof design of inner cavity for easy cleaning
• Flexible placement mode, super imposed to 3 layers with effective saving of placement space

Applications :

This device is used in fields of Clinical, Science & Research, Microbiology Divisions, Material Technology and other laboratories etc.
